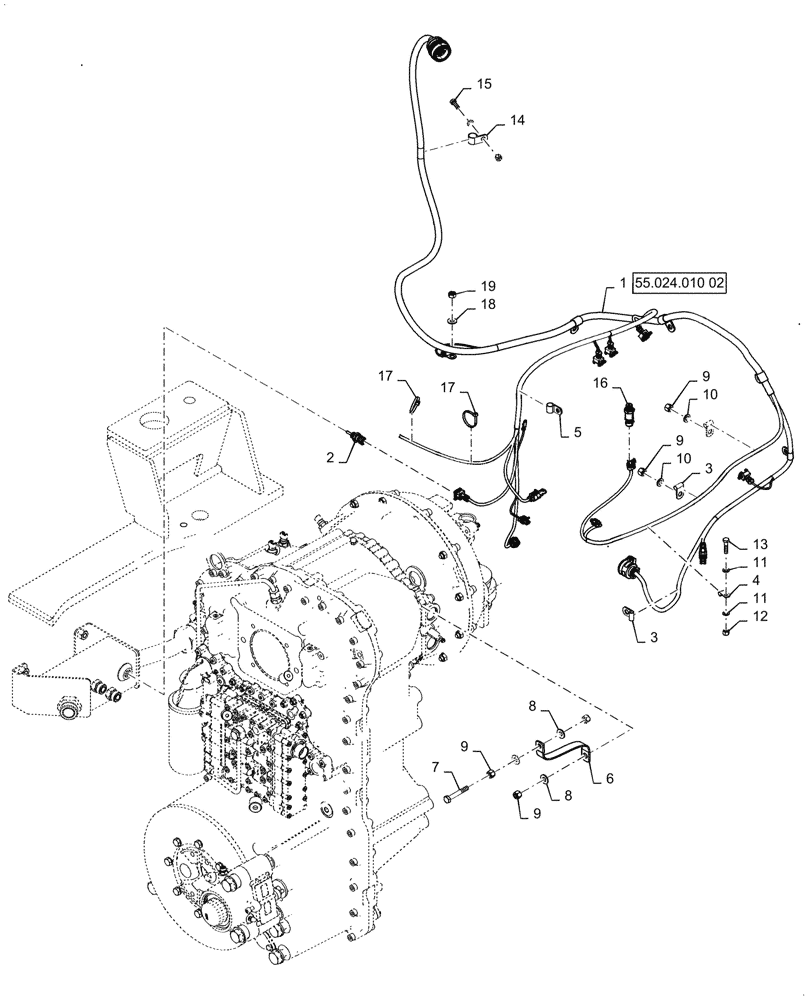

Запчасти Case 721G (55.024.010[01]) - TRANSMISSION HARNESS INSTALLATION (55) - ELECTRICAL SYSTEMS

1

47876406

WIRE HARNESS

Transmission

1шт.

2

84574743

SENSOR

Temperature

1шт.

3

515-2495

CLAMP,3/8", Insul, 7/16" Bolt

2шт.

4

515-2295

CLAMP,3/8", Insul, 5/16" Bolt

1шт.

5

515-23143

CLAMP,9/16", Insul, 3/8" Bolt

1шт.

6

79028421

GROUND CABLE

1шт.

7

627-10065

BOLT,Hex, M10 x 1.5 x 65mm, Cl 10.9, Full Thd

1шт.

8

895-15010

WASHER,11mm ID x 24mm OD x 2mm Thk

3шт.

9

832-10410

NUT,M10 x 1.5, Cl 8

5шт.

10

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

2шт.

11

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

3шт.

12

832-10408

NUT,M8 x 1.25, Cl 8.8

2шт.

13

627-8035

BOLT,Hex, M8 x 1.25 x 35mm, Cl 10.9, Full Thd

1шт.

14

515-23190

CLAMP,3/4", Insul, 3/8" Bolt

1шт.

15

627-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd

1шт.

16

84409605

SENSOR

Pressure

2шт.

17

L11541

CABLE TIE,203.2mm L, Nylon

7шт.

18

L127554

WASHER,0.395" ID x 0.875" OD x 0.064" Thk

1шт.

19

253347A1

NUT,Hex, M10 x 1.5

1шт.
