Запчасти Case 721G (41.216.010[01]) - STEERING CYLINDER, MOUNTING (41) - STEERING

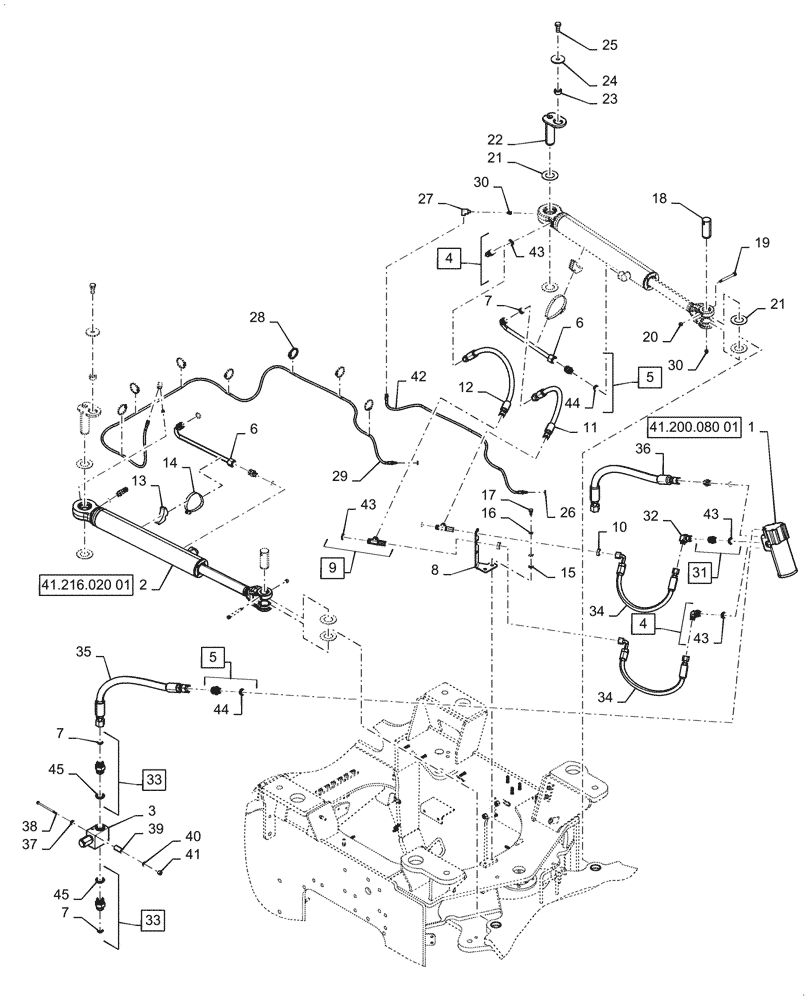

Схема запчастей Case 721G - (41.216.010[01]) - STEERING CYLINDER, MOUNTING (41) - STEERING
41.200.080 01
18
45
35
8
6
30
34
19
4
20
17
43
13
38
11
22
5
34
37
1
7
33
16
23
24
3
15
36
7
5
28
25
26
30
40
42
45
4
33
44
29
6
6
2
44
7
21
21
43
39
12
10
31
9
43
14
41
32
27
43
41.216.020 01

Артикул

Название

Примечание

Количество

1

87371383

VALVE

Orbitrol

1шт.

2

87452362

STEERING CYLINDER

Assy, Gray

2шт.

3

87427823

VALVE PRESSURE RELIE

1шт.

4

700-305

ELBOW,90 Degree Elbow, 13/16" - 16 Male ORFS x M18 x 1.5 Male ORB

Incl 43

3шт.

5

700-115

HYD CONNECTOR,1" - 14 Male ORFS x M18 x 1.5 Male ORB

Incl 44

3шт.

6

8602591

HYD TUBE

Steering Cylinder, 423mm L

2шт.

7

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

4шт.

8

47728697

BRACKET

Bulkhead

1шт.

9

701-423

TEE,13/16" - 16 Male ORFS x 13/16" - 16 Male ORFS x 13/16" - 16 Male ORFS

Incl 43

2шт.

10

701-903

NUT,13/16" - 16

2шт.

11

47880260

HOSE

LH Side Rod, 665mm L

1шт.

12

8500460

FLEXIBLE HOSE

LH Side Base, 872mm L

1шт.

13

8500483

BLOCK

Tube Mounting

2шт.

14

214-1472

HOSE CLAMP,#72, 4.06" - 5", Type F Worm

2шт.

15

896-11010

WASHER,11mm ID x 21mm OD x 2.5mm Thk

4шт.

16

892-11010

LOCK WASHER,M10

2шт.

17

627-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 10.9, Full Thd

2шт.

18

87559561

PIN,40mm OD x 95.1mm L

2шт.

19

87308853

HEX SOC SCREW,M8 x 96.4mm, Cl 12.9

2шт.

20

832-10408

NUT,M8 x 1.25, Cl 8.8

2шт.

21

8501088

WASHER,41mm ID x 76mm OD x 1.59mm Thk

8шт.

22

87351646

PIN,39.96mm OD x 141mm L

2шт.

23

L125100

SPACER,17.48mm ID x 31.75mm OD x 14.3mm Thk

2шт.

24

496-81025

WASHER,21/32" x 2 1/2" x .188", HDN

2шт.

25

627-16035

BOLT,Hex, M16 x 2 x 35mm, Cl 10.9, Full Thd

2шт.

26

F53473

LOCK NUT,1/8-27 NPSM

2шт.

27

328082A1

ELBOW

90°

2шт.

28

L11541

CABLE TIE,203.2mm L, Nylon

7шт.

29

318013A1

FLEXIBLE HOSE,4.8mm ID x 2723mm L

Grease

1шт.

30

219-1

LUBE NIPPLE,1/8" - 27 NPTF

2шт.

31

700-102

HYD CONNECTOR,13/16" - 16 Male ORFS x M18 x 1.5 Male ORB

Incl 43

2шт.

32

701-320

ELBOW,90 Degree Elbow, 13/16" - 16 Male ORFS x 13/16" - 16 Female ORFS

1шт.

33

86597760

HYD CONNECTOR,1"-14 ORFS x M2 x 2.0 ORB

Incl 7, 45

2шт.

34

47870849

HOSE

Steering Cylinder

2шт.

35

47725897

HOSE

Steering Return

1шт.

36

47731156

HOSE

Steering Supply

1шт.

37

896-11006

WASHER,6.6mm ID x 12.5mm OD x 2mm Thk

2шт.

38

827-6100

BOLT,Hex, M6 x 100mm, Cl 10.9

2шт.

39

87563044

SPACER,8mm ID x 16mm OD x 35mm L

2шт.

40

895-25006

WASHER,6.6mm ID x 18mm OD x 1.6mm Thk

2шт.

41

832-10406

NUT,M6 x 1, Cl 8

2шт.

42

L54694

HOSE,4.8mm ID x 1041mm L

Grease

1шт.

43

70923841

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

6шт.

44

14437985

O-RING,15.3mm ID x 2.4mm

1шт.

45

86598103

O-RING,2.9mm Thk x 23.6mm ID, Cl 6, 90 Duro

2шт.

Выбрано товаров: 45
