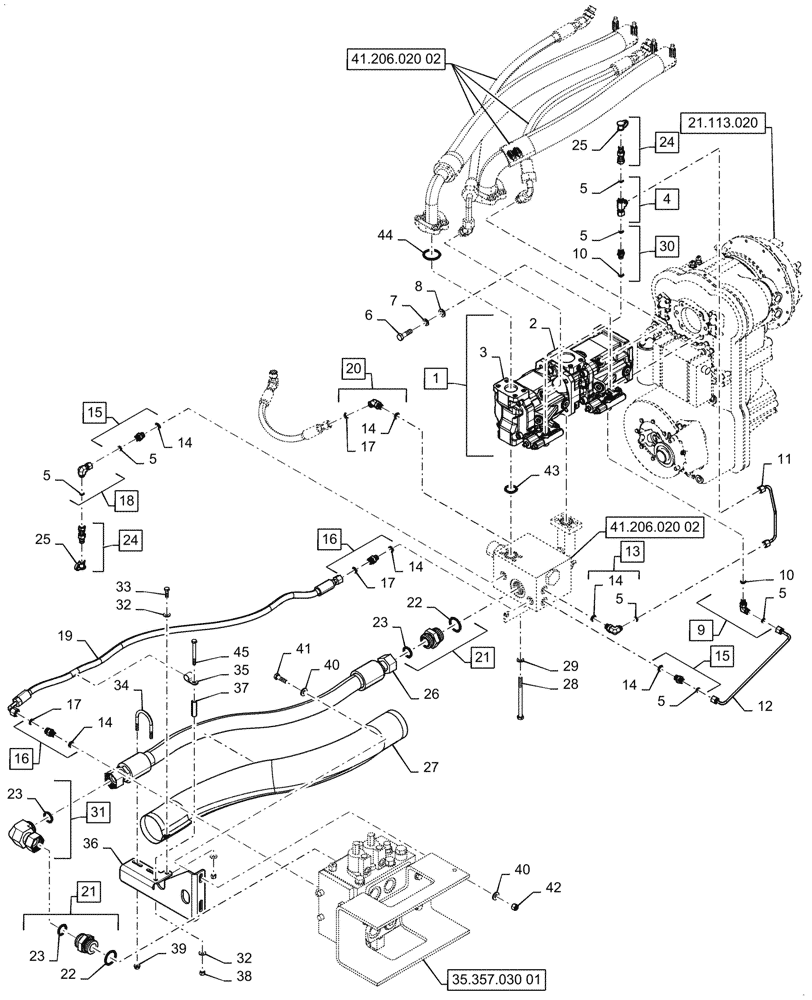

Запчасти Case 721G (41.206.020[01]) - PRIORITY PUMP INSTALLATION (41) - STEERING

1

47773406

HYDRAULIC PUMP

Assy, Main, Incl 2, 3

1шт.

2

47777724

HYDRAULIC PUMP

Front Section

1шт.

3

47777725

HYDRAULIC PUMP

Rear Section

1шт.

4

701-421

TEE,9/16" - 18 Male ORFS x 9/16" - 18 Male ORFS x 9/16" - 18 Female ORFS

Incl 5

1шт.

5

238-6011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

6шт.

6

627-12040

BOLT,Hex, M12 x 1.75 x 40mm, Cl 10.9, Full Thd

4шт.

7

892-11012

LOCK WASHER,M12

4шт.

8

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

4шт.

9

700-303

ELBOW,90 Degree Elbow, 9/16" - 18 Male ORFS x M12 x 1.5 Male ORB

Incl 5, 10

1шт.

10

637-63093

O-RING,2.2mm Thk x 9.3mm ID, Cl 6, 90 Duro

2шт.

11

87634219

HYD TUBE,0.25" OD

Front Pump, Left Side, Plated

1шт.

12

87367945

HYD TUBE,6.35 mm OD x 300 mm L

Rear Pump, Left Side, Plated

1шт.

13

700-378

ELBOW,90 Degree Elbow, 9/16" - 18 Male ORFS x M14 x 1.5 Male ORB

Incl 5, 14

1шт.

14

637-63113

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

5шт.

15

700-153

HYD CONNECTOR,9/16" - 18 Male ORFS x M14 x 1.5 Male ORB

Incl 5, 14

1шт.

16

700-101

HYD CONNECTOR,11/16" - 16 Male ORFS x M14 x 1.5 Male ORB

Incl 14, 17

2шт.

17

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

3шт.

18

701-329

ELBOW,90 Degree Elbow, 9/16" - 18 Male ORFS x 9/16" - 18 Female ORFS

Incl 5

1шт.

19

47829664

HOSE

Articulation Load Sense, 1250mm L

1шт.

20

700-315

ELBOW,45 Degree Elbow, 11/16" - 16 Male ORFS x M14 x 1.5 Male ORB

Incl 14, 17

1шт.

21

700-133

HYD CONNECTOR,1-11/16" - 12 Male ORFS x M42 x 2 Male ORB

Incl 22, 23

2шт.

22

637-64386

O-RING,2.9mm Thk x 38.6mm ID, Cl 6, 90 Duro

2шт.

23

238-6025

O-RING,0.07" Thk x 1.176" ID, -25, Cl 6, 90 Duro

3шт.

24

190117A1

COUPLING

Diagnostic, Incl 25

2шт.

25

H434163

DUST CAP

2шт.

26

47821981

HOSE

Articulation Pressure, 1003mm L

1шт.

27

47861308

SLEEVE

Steering Priority

1шт.

29

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

4шт.

28

827-10140

BOLT,Hex, M10 x 1.5 x 140mm, Cl 10.9

4шт.

30

700-100

HYD CONNECTOR,9/16" - 18 Male ORFS x M12 x 1.5 Male ORB

Incl 5, 10

1шт.

31

701-359

ELBOW,90 Degree Elbow, 1-11/16" - 12 Male ORFS x 1-11/16" - 12 Female ORFS

Incl 23

1шт.

32

895-15008

WASHER,9mm ID x 20mm OD x 1.6mm Thk

3шт.

33

627-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd

2шт.

34

379846A1

U-BOLT,M8 x 1.25, Round, 58.7mm W, 78mm L

1шт.

35

515-23190

CLAMP,3/4", Insul, 3/8" Bolt

1шт.

36

47938487

BRACKET

Pressure Hoses

1шт.

37

87302564

SPACER,9.2mm ID x 13.7mm OD x 50.8mm L

1шт.

38

832-10408

NUT,M8 x 1.25, Cl 8.8

3шт.

39

825-2408

FLANGE NUT,M8 x 1.25, Flg, Cl 8

2шт.

40

896-15010

WASHER,11mm ID x 24mm OD x 3mm Thk

4шт.

41

627-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 10.9, Full Thd

2шт.

42

832-10410

NUT,M10 x 1.5, Cl 8

2шт.

43

238-6219

O-RING,0.139" Thk x 1.296" ID, -219, Cl 6, 90 Duro

1шт.

44

238-6225

O-RING,0.139" Thk x 1.859" ID, -225, Cl 6, 90 Duro

1шт.

45

827-8080

BOLT,Hex, M8 x 1.25 x 80mm, Cl 10.9

1шт.
