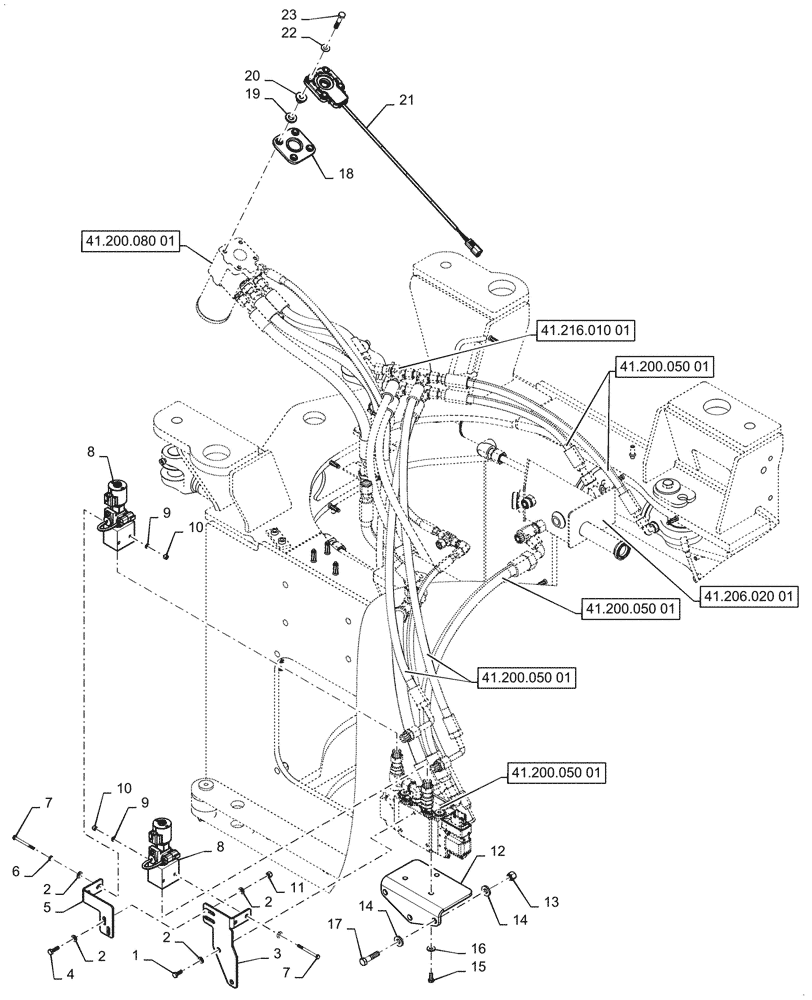

Запчасти Case 721G (41.200.050[02]) - VAR - 482930 - STANDARD , STEERING - W/ JOYSTICK (41) - STEERING

1

627-8020

BOLT,Hex, M8 x 1.25 x 20mm, Cl 10.9, Full Thd

2шт.

2

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

8шт.

3

47908765

BRACKET

Valve Mount

1шт.

4

627-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd

2шт.

5

47908767

BRACKET

Valve Mount Adjust

1шт.

6

896-11006

WASHER,6.6mm ID x 12.5mm OD x 2mm Thk

4шт.

7

827-6070

BOLT,Hex, M6 x 70mm, Cl 10.9

4шт.

8

47908616

VALVE

Cutoff

2шт.

9

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

4шт.

10

832-10406

NUT,M6 x 1, Cl 8

4шт.

11

832-10408

NUT,M8 x 1.25, Cl 8.8

2шт.

12

47908217

BRACKET

Jss Valve Mount

1шт.

13

832-10412

NUT,M12 x 1.75, Cl 8

3шт.

14

896-15012

WASHER,13.5mm ID x 28mm OD x 4mm Thk

6шт.

15

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

3шт.

16

896-15008

WASHER,9mm ID x 21mm OD x 2.5mm Thk

3шт.

17

827-12050

BOLT,Hex, M12 x 1.75 x 50mm, Cl 10.9

3шт.

18

84553550

ISOLATOR

Orbitrol

1шт.

19

84328905

RUBBER BUSHING,15mm ID x 19.5mm OD x 7.5mm L

4шт.

20

84328904

GUIDE BUSHING,10mm ID x 26mm OD x 18.5mm L

4шт.

21

47786983

SENSOR

Steering Angle

1шт.

22

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

4шт.

23

827-10050

BOLT,Hex, M10 x 1.5 x 50mm, Cl 10.9

4шт.
