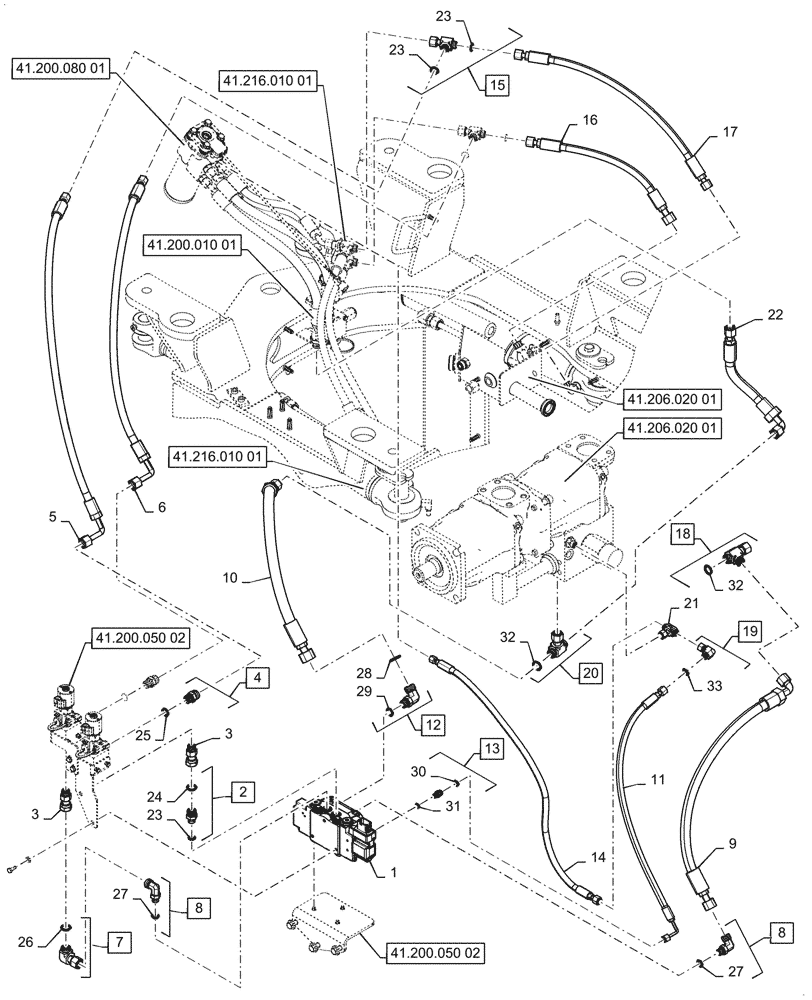

Запчасти Case 721G (41.200.050[01]) - VAR - 482930 - STANDARD, STEERING - W/ JOYSTICK (41) - STEERING

1

47908613

STEERING VALVE

1шт.

2

700-115

HYD CONNECTOR,1" - 14 Male ORFS x M18 x 1.5 Male ORB

Incl 23, 24

1шт.

3

87643583

HYD CONNECTOR,5/8" ORFS x M22 x 1.5 ORFS

2шт.

4

700-103

HYD CONNECTOR,1" - 14 Male ORFS x M22 x 1.5 Male ORB

Incl 25

2шт.

5

47933958

HOSE

to Cylinder, 935mm L

1шт.

6

47933959

HOSE

to Cylinder, 1060mm L

1шт.

7

701-361

ELBOW,90 Degree Elbow, 1" - 14 Male ORFS x 1" - 14 Female ORFS

Incl 26

1шт.

8

700-343

ELBOW,90 Degree Elbow, 1" - 14 Male ORFS x M18 x 1.5 Male ORB

Incl 27

2шт.

9

47922052

HOSE

to Tank, 845mm L

1шт.

10

47933961

HOSE

Suction Valve, 700mm L

1шт.

11

47933960

HOSE

Steering LS, 810mm L

1шт.

12

700-350

ELBOW,90 Degree Elbow, 1-3/16" - 12 Male ORFS x M22 x 1.5 Male ORB

Incl 28, 29

1шт.

13

700-100

HYD CONNECTOR,9/16" - 18 Male ORFS x M12 x 1.5 Male ORB

Incl 30, 31

1шт.

14

47922048

HOSE

Steering LS, 990mm L

1шт.

15

701-416

TEE,13/16" - 16 Male ORFS x 13/16" - 16 Male ORFS x 13/16" - 16 Female ORFS

Incl 23

2шт.

16

87492558

HOSE ASSY.

RH Rod, 500mm L

1шт.

17

87492561

HOSE ASSY.

Steering Cylinder, 690mm L

1шт.

18

701-433

TEE,1" - 14 Male ORFS x 1" - 14 Male ORFS x 1" - 14 Female ORFS

Incl 32

1шт.

19

701-319

ELBOW,90° Elbow, 11/16" - 16 Male ORFS x 11/16" - 16 Female ORFS

Incl 33

1шт.

20

701-439

TEE,1" - 14 Male ORFS x 1" - 14 Male ORFS x 1" - 14 Female ORFS

Incl 32

1шт.

21

47908251

VALVE

Hyd Shuttle Tee

3шт.

22

84123546

HOSE ASSY.

Steering Supply, 367mm L

1шт.

23

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

5шт.

24

86598101

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

1шт.

25

14438085

O-RING,19.3mm ID x 2.4mm

2шт.

26

637-64236

O-RING,2.9mm Thk x 23.6mm ID, Cl 6, 90 Duro

1шт.

27

14437985

O-RING,15.3mm ID x 2.4mm

2шт.

28

86598102

O-RING,2.2mm Thk x 19.3mm ID, Cl 6, 90 Duro

1шт.

29

9991976

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

1шт.

30

86598098

O-RING,2.2mm Thk x 9.3mm ID, Cl 6, 90 Duro

1шт.

31

9825770

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

1шт.

32

9992069

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

2шт.

33

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.
