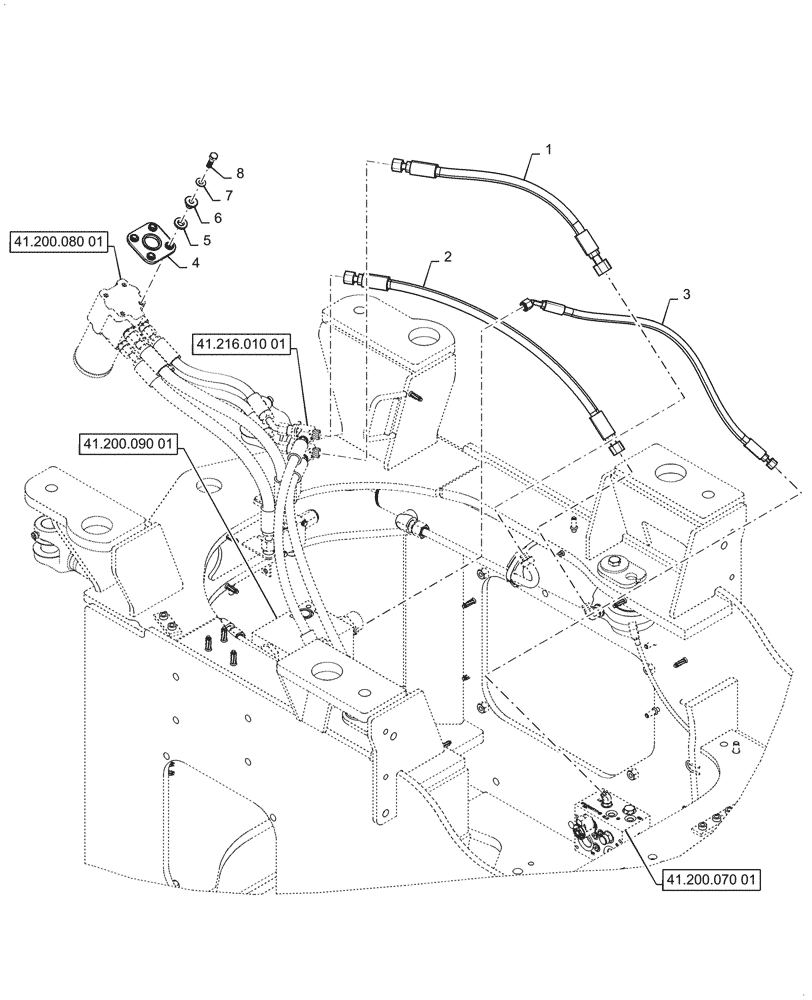

Запчасти Case 721G (41.200.040[01]) - VAR - 782442 - ELECTRIC SYSTEM CONTROL, STEERING - W/O JOYSTICK (41) - STEERING

1

8602590

FLEXIBLE HOSE

Right Side Rod, 555mm L

1шт.

2

87519795

HOSE ASSY.

Steering Cylinder, 752mm L

1шт.

3

48000288

HOSE

Load Sense, 752

1шт.

4

84553550

ISOLATOR

Steering Pump

1шт.

5

84328905

RUBBER BUSHING,15mm ID x 19.5mm OD x 7.5mm L

4шт.

6

84328904

GUIDE BUSHING,10mm ID x 26mm OD x 18.5mm L

4шт.

7

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

4шт.

8

627-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 10.9, Full Thd

4шт.
