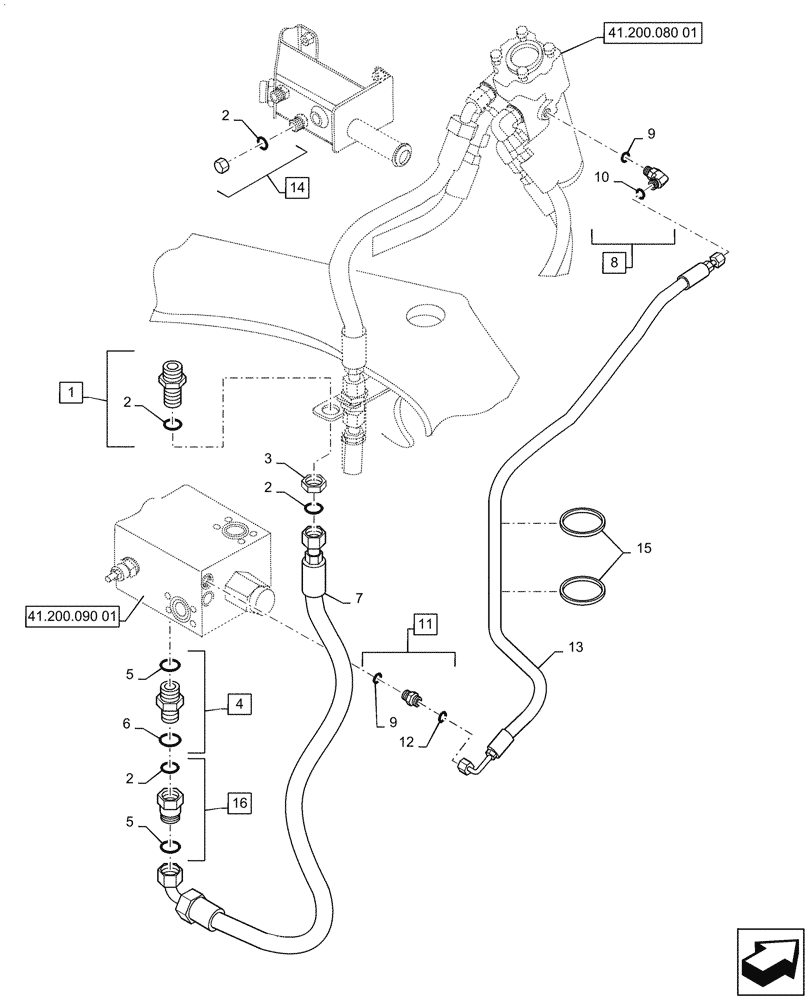

Запчасти Case 721G (41.200.010[01]) - VAR - 782441, 482930 - STANDARD STEERING HYDRAULIC LINES (41) - STEERING

1

701-123

UNION,1" - 14 Male ORFS x 1" - 14 Male ORFS

Incl 2

1шт.

2

9992069

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

Face Seal

3шт.

3

701-919

BHD LOCK NUT,1" - 14

1шт.

4

87534063

CHECK VALVE,1-3/16" - 12 ORFS x M27 x 2 ORB

Incl 5, 6

1шт.

5

9991976

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

Face Seal

2шт.

6

86598103

O-RING,2.9mm Thk x 23.6mm ID, Cl 6, 90 Duro

Boss Seal

1шт.

7

87372968

HOSE ASSY.

Steering Supply, 597mm (23-1/2 in)

1шт.

8

700-303

ELBOW,90 Degree Elbow, 9/16" - 18 Male ORFS x M12 x 1.5 Male ORB

Incl 9, 10

1шт.

9

9825770

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

Face Seal

2шт.

10

86598098

O-RING,2.2mm Thk x 9.3mm ID, Cl 6, 90 Duro

Boss Seal

1шт.

11

700-153

HYD CONNECTOR,9/16" - 18 Male ORFS x M14 x 1.5 Male ORB

Incl 9, 12

1шт.

12

86639042

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

1шт.

13

87519797

HOSE ASSY.

988mm (39in), Steering Load Sense

1шт.

14

9840576

CAP,1" - 14 ORFS

Incl 2

1шт.

15

L11541

CABLE TIE,203.2mm L, Nylon

2шт.

16

84989617

HYD CONNECTOR,1"-14 ORFS x 1-3/16"-12 Fem ORFS

Incl 2, 5

1шт.
