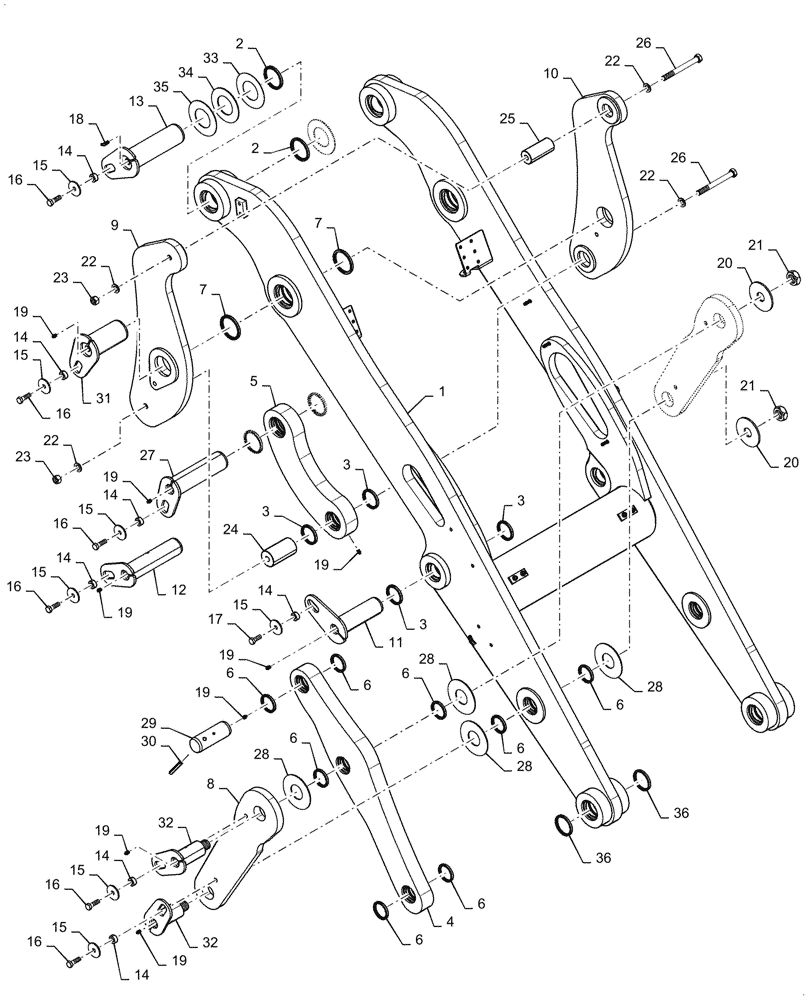

Запчасти Case 721G (39.105.020[02]) - LIFT ARM INSTALLATION, XT (39) - FRAMES AND BALLASTING

1

47899196

LIFT ARM

1шт.

2

365523A1

WIPER SEAL

82.55mm ID x 98.45mm OD x 9.77mm Thk

4шт.

3

D95147

WIPER SEAL,69.8mm ID x 82.58mm OD x 7.92mm Thk

8шт.

4

87433782

LINKAGE

Dump

2шт.

5

87453639

LINKAGE

Anchor

2шт.

6

D95146

WIPER SEAL,63.4mm ID x 76.22mm OD x 7.92mm Thk

16шт.

7

S92653

WIPER

4шт.

8

87433778

LINKAGE

Guide

4шт.

9

87342853

LINKAGE

Bellcrank, RH

2шт.

10

87342849

LINK

Bellcrank, LH

2шт.

11

87428068

PIN,69.85mm OD x 230mm L

2шт.

12

87428064

PIN,69.85mm OD x 290.5mm L

1шт.

13

87397415

HEADED PIN

82.5mm OD x 281mm L

1шт.

14

L125100

SPACER,17.48mm ID x 31.75mm OD x 14.3mm Thk

14шт.

15

496-81025

WASHER,21/32" x 2 1/2" x .188", HDN

14шт.

16

627-16050

BOLT,Hex, M16 x 2 x 50mm, Cl 10.9, Full Thd

12шт.

17

627-16040

BOLT,Hex, M16 x 2 x 40mm, Cl 10.9, Full Thd

2шт.

18

219-41

LUBE NIPPLE,65 Degree Elbow, 1/8" - 27 NPTF

1шт.

19

219-1

LUBE NIPPLE,1/8" - 27 NPTF

17шт.

20

117025A1

WASHER,40mm ID x 127mm OD x 6.35mm Thk

4шт.

21

131-53

NUT,1 1/2"-12

4шт.

22

896-11020

WASHER,22mm ID x 37mm OD x 4mm Thk

8шт.

23

829-1420

NUT,M20, Cl 10

4шт.

24

8500311

PIN,69.85mm OD x 130.65mm L

Bell Crank, Anchor SIde

2шт.

25

368775A1

PIN

Bell Crank, Cylinder Side

2шт.

26

827-20190

BOLT,Hex, M20 x 2.5 x 190mm, Cl 10.9

4шт.

27

87428060

PIN,76.2mm OD x 290.5mm L

1шт.

28

116893A1

WASHER,65mm ID x 152mm OD x 3.5mm Thk

8шт.

29

87437183

PIN

Tilt Cylinder

2шт.

30

38-33264

PIN,12.7mm OD x 101.6mm L, Coiled

2шт.

31

87437159

HEADED PIN

Bell Crank

2шт.

32

87437223

HEADED PIN

Link

4шт.

33

L118834

WASHER,83.8mm ID x 152mm OD x 3.7mm Thk

4шт.

34

441824A1

WASHER

839.mm ID

2шт.

35

441823A1

WASHER

83.9mm ID

2шт.

36

D95148

WIPER SEAL

76.2mm

8шт.
