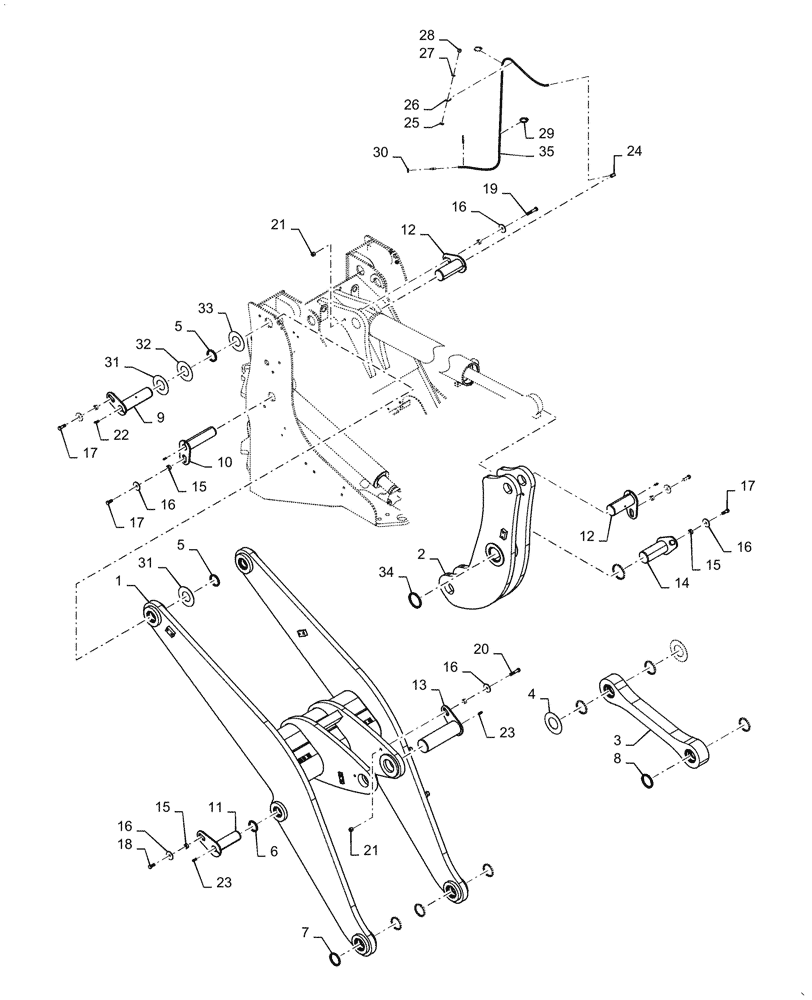

Запчасти Case 721G (39.105.010[01]) - LIFT ARM INSTALLATION, Z-BAR (39) - FRAMES AND BALLASTING

1

47747700

LIFT ARM

Lift Arm, Case

1шт.

1

47747701

Lift Arm, NH

1шт.

2

47748016

BELLCRANK

1шт.

3

87315492

LINK CONROD

Dump

1шт.

4

442157A1

WASHER

2шт.

5

D95148

WIPER SEAL

4шт.

6

D95147

WIPER SEAL,69.8mm ID x 82.58mm OD x 7.92mm Thk

4шт.

7

365523A1

WIPER SEAL

82.55mm ID x 98.45mm OD x 9.77mm Thk

4шт.

8

S92653

WIPER

4шт.

9

87428060

PIN,76.2mm OD x 290.5mm L

2шт.

10

87428064

PIN,69.85mm OD x 290.5mm L

2шт.

11

87428068

PIN,69.85mm OD x 230mm L

2шт.

12

87426758

PIN

82.5mm OD x 202mm L

2шт.

13

87428072

PIN,101.6mm OD x 336mm L

1шт.

14

87426761

PIN

88.9mm OD x 202mm L

1шт.

15

L125100

SPACER,17.48mm ID x 31.75mm OD x 14.3mm Thk

10шт.

16

496-81025

WASHER,21/32" x 2 1/2" x .188", HDN

10шт.

17

627-16050

BOLT,Hex, M16 x 2 x 50mm, Cl 10.9, Full Thd

6шт.

18

627-16040

BOLT,Hex, M16 x 2 x 40mm, Cl 10.9, Full Thd

2шт.

19

827-16090

BOLT,Hex, M16 x 2 x 90mm, Cl 10.9

1шт.

20

827-16080

BOLT,Hex, M16 x 2 x 80mm, Cl 10.9

1шт.

21

832-10416

NUT,M16 x 2, Cl 8

2шт.

22

219-41

LUBE NIPPLE,65 Degree Elbow, 1/8" - 27 NPTF

1шт.

23

219-1

LUBE NIPPLE,1/8" - 27 NPTF

8шт.

24

328082A1

ELBOW

90°

1шт.

25

896-15012

WASHER,13.5mm ID x 28mm OD x 4mm Thk

1шт.

26

515-2495

CLAMP,3/8", Insul, 7/16" Bolt

1шт.

27

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

1шт.

28

832-10410

NUT,M10 x 1.5, Cl 8

1шт.

29

L11541

CABLE TIE,203.2mm L, Nylon

3шт.

30

F53473

LOCK NUT,1/8-27 NPSM

1шт.

31

375518A1

WASHER,77.6mm ID x 155mm OD x 3.5mm Thk

4шт.

32

L127108

WASHER,77.5mm ID x 152mm OD x 2.5mm Thk

2шт.

33

441822A1

WASHER

77.6mm ID x 155mm OD x 1.6mm Thk

2шт.

34

S108245

WIPER SEAL

99.52mm ID x 117.68mm OD x 8.31mm Thk

2шт.

35

318012A1

FLEXIBLE HOSE

1785mm L

1шт.
