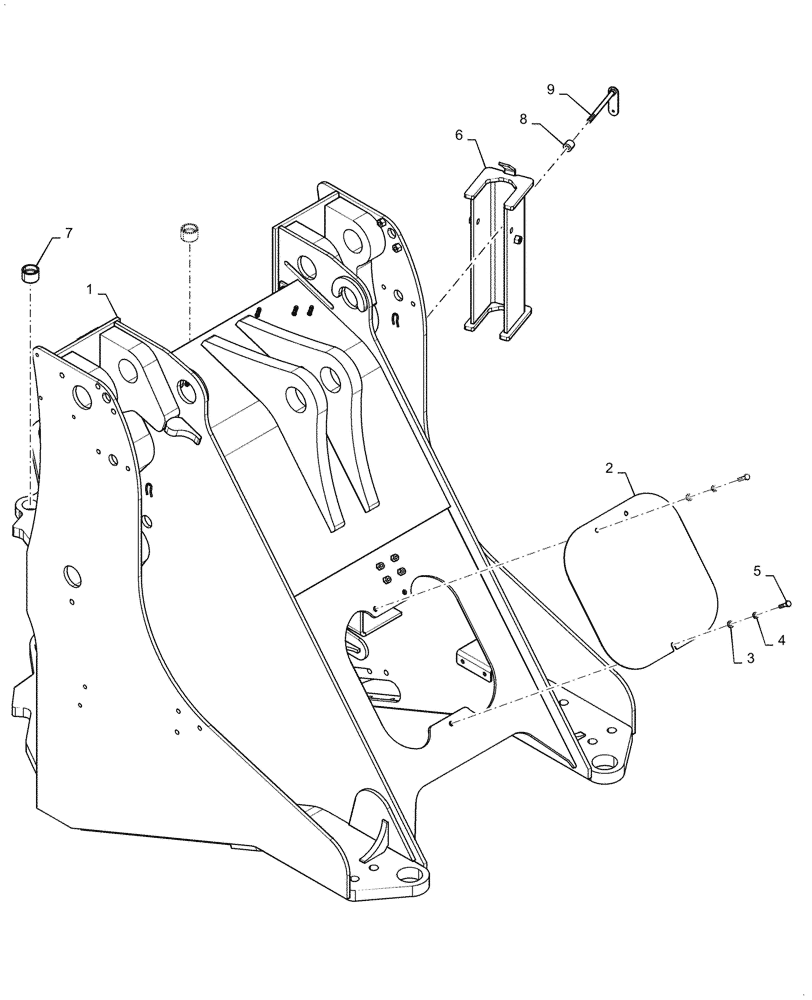

Запчасти Case 721G (39.100.130) - FRONT FRAME INSTALLATION, Z-BAR / XR (39) - FRAMES AND BALLASTING

1

47900985

FRAME

Chassis, Front, Z-Bar

1шт.

1

47715966

FRAME

Chassis, Front, Z-Bar, NH

1шт.

2

47404545

COVER

Valve

1шт.

3

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

3шт.

4

892-11010

LOCK WASHER,M10

3шт.

5

827-10040

BOLT,Hex, M10 x 1.5 x 40mm, Cl 10.9, Full Thd

3шт.

6

84424925

CHANNEL

W/ Linkage Support

1шт.

7

8500173

BUSHING,40.22mm ID x 49.87mm OD x 32mm L

2шт.

8

8500877

SPACER,12.8mm ID x 25.4mm OD x 23mm L

1шт.

9

84304606

HANDLE

W/ Linkage Channel

1шт.
