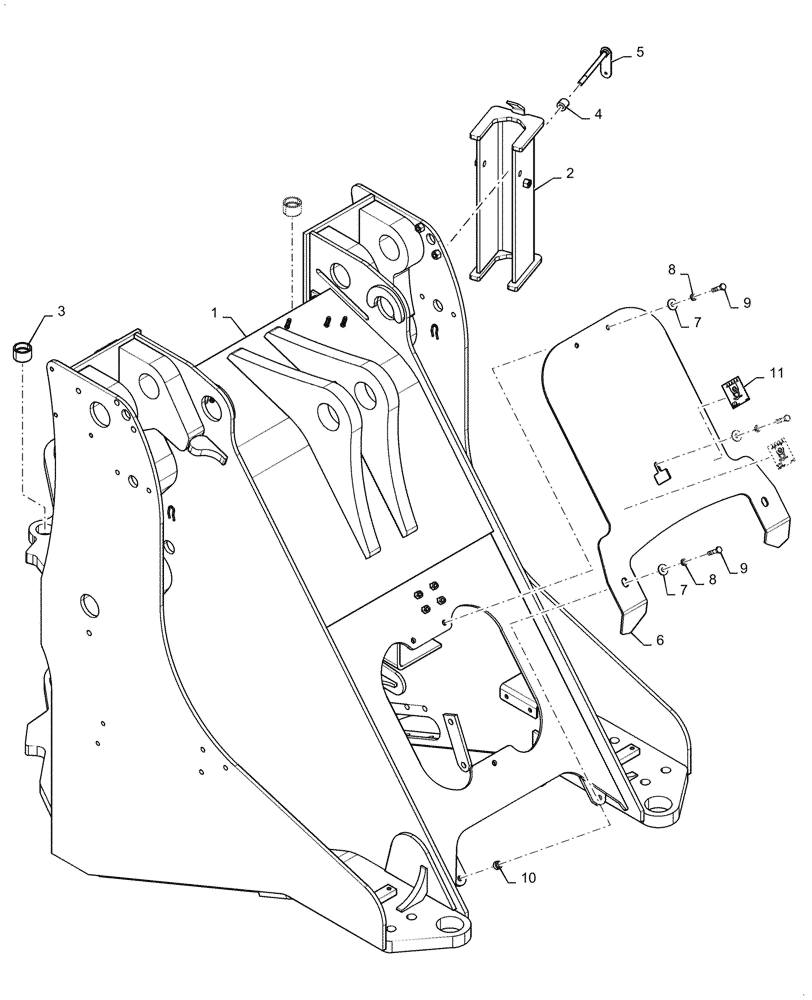

Запчасти Case 721G (39.100.130) - FRONT FRAME INSTALLATION, WH, Z-BAR / XR (39) - FRAMES AND BALLASTING

1

47906984

FRAME

Chassis

1шт.

2

84424925

CHANNEL

W/ Linkage Support

1шт.

3

8500173

BUSHING,40.22mm ID x 49.87mm OD x 32mm L

2шт.

4

8500877

SPACER,12.8mm ID x 25.4mm OD x 23mm L

1шт.

5

84304606

HANDLE

W/ Linkage Channel

1шт.

6

47400160

GUARD

Front Axle

1шт.

7

895-25010

WASHER,11mm ID x 30mm OD x 2.5mm Thk

5шт.

8

892-11010

LOCK WASHER,M10

5шт.

9

827-10045

BOLT,Hex, M10 x 1.5 x 45mm, Cl 10.9

5шт.

10

87302487

SPACER,13.8mm ID x 21.3mm OD x 10.3mm L

2шт.

11

84409663

DECAL

Tie Down

2шт.
