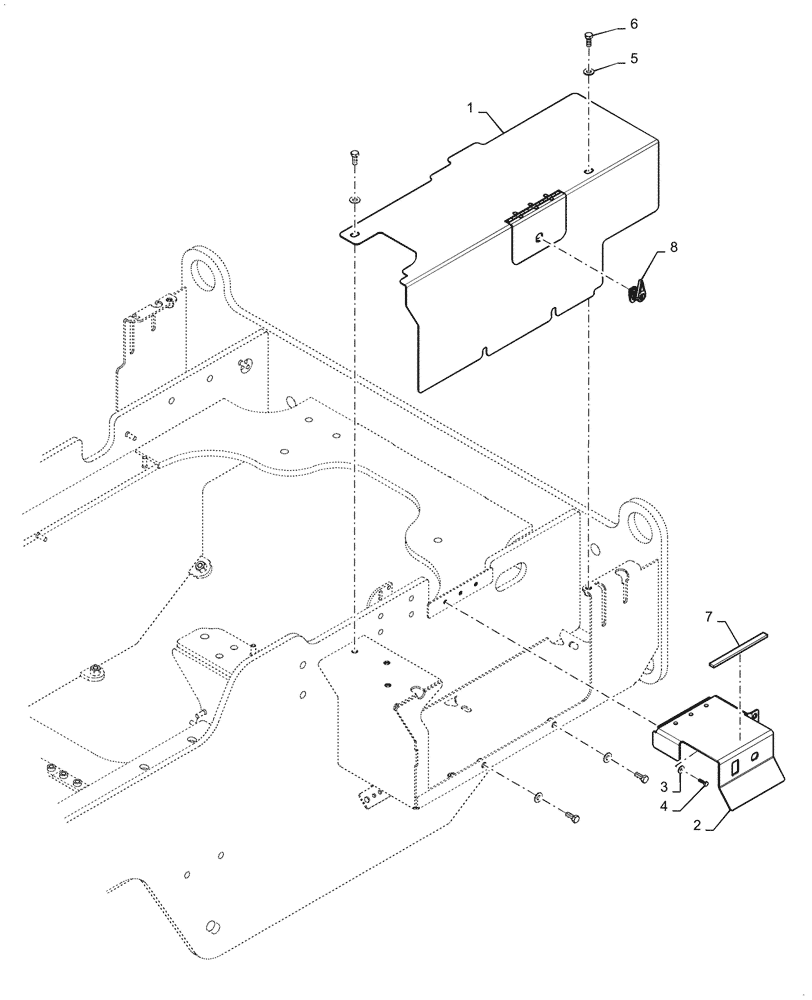

Запчасти Case 721G (39.100.040) - BATTERY CASE COVER (39) - FRAMES AND BALLASTING

1

47906808

COVER ASSY

LH, Battery

1шт.

2

47985209

BRACKET

Hood, Left Switch

1шт.

3

895-25006

WASHER,6.6mm ID x 18mm OD x 1.6mm Thk

3шт.

4

627-6020

BOLT,Hex, M6 x 1 x 20mm, Cl 10.9, Full Thd

3шт.

5

895-15010

WASHER,11mm ID x 24mm OD x 2mm Thk

4шт.

6

627-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

4шт.

7

87591165

SEAL

Switch

1шт.

8

47728889

LOCK

1шт.
