Запчасти Case 721G (39.100.010) - ARTICULATION JOINT (39) - FRAMES AND BALLASTING

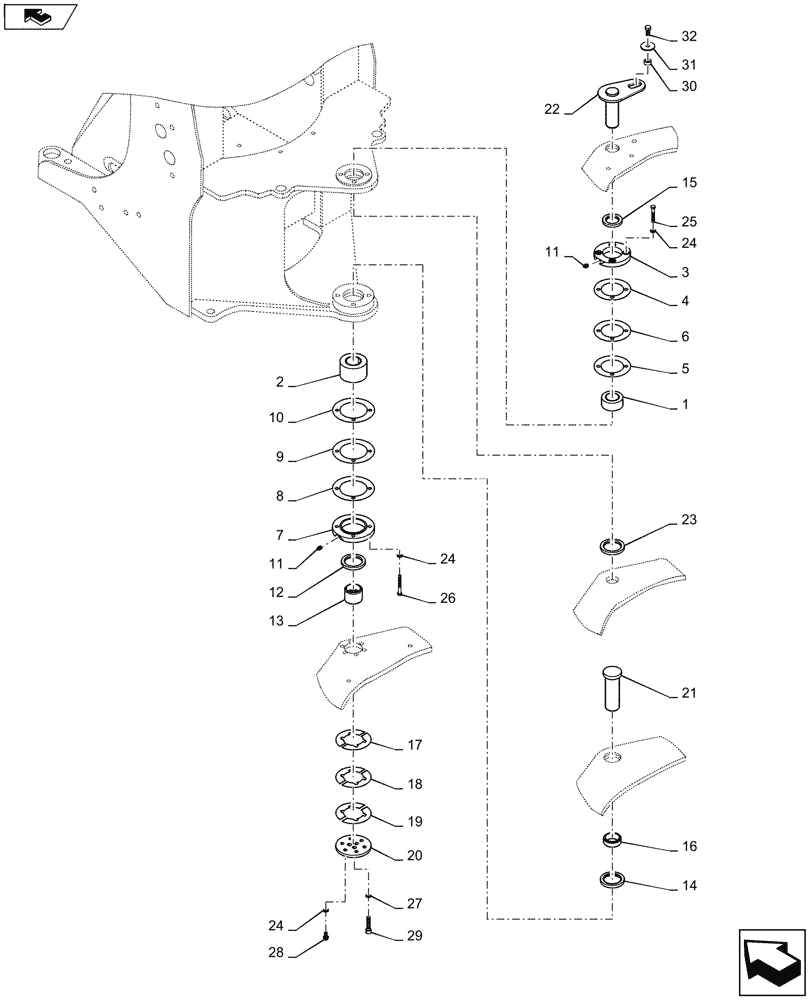

Схема запчастей Case 721G - (39.100.010) - ARTICULATION JOINT (39) - FRAMES AND BALLASTING
9
30
24
29
14
8
16
11
12
23
6
24
26
21
18
3
17
5
4
12
11
2
28
10
1
13
22
32
7
27
15
19
home
20
31
24
25

Артикул

Название

Примечание

Количество

1

391276A1

TAPERED BEARING,57.15mm ID x 96.84mm OD x 42.59mm W

Upper Pivot

1шт.

2

432765A1

TAPERED BEARING,63.5mm ID x 122.24mm OD x 76.61mm W

Lower Pivot

1шт.

3

391280A1

RETAINER

Upper Pivot Bearing

1шт.

4

L118987

SHIM,0.1mm Thk

Lower Pivot

1шт.

5

L118986

SHIM,0.5mm Thk

Lower Pivot

1шт.

6

L119202

SHIM,0.25mm Thk

Lower Pivot

1шт.

7

432909A1

RETAINER

Lower Pivot Bearing

1шт.

8

L119203

SHIM,124mm ID x 190mm OD x 0.28mm Thk

Lower Pivot 0.25mm

1шт.

9

L118989

SHIM,124mm ID x 190mm OD x 0.54mm Thk

Lower Pivot

1шт.

10

L118990

SHIM,124mm ID x 190mm OD x 0.11mm Thk

Lower Pivot

1шт.

11

219-1

LUBE NIPPLE,1/8" - 27 NPTF

2шт.

12

L126168

SEAL,79.38mm ID x 108.05mm OD x 11.89mm Thk

Lower, W/O Excluding Lip

1шт.

13

87623438

SPACER,63.54mm ID x 79.4mm OD x 58.64mm L

Lower Bearing

1шт.

14

L118978

SEAL,79.38mm ID x 108.05mm OD x 12.7mm Thk

Lower, W/ Excluding Lip

1шт.

15

76082983

SEAL,56.9mm ID x 88.9mm OD x 11.12mm Thk

Upper, W/ Excluding Lip

1шт.

16

87623437

SPACER,63.55mm ID x 79.4mm OD x 29.5mm L

Lower Bearing

1шт.

17

L118983

SHIM,90mm ID x 160mm OD x 0.11mm Thk

1шт.

18

L118980

SHIM,90mm ID x 160mm OD x 0.28mm Thk

1шт.

19

L118982

SHIM,90mm ID x 160mm OD x 0.54mm Thk

1шт.

20

84339265

PLATE

Lower Pin ZP

1шт.

21

84339264

PIN

Lower Pivot

1шт.

22

8606124

PIN,57.14mm OD x 170mm L

Upper Pivot

1шт.

23

391278A1

SEAL

W/O Excluding Lip

1шт.

24

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

14шт.

25

827-12080

BOLT,Hex, M12 x 1.75 x 80mm, Cl 10.9

4шт.

26

827-12100

BOLT,Hex, M12 x 1.75 x 100mm, Cl 10.9

4шт.

27

896-11016

WASHER,17.5mm ID x 30mm OD x 4mm Thk

3шт.

28

627-12030

BOLT,Hex, M12 x 1.75 x 30mm, Cl 10.9, Full Thd

6шт.

29

863-16070

HEX SOC SCREW,M16 x 70mm, Cl 12.9

3шт.

30

L125100

SPACER,17.48mm ID x 31.75mm OD x 14.3mm Thk

17.48mm ID x 31.75mm OD x 14.3mm Thk

1шт.

31

496-81025

WASHER,21/32" x 2 1/2" x .188", HDN

1шт.

32

627-16035

BOLT,Hex, M16 x 2 x 35mm, Cl 10.9, Full Thd

1шт.

Выбрано товаров: 32
