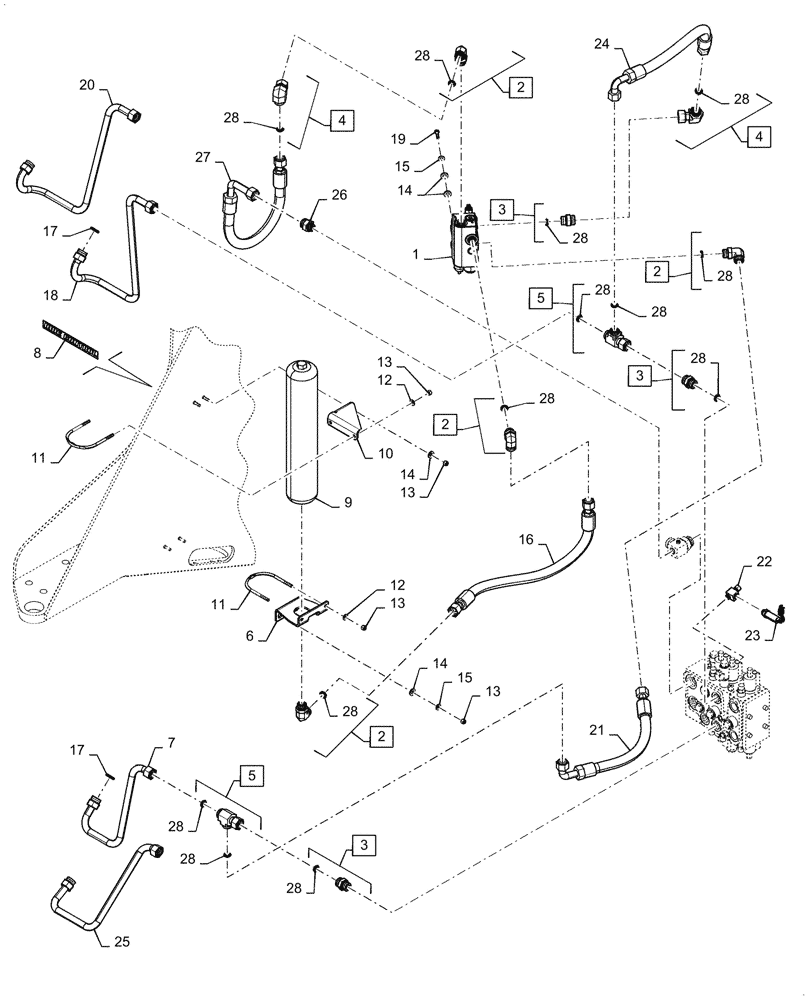

Запчасти Case 721G (35.701.100) - VAR - 782503 - RIDE CONTROL (35) - HYDRAULIC SYSTEMS

1

84494281

HYDRAULIC VALVE

1шт.

2

700-308

ELBOW,90 Degree Elbow, 1-7/16" - 12 Male ORFS x M33 x 2 Male ORB

Incl 28

4шт.

3

700-105

HYD CONNECTOR,1-7/16" - 12 Male ORFS x M33 x 2 Male ORB

Incl 28

3шт.

4

701-339

ELBOW,90 Degree Elbow, 1-7/16" - 12 Male ORFS x 1-7/16" - 16 Female ORFS

Incl 28

2шт.

5

701-418

TEE,1-7/16" - 12 Male ORFS x 1-7/16" - 12 Male ORFS x 1-7/16" - 12 Female ORFS

Incl 28

2шт.

6

87393646

BRACKET

Accumulator

1шт.

7

87307826

HYD TUBE

Lift Base

1шт.

8

84493112

DECAL

Ride Control

1шт.

9

87393434

ACCUMULATOR,3.8L

1шт.

10

87403347

BRACKET

Accumulator

1шт.

11

87492028

U-BOLT

2шт.

12

895-15010

WASHER,11mm ID x 24mm OD x 2mm Thk

4шт.

13

832-10410

NUT,M10 x 1.5, Cl 8

8шт.

14

896-15012

WASHER,13.5mm ID x 28mm OD x 4mm Thk

8шт.

15

896-15010

WASHER,11mm ID x 24mm OD x 3mm Thk

4шт.

16

87442515

FLEXIBLE HOSE

Ride Control Accumulator

1шт.

17

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

2шт.

18

87442545

HYD TUBE,25 mm DIA

Lift Rod, Right

1шт.

19

627-10040

BOLT,Hex, M10 x 1.5 x 40mm, Cl 10.9, Full Thd

2шт.

20

87442547

HYD TUBE,25 mm DIA

Lift Rod, Right

1шт.

21

87442516

FLEXIBLE HOSE

Ride Control Base

1шт.

22

87445673

FITTING

Pressure Switch

1шт.

23

446183A1

PRESSURE SWITCH

Rollback

1шт.

24

87305431

FLEXIBLE HOSE

Ride Control Rod

1шт.

25

87307827

HYD TUBE

Lift Base, Right

1шт.

26

700-166

HYD CONNECTOR,1-7/16" - 12 Male ORFS x M27 x 2 Male ORB

1шт.

27

47960645

HOSE

Lift Base, Right

1шт.

28

70931640

O-RING,0.07" Thk x 0.926" ID, -21, Cl 6, 90 Duro

5шт.
