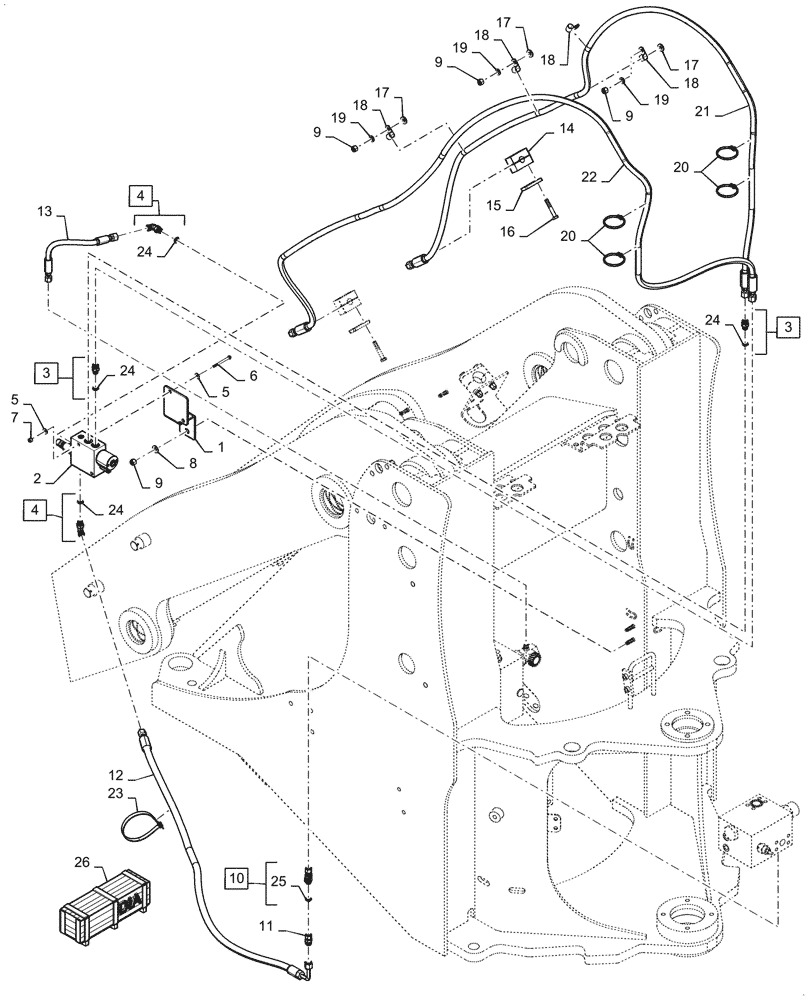

Запчасти Case 721G (35.701.020) - COUPLER LINE INSTALLATION, XT (35) - HYDRAULIC SYSTEMS

1

47874709

BRACKET

Coupler Solenoid

1шт.

2

47955819

SOLENOID VALVE

Valve

1шт.

3

700-101

HYD CONNECTOR,11/16" - 16 Male ORFS x M14 x 1.5 Male ORB

Incl, 24

2шт.

4

700-304

ELBOW,90 Degree Elbow, 11/16" - 16 Male ORFS x M14 x 1.5 Male ORB

Incl, 24

2шт.

5

895-25006

WASHER,6.6mm ID x 18mm OD x 1.6mm Thk

4шт.

6

827-6070

BOLT,Hex, M6 x 70mm, Cl 10.9

2шт.

7

832-10406

NUT,M6 x 1, Cl 8

2шт.

8

895-15010

WASHER,11mm ID x 24mm OD x 2mm Thk

2шт.

9

832-10410

NUT,M10 x 1.5, Cl 8

8шт.

10

701-421

TEE,9/16" - 18 Male ORFS x 9/16" - 18 Male ORFS x 9/16" - 18 Female ORFS

Incl, 25

1шт.

11

47713654

UNION

1шт.

12

47995035

HOSE

Coupler Pressure

1шт.

13

47994589

HOSE

Coupler Return

1шт.

14

379374A1

BLOCK

Tube Mounting

2шт.

15

367658A1

PLATE

2шт.

16

827-10060

BOLT,Hex, M10 x 1.5 x 60mm, Cl 10.9

4шт.

17

896-15010

WASHER,11mm ID x 24mm OD x 3mm Thk

6шт.

18

515-23159

CLAMP,5/8", Insul, 3/8" Bolt

8шт.

19

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

6шт.

20

L11541

CABLE TIE,203.2mm L, Nylon

8шт.

21

87437075

FLEXIBLE HOSE

Coupler

1шт.

22

87437170

FLEXIBLE HOSE

Coupler

1шт.

23

84266050

CABLE TIE,384mm L, Polyamide

1шт.

24

70924048

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

3шт.

25

238-6011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

2шт.

26

47996222

KIT

DIA KIT, Locking Hydraulics, Incl 1 - 25 Inst Sheet 47996261

1шт.
