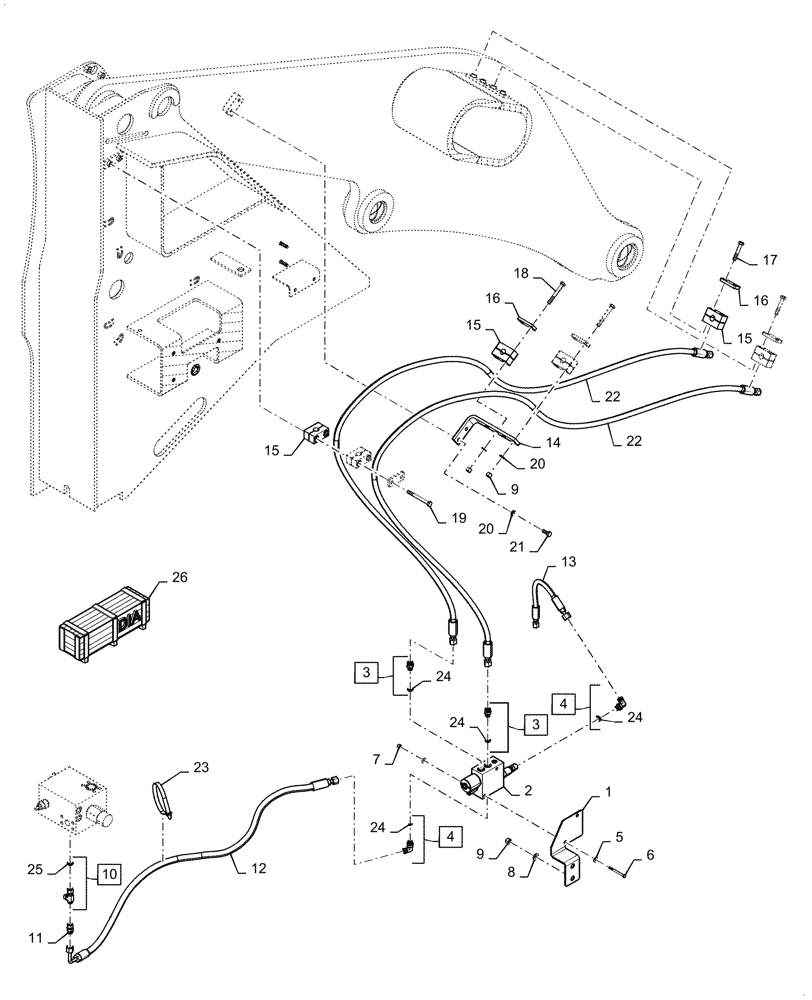

Запчасти Case 721G (35.701.010) - COUPLER LINE INSTALLATION, Z-BAR / XR (35) - HYDRAULIC SYSTEMS

1

48012969

BRACKET

Coupler Solenoid

1шт.

2

47955819

SOLENOID VALVE

Valve

1шт.

3

700-101

HYD CONNECTOR,11/16" - 16 Male ORFS x M14 x 1.5 Male ORB

Incl, 24

2шт.

4

700-304

ELBOW,90 Degree Elbow, 11/16" - 16 Male ORFS x M14 x 1.5 Male ORB

Incl, 24

2шт.

5

895-25006

WASHER,6.6mm ID x 18mm OD x 1.6mm Thk

4шт.

6

827-6070

BOLT,Hex, M6 x 70mm, Cl 10.9

2шт.

7

832-10406

NUT,M6 x 1, Cl 8

2шт.

8

895-15010

WASHER,11mm ID x 24mm OD x 2mm Thk

2шт.

9

832-10410

NUT,M10 x 1.5, Cl 8

6шт.

10

701-421

TEE,9/16" - 18 Male ORFS x 9/16" - 18 Male ORFS x 9/16" - 18 Female ORFS

Incl, 25

1шт.

11

47713654

UNION

1шт.

12

47995035

HOSE

Coupler Pressure, 1220mm L

1шт.

13

47994589

HOSE

Coupler Return, 385mm L

1шт.

14

373040A2

BRACKET

Hose Clamp

1шт.

15

379374A1

BLOCK

Tube Mounting

6шт.

16

367658A1

PLATE

5шт.

17

827-10060

BOLT,Hex, M10 x 1.5 x 60mm, Cl 10.9

4шт.

18

827-10080

BOLT,Hex, M10 x 1.5 x 80mm, Cl 10.9

4шт.

19

827-10100

BOLT,Hex, M10 x 1.5 x 100mm, Cl 10.9

2шт.

20

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

6шт.

21

627-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

2шт.

22

8500731

HOSE ASSY.

Coupler, Z-Bar, 2765mm L

2шт.

22

87694568

HOSE ASSY.

Coupler, XR, 3037mm L

2шт.

23

84266050

CABLE TIE,384mm L, Polyamide

1шт.

24

70924048

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

3шт.

25

238-6011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

2шт.

26

48023192

KIT

DIA KIT, Locking Hydraulics, Z-BAR / XR, Incl 1 - 26 Inst Sheet 47996262

1шт.
