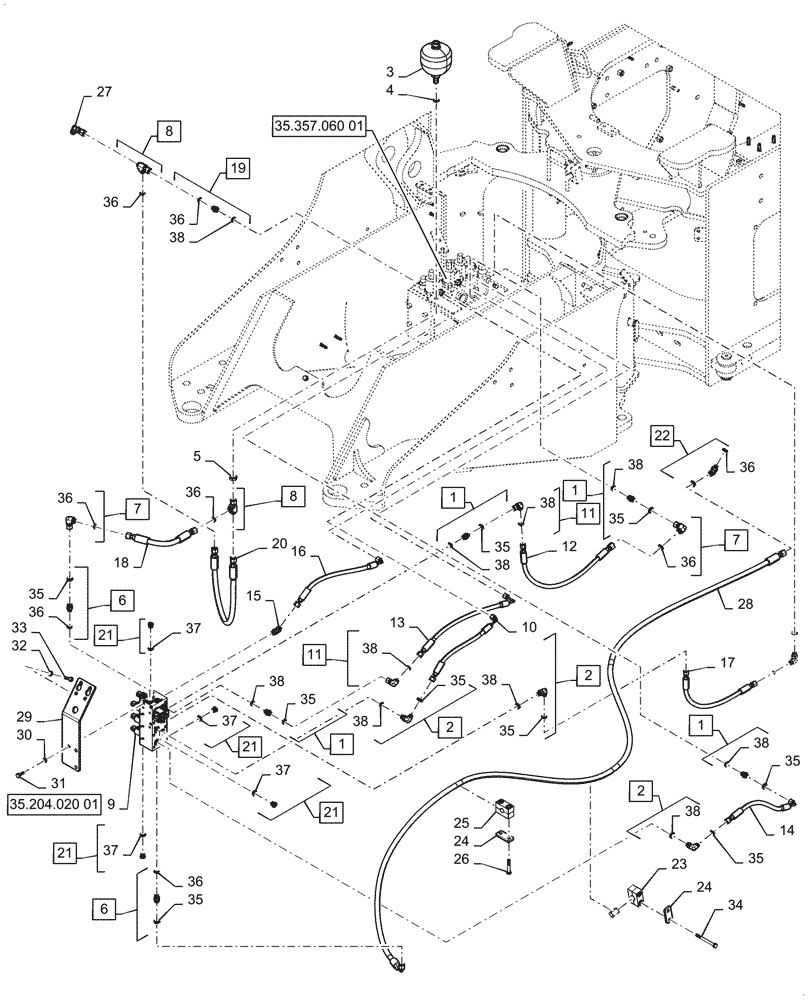

Запчасти Case 721G (35.480.040[01]) - VAR - 734053, 734054 - CONTROL VALVE LINE - 3 SPOOL, EH, XT (35) - HYDRAULIC SYSTEMS

1

700-153

HYD CONNECTOR,9/16" - 18 Male ORFS x M14 x 1.5 Male ORB

Incl 35, 38

6шт.

2

700-378

ELBOW,90 Degree Elbow, 9/16" - 18 Male ORFS x M14 x 1.5 Male ORB

Incl 35, 38

4шт.

3

8501047

ACCUMULATOR

Pilot Supply

1шт.

4

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

5

701-909

NUT,11/16" - 16

1шт.

6

700-101

HYD CONNECTOR,11/16" - 16 Male ORFS x M14 x 1.5 Male ORB

Incl 35, 36

3шт.

7

701-319

ELBOW,90° Elbow, 11/16" - 16 Male ORFS x 11/16" - 16 Female ORFS

Incl 36

2шт.

8

701-422

TEE,11/16" - 16 Male ORFS x 11/16" - 16 Male ORFS x 11/16" - 16 Female ORFS

Incl 36

2шт.

9

47646722

VALVE

Hyd, EH Control, 3-Function

1шт.

10

47870921

HOSE

Third Spool - LH (Yellow, White), 359mm L

1шт.

11

701-329

ELBOW,90 Degree Elbow, 9/16" - 18 Male ORFS x 9/16" - 18 Female ORFS

Incl 38

2шт.

12

47956597

HOSE

Hyd Pilot - Rollback (Orange), 570mm L

1шт.

13

47703892

HOSE

Hyd Pilot - Dump (Green), 483mm L

1шт.

14

47703890

HOSE

Hyd Third Spool (Red, White), 359mm L

1шт.

15

700-392

ELBOW,45 Degree Elbow, 9/16" - 18 Male ORFS x M14 x 1.5 Male ORB

1шт.

16

47659237

HOSE

Hyd Pilot - Lower (Red), 420mm L

1шт.

17

47646869

HOSE

Hyd Pilot - Raise (Yellow), 513mm L

1шт.

18

47657740

HOSE

Hyd Pilot - Pressure, 302mm L

1шт.

19

391859A1

VALVE, CHECK

Incl 36, 38

1шт.

20

47703894

HOSE

Hyd Pilot - Pressure, 772mm L

1шт.

21

221576A1

PLUG,Hex Soc, M14 x 1.5, ORB

Incl 37

9шт.

22

700-315

ELBOW,45 Degree Elbow, 11/16" - 16 Male ORFS x M14 x 1.5 Male ORB

Incl 35, 36

1шт.

23

379374A1

BLOCK

1шт.

24

367658A1

PLATE

2шт.

25

8501052

SPECIAL CLAMP

1шт.

26

827-10100

BOLT,Hex, M10 x 1.5 x 100mm, Cl 10.9

2шт.

27

190119A1

COUPLING

Diagnostic

1шт.

28

48063531

HOSE

Pilot Tank, 3475mm L

1шт.

29

47903104

BRACKET

EH Valve Mount

1шт.

30

892-11010

LOCK WASHER,M10

3шт.

31

627-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

3шт.

32

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

4шт.

33

827-10040

BOLT,Hex, M10 x 1.5 x 40mm, Cl 10.9, Full Thd

4шт.

34

827-10060

BOLT,Hex, M10 x 1.5 x 60mm, Cl 10.9

2шт.

35

637-63113

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

14шт.

36

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

8шт.

37

86598099

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

9шт.

38

238-6011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

13шт.
