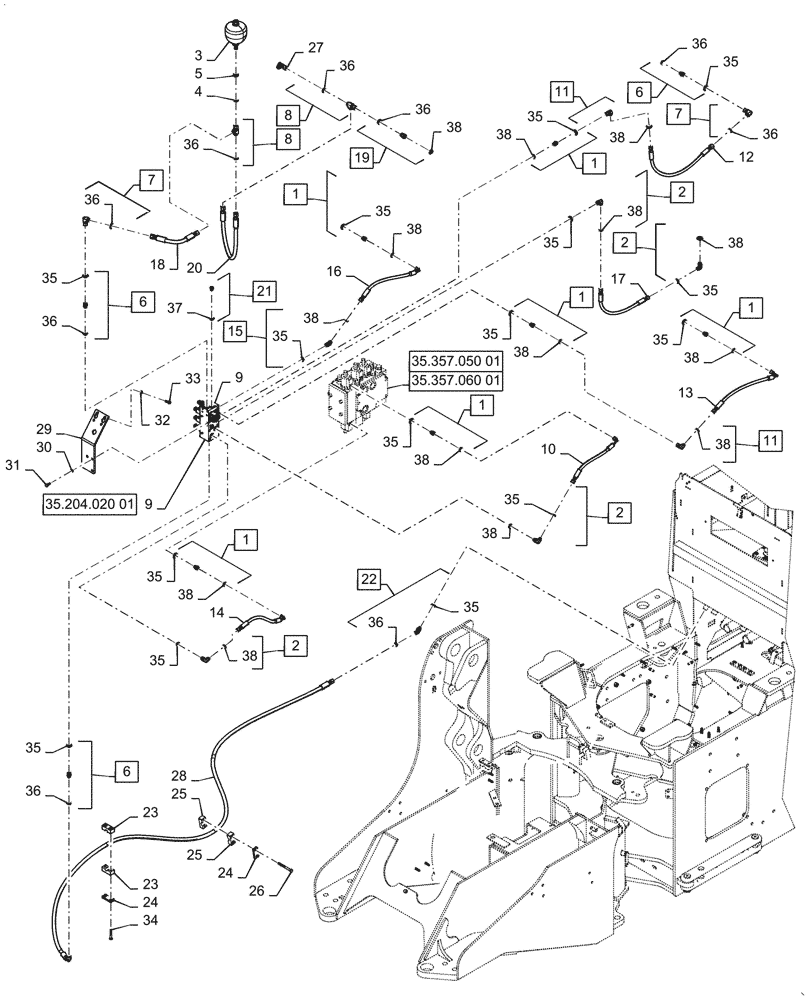

Запчасти Case 721G (35.480.020[01]) - VAR - 734053, 734054 - CONTROL VALVE LINE - 3 SPOOL, EH (35) - HYDRAULIC SYSTEMS

1

700-153

HYD CONNECTOR,9/16" - 18 Male ORFS x M14 x 1.5 Male ORB

Incl 35, 37

6шт.

2

700-378

ELBOW,90 Degree Elbow, 9/16" - 18 Male ORFS x M14 x 1.5 Male ORB

Incl 35, 37

1шт.

3

8501047

ACCUMULATOR

Pilot Supply

1шт.

4

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

5

701-909

NUT,11/16" - 16

1шт.

6

700-101

HYD CONNECTOR,11/16" - 16 Male ORFS x M14 x 1.5 Male ORB

Incl 35, 36

1шт.

7

701-319

ELBOW,90° Elbow, 11/16" - 16 Male ORFS x 11/16" - 16 Female ORFS

Incl 36

2шт.

8

701-422

TEE,11/16" - 16 Male ORFS x 11/16" - 16 Male ORFS x 11/16" - 16 Female ORFS

Incl 36

2шт.

9

47646722

VALVE

Hyd, EH Control, 3-Function

1шт.

10

47870921

HOSE

Third Spool, Left - Yellow / White, 359mm L

1шт.

11

701-329

ELBOW,90 Degree Elbow, 9/16" - 18 Male ORFS x 9/16" - 18 Female ORFS

Incl 37

2шт.

12

47956597

HOSE

Hyd Rollback - Orange, 570mm L

1шт.

13

47703892

HOSE

Pilot Dump - Green, 483mm L

1шт.

14

47703890

HOSE

Third Spool - Red / White, 359mm L

1шт.

15

700-392

ELBOW,45 Degree Elbow, 9/16" - 18 Male ORFS x M14 x 1.5 Male ORB

Incl 35, 37

1шт.

16

47659237

HOSE

Pilot Lower - Red, 420mm L

1шт.

17

47646869

HOSE

Pump Raise - Yellow, 513mm L

1шт.

18

47657740

HOSE

Pilot Pressure, 302mm L

1шт.

19

391859A1

VALVE, CHECK

Incl 36 , 37

1шт.

20

47703894

HOSE

Pilot Pressure, 772mm L

1шт.

21

221576A1

PLUG,Hex Soc, M14 x 1.5, ORB

Incl 35

9шт.

22

700-315

ELBOW,45 Degree Elbow, 11/16" - 16 Male ORFS x M14 x 1.5 Male ORB

Incl 35, 36

1шт.

23

379374A1

BLOCK

1шт.

24

367658A1

PLATE

2шт.

25

8501052

SPECIAL CLAMP

1шт.

26

827-10100

BOLT,Hex, M10 x 1.5 x 100mm, Cl 10.9

2шт.

27

190119A1

COUPLING

Diagnostic

1шт.

28

48063531

HOSE

Pilot Tank, 3475mm L

1шт.

29

47903103

BRACKET

EH Valve Mount

1шт.

30

892-11010

LOCK WASHER,M10

3шт.

31

627-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

3шт.

32

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

4шт.

33

827-10040

BOLT,Hex, M10 x 1.5 x 40mm, Cl 10.9, Full Thd

4шт.

34

827-10060

BOLT,Hex, M10 x 1.5 x 60mm, Cl 10.9

2шт.

35

86639042

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

15шт.

36

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

8шт.

37

9825770

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

9шт.

38

238-6011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

15шт.
