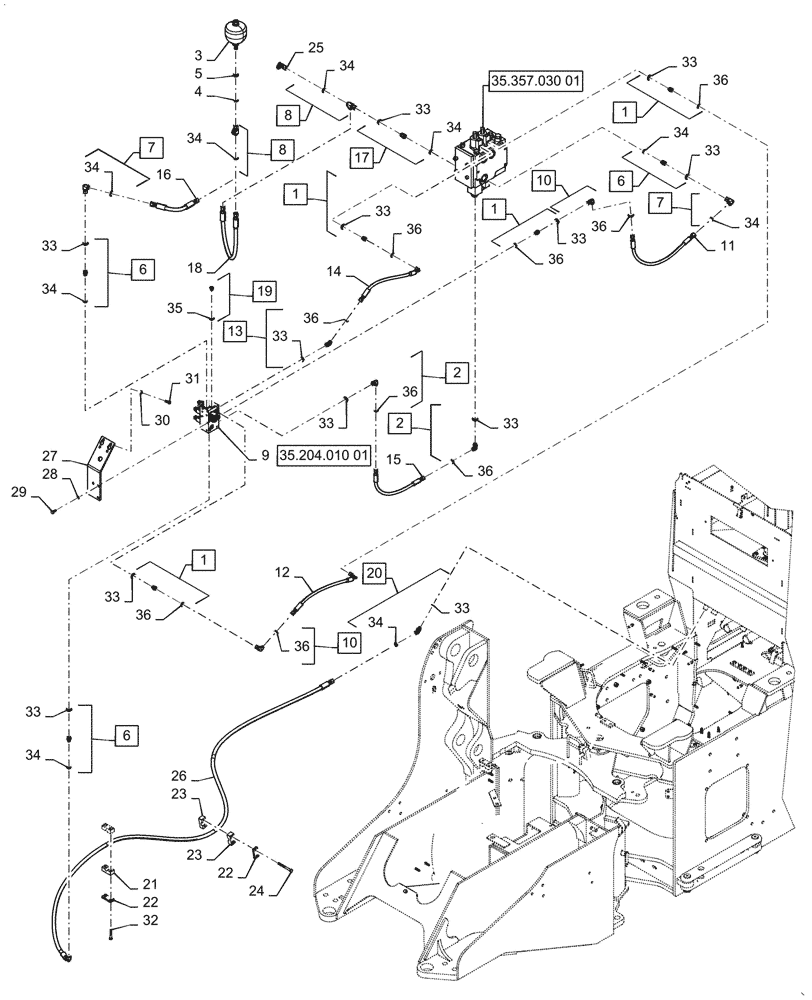

Запчасти Case 721G (35.480.010[01]) - VAR - 734051, 734052 - CONTROL VALVE LINE - 2 SPOOL, EH (35) - HYDRAULIC SYSTEMS

1

700-153

HYD CONNECTOR,9/16" - 18 Male ORFS x M14 x 1.5 Male ORB

Incl 33, 36

4шт.

2

700-378

ELBOW,90 Degree Elbow, 9/16" - 18 Male ORFS x M14 x 1.5 Male ORB

Incl 33, 36

2шт.

3

8501047

ACCUMULATOR

Pilot Supply

1шт.

4

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

5

701-909

NUT,11/16" - 16

1шт.

6

700-101

HYD CONNECTOR,11/16" - 16 Male ORFS x M14 x 1.5 Male ORB

Incl 33, 34

3шт.

7

701-319

ELBOW,90° Elbow, 11/16" - 16 Male ORFS x 11/16" - 16 Female ORFS

Incl 34

2шт.

8

701-422

TEE,11/16" - 16 Male ORFS x 11/16" - 16 Male ORFS x 11/16" - 16 Female ORFS

Incl 34

2шт.

9

47718795

VALVE

Hyd, EH Control, 2-Function

1шт.

10

701-329

ELBOW,90 Degree Elbow, 9/16" - 18 Male ORFS x 9/16" - 18 Female ORFS

Incl 36

2шт.

11

47956597

HOSE

Pilot Rollback

1шт.

12

47703892

HOSE

Pilot Dump

1шт.

13

700-392

ELBOW,45 Degree Elbow, 9/16" - 18 Male ORFS x M14 x 1.5 Male ORB

Incl 33, 36

1шт.

14

47659237

HOSE

Pilot Lower, 570mm L

1шт.

15

47646869

HOSE

Pilot Raise, 513mm L

1шт.

16

47657740

HOSE

Pilot Pressure, 302mm L

1шт.

17

391859A1

VALVE, CHECK

Incl 33, 34

1шт.

18

47703894

HOSE

Pilot Pressure, 772mm L

1шт.

19

221576A1

PLUG,Hex Soc, M14 x 1.5, ORB

Incl 35

7шт.

20

700-315

ELBOW,45 Degree Elbow, 11/16" - 16 Male ORFS x M14 x 1.5 Male ORB

Incl 33, 34

1шт.

21

379374A1

BLOCK

Tube Mounting

1шт.

22

367658A1

PLATE

Clamp Cover

2шт.

23

8501052

SPECIAL CLAMP

Tube Mounting

1шт.

24

827-10100

BOLT,Hex, M10 x 1.5 x 100mm, Cl 10.9

2шт.

25

190119A1

COUPLING

Diagnostic

1шт.

26

48063531

HOSE

Pilot Tank, 3475mm L

1шт.

27

47903103

BRACKET

EH Valve Mount - Z-BAR / XR / LR

1шт.

28

892-11010

LOCK WASHER,M10

3шт.

29

627-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

3шт.

30

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

4шт.

31

827-10040

BOLT,Hex, M10 x 1.5 x 40mm, Cl 10.9, Full Thd

4шт.

32

827-10060

BOLT,Hex, M10 x 1.5 x 60mm, Cl 10.9

2шт.

33

637-63113

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

12шт.

34

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

9шт.

35

86598099

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

7шт.

36

238-6011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

9шт.
