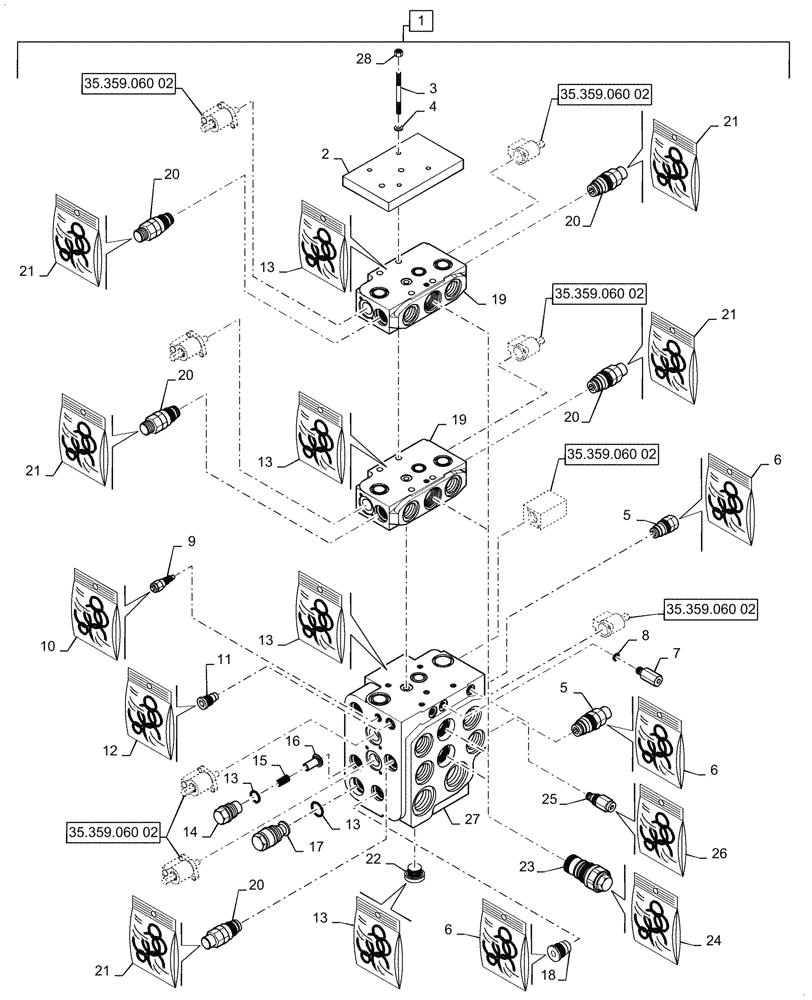

Запчасти Case 721G (35.359.060[01]) - VAR - 734055 - CONTROL VALVE ASSY - 4 SPOOL, XT / TC (35) - HYDRAULIC SYSTEMS

1

87592836

HYDRAULIC VALVE

Three Spool, XT, Incl. 2 - 28

1шт.

2

87613466

PLATE

Endcap

1шт.

3

47728062

STUD

M10 x 180mm

4шт.

4

895-18010

WASHER,10.5mm ID x 18mm OD x 1.6mm Thk

4шт.

5

87613468

HYDRAULIC VALVE

Anti-Cavitation for Valve 725

1шт.

5

48043556

VALVE

Anti-Cavitation for Valve 927

1шт.

6

47728011

SEAL KIT

Anti-Cavitation for Valve 725

2шт.

6

48043557

SEAL KIT

Anti-Cavitation for Valve 927

1шт.

7

8602899

HYDRAULIC VALVE

Pilot Pressure Reducing

1шт.

8

87311765

O-RING,1.78mm Thk x 15.6mm ID, 80 Duro

1шт.

9

8602925

VALVE PRESSURE RELIE

1шт.

10

47728953

SEAL KIT

Pressure Relief valve

1шт.

11

87613469

HYDRAULIC VALVE

Flow Limiting Valve

1шт.

12

47728020

SEAL KIT

Flow Limiting Valve

1шт.

13

8602927

SEAL KIT

For Main Housing (Includes 29 O-rings)

1шт.

14

47728040

SCREW

Locking

1шт.

15

47728044

SPRING

Compression

1шт.

16

8602920

CONE

2шт.

17

8602912

HYDRAULIC VALVE

Anti-Cavitation Check

1шт.

18

47729047

SCREW

Locking

1шт.

19

NSS

NOT SOLD SEPARAT

Block, Incl in 1

2шт.

20

8602906

HYDRAULIC VALVE

Anti-Cavitation Check

6шт.

21

87613467

SEAL KIT

Relief and Anti-Cavitation Check

6шт.

22

47728000

SCREW

Locking

1шт.

23

8602900

PILOT VALVE

Pilot Relief and Anti-Cavitation

4шт.

24

47728007

SEAL KIT

Pilot Relief and Anti-Cavitation

4шт.

25

8602913

HYDRAULIC VALVE

Flow Limiting

1шт.

26

47728959

SEAL KIT

Flow Limiting Valve

1шт.

27

NSS

NOT SOLD SEPARAT

BLOCK, Incl in 1

1шт.

28

829-1410

NUT,M10 x 1.5, Cl 10.9

4шт.
