(35.359.050[02]) - VAR - 734055 - CONTROL VALVE ASSY - 4 SPOOL, Z-BAR / XR / LR

Запчасти Case 721G (35.359.050[02]) - VAR - 734055 - CONTROL VALVE ASSY - 4 SPOOL, Z-BAR / XR / LR (35) - HYDRAULIC SYSTEMS

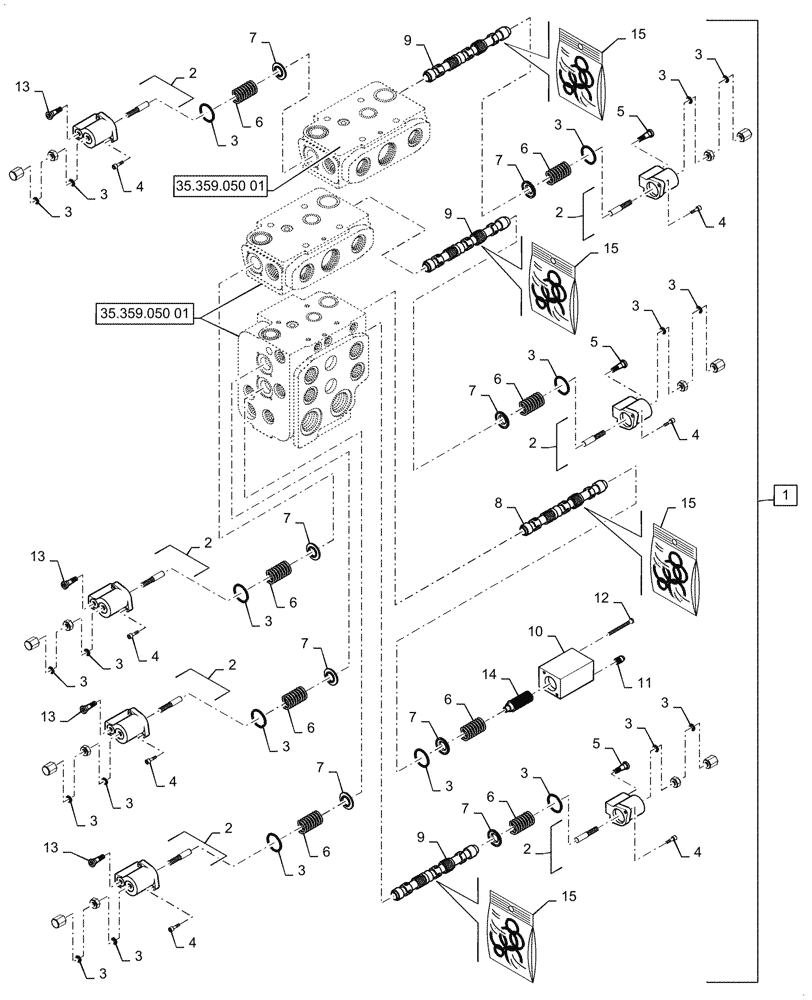

Схема запчастей Case 721G - (35.359.050[02]) - VAR - 734055 - CONTROL VALVE ASSY - 4 SPOOL, Z-BAR / XR / LR (35) - HYDRAULIC SYSTEMS
35.359.050 01
3
5
4
2
15
3
5
3
2
7
4
14
9
3
4
3
10
3
6
13
13
7
9
8
3
4
13
3
12
3
6
7
3
6
3
2
2
3
15
3
11
3
7
7
3
3
7
1
2
6
6
2
7
9
6
6
4
3
3
3
3
13
3
2
6
15
15
4
3
5
7
4
35.359.050 01
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87539264

HYDRAULIC VALVE

Four Spool, Z-Bar / XR, Incl 2 - 15

1шт.

2

87613464

COVER

Spool Endcap

7шт.

3

8602927

SEAL KIT

Main Housing (Incl 29 O-rings)

1шт.

4

962-6016

HEX SOC SCREW,M6 x 16mm, Cl 10.9

14шт.

5

8602924

CARTRIDGE

Piston, Pilot Shuttle, M12 x 1,5

5шт.

6

47728029

SPRING

Centering

8шт.

7

47728035

RETAINER

Centering Spring

8шт.

8

47728005

SPOOL

Boom (A2, B2)

1шт.

9

87311763

SPOOL

Bucket (A1, B1), Option (A3, A4, B3, B4)

3шт.

10

87311762

COVER

Spool Endcap

1шт.

11

87311766

PLUG

Hydraulic, M12

2шт.

12

47727996

SCREW

Hex Socket; M6 x 105

2шт.

13

8604578

CHECK VALVE

Throttle

1шт.

14

87311768

SPRING

Compression for Float

1шт.

15

87620361

SEAL KIT

Services 9

4шт.
