(35.359.040[02]) - VAR - 734053, 734054 - CONTROL VALVE ASSY - 3 SPOOL, Z-BAR / XR / LR

Запчасти Case 721G (35.359.040[02]) - VAR - 734053, 734054 - CONTROL VALVE ASSY - 3 SPOOL, Z-BAR / XR / LR (35) - HYDRAULIC SYSTEMS

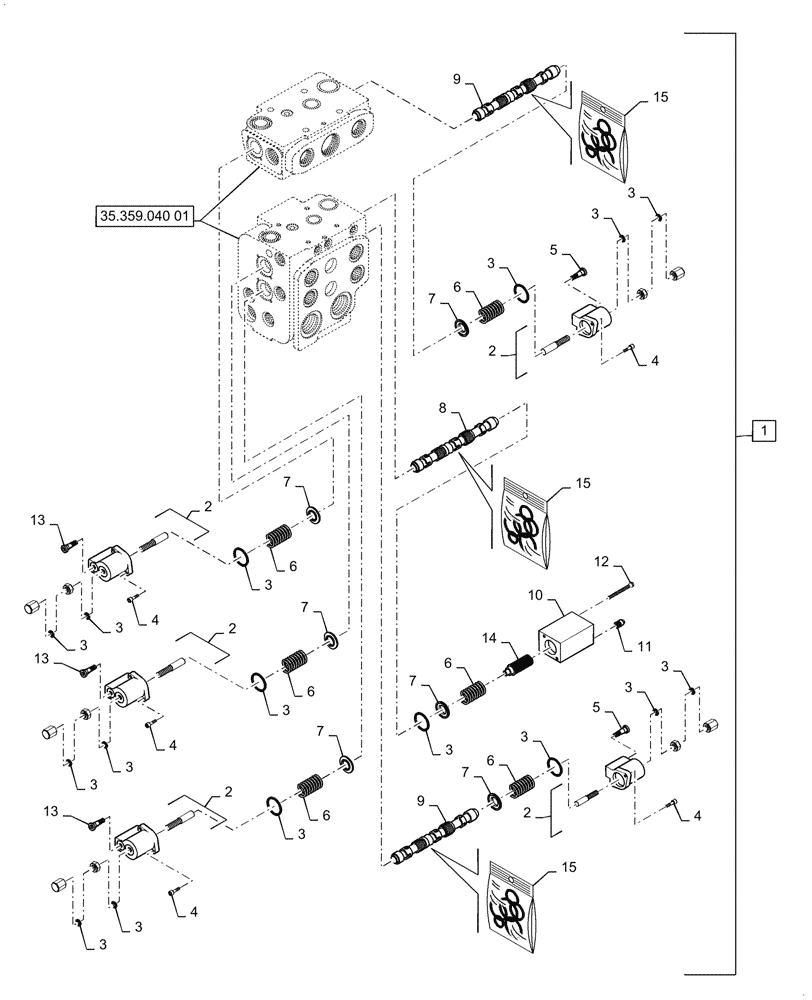

Схема запчастей Case 721G - (35.359.040[02]) - VAR - 734053, 734054 - CONTROL VALVE ASSY - 3 SPOOL, Z-BAR / XR / LR (35) - HYDRAULIC SYSTEMS
35.359.040 01
4
15
2
3
6
15
3
6
4
3
3
6
3
5
14
3
7
3
4
3
7
7
3
1
5
12
8
2
2
3
6
7
15
3
7
2
13
3
13
3
3
3
10
4
6
6
9
4
11
2
9
7
3
13
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87539263

HYDRAULIC VALVE

Three Spool, Z-bar/ XR, Incl 2 - 15

1шт.

2

87613464

COVER

Spool Endcap

5шт.

3

8602927

SEAL KIT

For Main Housing (Incl 29 O-rings)

1шт.

4

962-6016

HEX SOC SCREW,M6 x 16mm, Cl 10.9

10шт.

5

8602924

CARTRIDGE

Piston, Pilot Shuttle, M12 x 1.5'

3шт.

6

47728029

SPRING

6шт.

7

47728035

RETAINER

Centering

6шт.

8

47728005

SPOOL

Boom (A2, B2)

1шт.

9

87311763

SPOOL

Bucket (A1, B1), Option (A3, B3)

2шт.

10

87311762

COVER

Spool Endcap

1шт.

11

87311766

PLUG

Hydraulic, M12

2шт.

12

47727996

SCREW

M6

2шт.

13

8604578

CHECK VALVE

Throttle

1шт.

14

87311768

SPRING

Compression for Float

1шт.

15

87620361

SEAL KIT

Services 9

3шт.
