(35.359.030[02]) - VAR - 734053, 734054 - CONTROL VALVE ASSY - 3 SPOOL, XT / TC

Запчасти Case 721G (35.359.030[02]) - VAR - 734053, 734054 - CONTROL VALVE ASSY - 3 SPOOL, XT / TC (35) - HYDRAULIC SYSTEMS

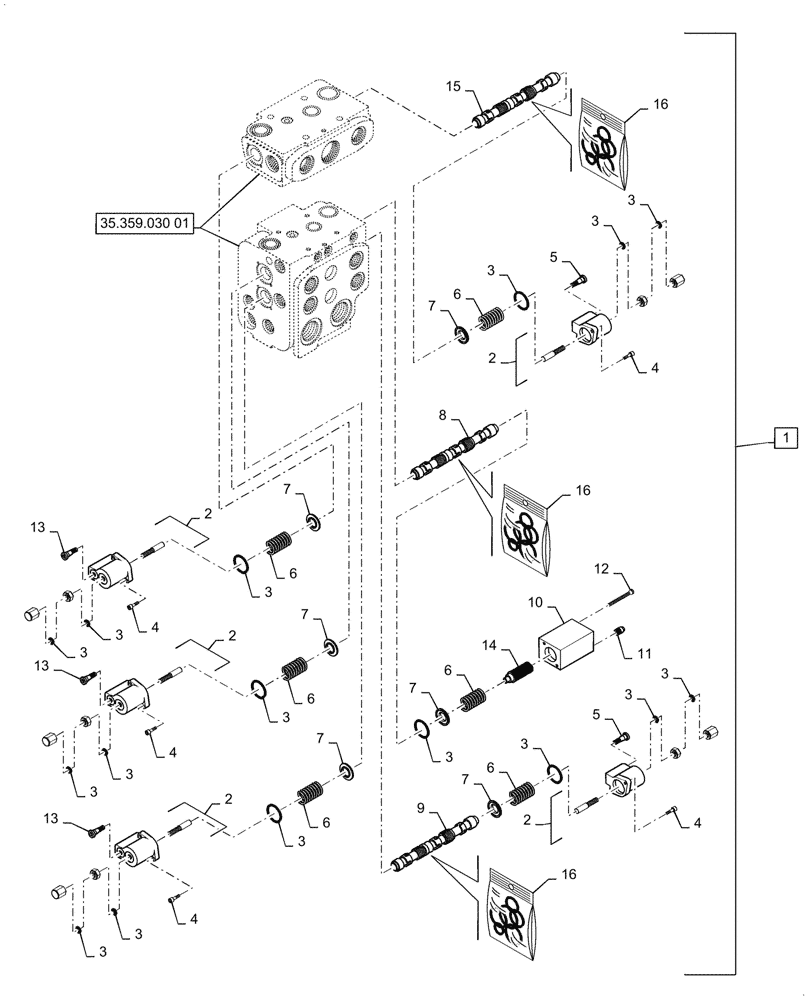

Схема запчастей Case 721G - (35.359.030[02]) - VAR - 734053, 734054 - CONTROL VALVE ASSY - 3 SPOOL, XT / TC (35) - HYDRAULIC SYSTEMS
35.359.030 01
7
4
16
3
5
3
1
4
3
4
7
13
3
2
14
6
6
3
12
2
2
7
6
3
7
3
6
6
13
3
3
3
3
13
4
7
7
4
3
3
6
2
3
16
8
3
16
2
10
5
11
15
9
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87592835

HYDRAULIC VALVE

Three Spool, XT / TC, Incl 2 - 16

1шт.

2

87613464

COVER

Spool Endcap

5шт.

3

8602927

SEAL KIT

For Main Housing (Incl 29 O-rings)

1шт.

4

87615735

SCREW

M6

10шт.

5

8602924

CARTRIDGE

Piston, Pilot Shuttle, M12 x 1,5

5шт.

6

47728029

SPRING

Centering

6шт.

7

47728035

RETAINER

Centering Spring

6шт.

8

47728005

SPOOL

Boom (A2, B2)

1шт.

9

87311900

SPOOL

Bucket (A1, B1)

1шт.

10

87311762

COVER

Spool Endcap

1шт.

11

87311766

PLUG

Hydraulic, M12

2шт.

12

47727996

SCREW

Hex Socket; M6 x 105

2шт.

13

8604578

CHECK VALVE

Throttle

3шт.

14

87311768

SPRING

Compression for Float

1шт.

15

87614090

SPOOL

Option (A3, A4, B3, B4)

1шт.

16

87620361

SEAL KIT

Services 8

3шт.
