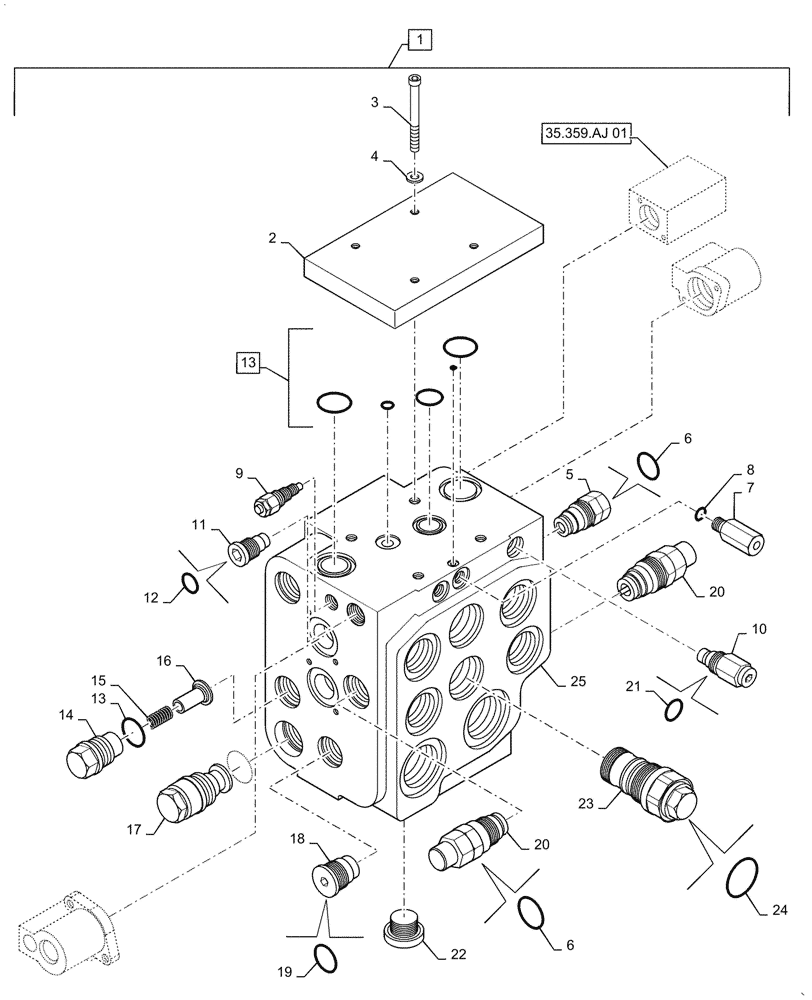

Запчасти Case 721G (35.359.020[01]) - VAR - 734051, 734052 - CONTROL VALVE ASSY - 2 SPOOL, XT / TC (35) - HYDRAULIC SYSTEMS

1

87592834

HYDRAULIC VALVE

Two Spool, XT / TC, Incl 2 - 27

1шт.

2

87613466

PLATE

Endcap

1шт.

3

962-10035

HEX SOC SCREW,M10 x 35mm, Cl 10.9

4шт.

4

895-18010

WASHER,10.5mm ID x 18mm OD x 1.6mm Thk

4шт.

5

87613468

HYDRAULIC VALVE

Anti-Cavitation for Valve 725

1шт.

5

48043556

VALVE

Anti-Cavitation for Valve 927

1шт.

6

47728011

SEAL KIT

Anti-Cavitation for Valve 725

1шт.

6

48043557

SEAL KIT

Anti-Cavitation for Valve 927

1шт.

7

8602899

HYDRAULIC VALVE

Component Parts Not Serviced Separately

1шт.

8

87311765

O-RING,1.78mm Thk x 15.6mm ID, 80 Duro

1шт.

9

8602925

VALVE PRESSURE RELIE

Incl 10

1шт.

10

47728953

SEAL KIT

Pressure Relief Valve

1шт.

11

87613469

HYDRAULIC VALVE

Flow Limiting Valve, Incl 12

1шт.

12

47728020

SEAL KIT

Flow Limiting Valve, Services 11

1шт.

13

8602927

SEAL KIT

For Main Housing (Incl 29 O-rings)

1шт.

14

47728040

SCREW

Locking; M28 x 1 x 49

1шт.

15

47728044

SPRING

Compression

1шт.

16

8602920

CONE

1шт.

17

8602912

HYDRAULIC VALVE

Component Parts Not Serviced Separately

1шт.

18

47729047

SCREW

Incl 6

1шт.

19

47728011

SEAL KIT

Lock Screw

1шт.

20

8602906

HYDRAULIC VALVE

Anti-Cavitation Check, Incl 27

2шт.

21

8602898

LOCK SCREW

Relief and Anti-Cavitation Check

1шт.

22

47728000

SCREW

M33 x 2; Locking

1шт.

23

8602900

PILOT VALVE

Pilot Relief and Anti-Cavitation, Incl 24

2шт.

24

47728007

SEAL KIT

Pilot Relief and Anti-Cavitation, Services 23

1шт.

25

8602913

HYDRAULIC VALVE

Flow Limiting, Incl 26

1шт.

26

47728959

SEAL KIT

Flow Limiting Valve

1шт.

27

NSS

NOT SOLD SEPARAT

Block, Incl in 1

1шт.
