(35.359.010[02]) - VAR - 734051, 734052 - CONTROL VALVE ASSY - 2 SPOOL, Z-BAR / XR / LR

Запчасти Case 721G (35.359.010[02]) - VAR - 734051, 734052 - CONTROL VALVE ASSY - 2 SPOOL, Z-BAR / XR / LR (35) - HYDRAULIC SYSTEMS

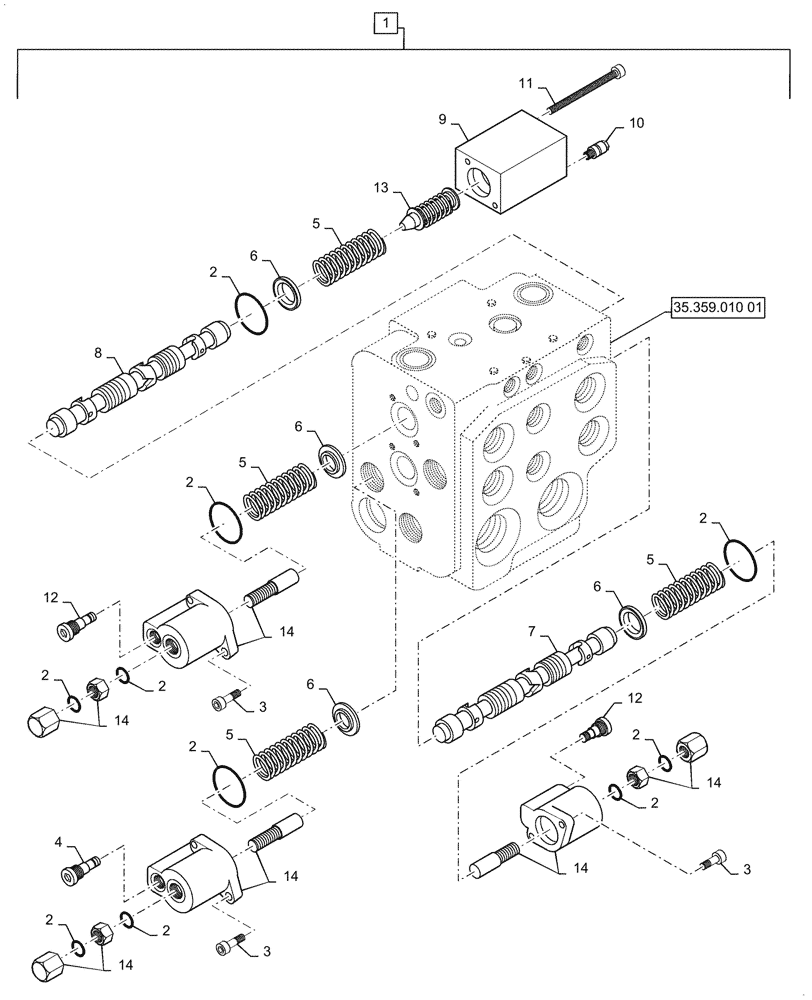

Схема запчастей Case 721G - (35.359.010[02]) - VAR - 734051, 734052 - CONTROL VALVE ASSY - 2 SPOOL, Z-BAR / XR / LR (35) - HYDRAULIC SYSTEMS
35.359.010 01
11
12
3
12
3
5
14
8
2
14
1
2
6
2
5
3
9
7
2
5
14
6
13
14
2
14
14
2
2
5
4
6
2
2
10
2
6
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87539262

HYDRAULIC VALVE

Two Spool, Z-Bar/ XR, Incl 2 - 14

1шт.

2

8602927

SEAL KIT

For Main Housing (Incl 29 O-rings)

1шт.

3

962-6016

HEX SOC SCREW,M6 x 16mm, Cl 10.9

6шт.

4

8602924

CARTRIDGE

Piston, Pilot Shuttle, M12 x 1,5

1шт.

5

47728029

SPRING

Centering

4шт.

6

47728035

RETAINER

Centering Spring

4шт.

7

87311763

SPOOL

Bucket (A1, B1)

1шт.

8

47728005

SPOOL

Boom (A2, B2)

1шт.

9

87311762

COVER

Spool Endcap

1шт.

10

8604578

CHECK VALVE

Throttle

1шт.

11

47727996

SCREW

Hex Socket; M6 x 105

2шт.

12

87311766

PLUG

Hydraulic, M12

2шт.

13

87311768

SPRING

Compression for Float

1шт.

14

87613464

COVER

Spool Endcap

3шт.
