(35.357.060[01]) - VAR - 734053, 734054 - CONTROL VALVE, MOUNTING - 3 SPOOL, XT / TC

Запчасти Case 721G (35.357.060[01]) - VAR - 734053, 734054 - CONTROL VALVE, MOUNTING - 3 SPOOL, XT / TC (35) - HYDRAULIC SYSTEMS

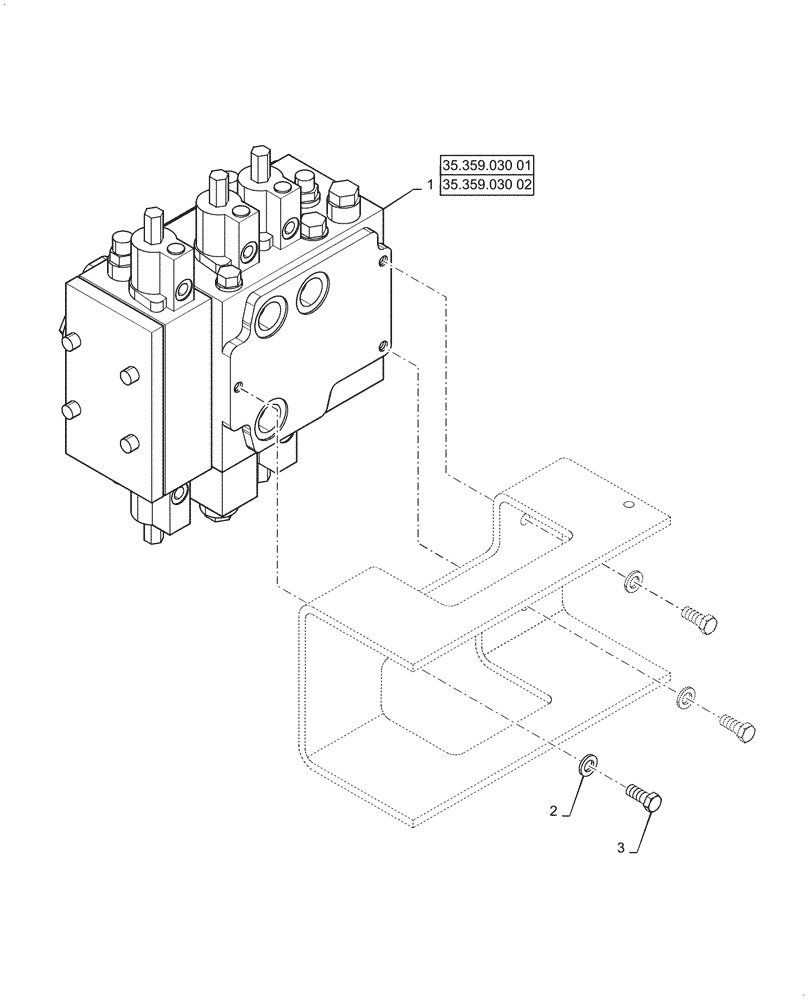

Схема запчастей Case 721G - (35.357.060[01]) - VAR - 734053, 734054 - CONTROL VALVE, MOUNTING - 3 SPOOL, XT / TC (35) - HYDRAULIC SYSTEMS
35.359.030 01
1
3
2
35.359.030 02
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87592835

HYDRAULIC VALVE

Three Spool, XT / TC

1шт.

2

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

3шт.

3

627-12030

BOLT,Hex, M12 x 1.75 x 30mm, Cl 10.9, Full Thd

3шт.

Выбрано товаров: 3
