(35.357.030[01]) - VAR - 734051, 734052 - CONTROL VALVE, MOUNTING - 2 SPOOL, Z-BAR / XR / LR

Запчасти Case 721G (35.357.030[01]) - VAR - 734051, 734052 - CONTROL VALVE, MOUNTING - 2 SPOOL, Z-BAR / XR / LR (35) - HYDRAULIC SYSTEMS

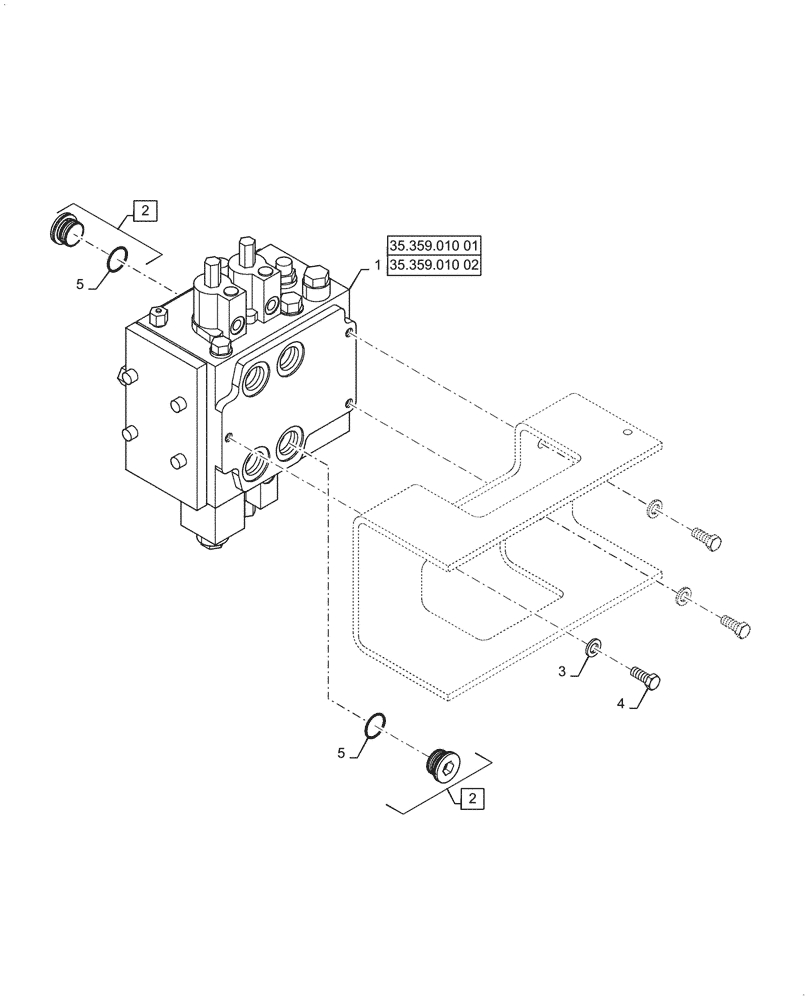

Схема запчастей Case 721G - (35.357.030[01]) - VAR - 734051, 734052 - CONTROL VALVE, MOUNTING - 2 SPOOL, Z-BAR / XR / LR (35) - HYDRAULIC SYSTEMS
35.359.010 02
4
2
5
3
5
2
1
35.359.010 01
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87539262

HYDRAULIC VALVE

Two Spool, Z-Bar / XR / LR

1шт.

2

221527A1

PLUG,Hex Soc, M33 x 2, ORB

Incl 5

2шт.

3

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

3шт.

4

627-12030

BOLT,Hex, M12 x 1.75 x 30mm, Cl 10.9, Full Thd

3шт.

5

14438285

O-RING,29.5mm ID x 3.0mm

2шт.
