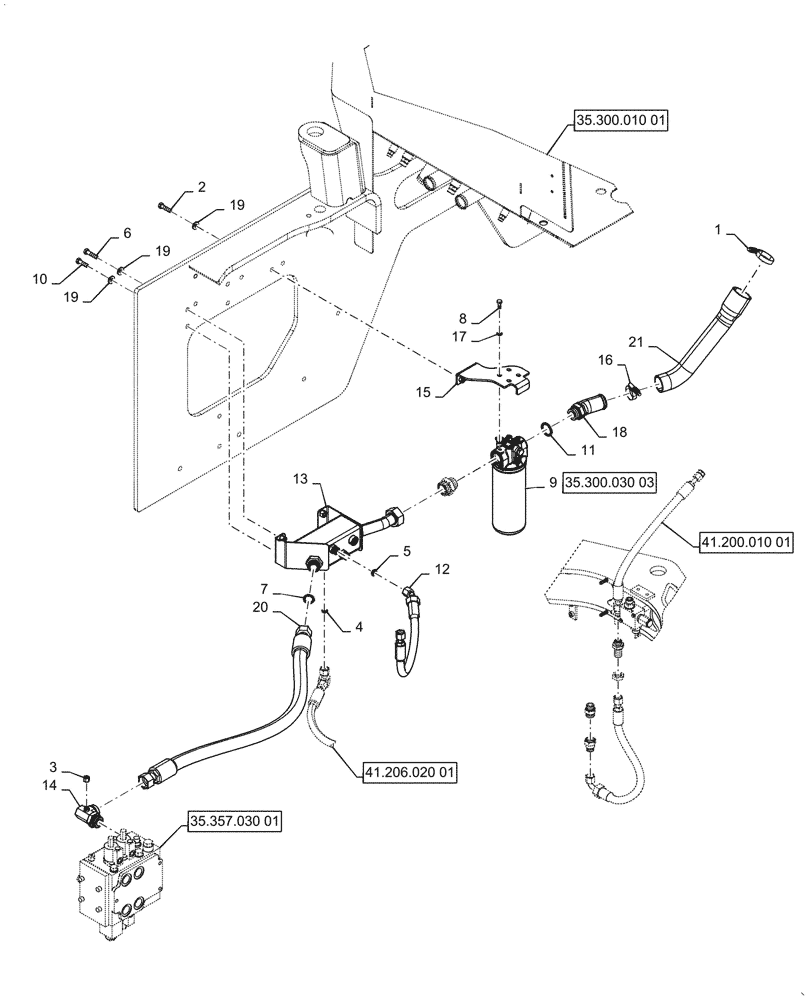

Запчасти Case 721G (35.300.030[02]) - HYDRAULIC RESERVOIR RETURN LINE (35) - HYDRAULIC SYSTEMS

1

L115548

CLAMP,57.15mm - 79.38mm

Constant Torque

1шт.

2

627-12045

BOLT,Hex, M12 x 1.75 x 45mm, Cl 10.9, Full Thd

2шт.

3

701-917

CAP,Hex, 9/16" - 18 Female ORFS

1шт.

4

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

5

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

3шт.

6

827-12050

BOLT,Hex, M12 x 1.75 x 50mm, Cl 10.9

1шт.

7

238-6025

O-RING,0.07" Thk x 1.176" ID, -25, Cl 6, 90 Duro

1шт.

8

627-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

4шт.

9

47562739

FILTER ASSY

Hyd Oil

1шт.

10

627-12040

BOLT,Hex, M12 x 1.75 x 40mm, Cl 10.9, Full Thd

3шт.

11

637-64386

O-RING,2.9mm Thk x 38.6mm ID, Cl 6, 90 Duro

1шт.

12

87369394

HOSE ASSY.

Steering Return

1шт.

13

47752346

MANIFOLD

Return

1шт.

14

47840308

FITTING

Loader Valve Return

1шт.

15

47567279

BRACKET

Filter Mounting

1шт.

16

254026A1

HOSE CLAMP,44.45mm - 66.67mm

1шт.

17

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

4шт.

18

390208A2

ADAPTER

1шт.

19

896-15012

WASHER,13.5mm ID x 28mm OD x 4mm Thk

6шт.

20

47821941

HOSE

Articulation Return

1шт.

21

87318399

HYDRAULIC HOSE,50.80 mm ID, 63.50 mm ID x 429.00 mm

Filter Return

1шт.
