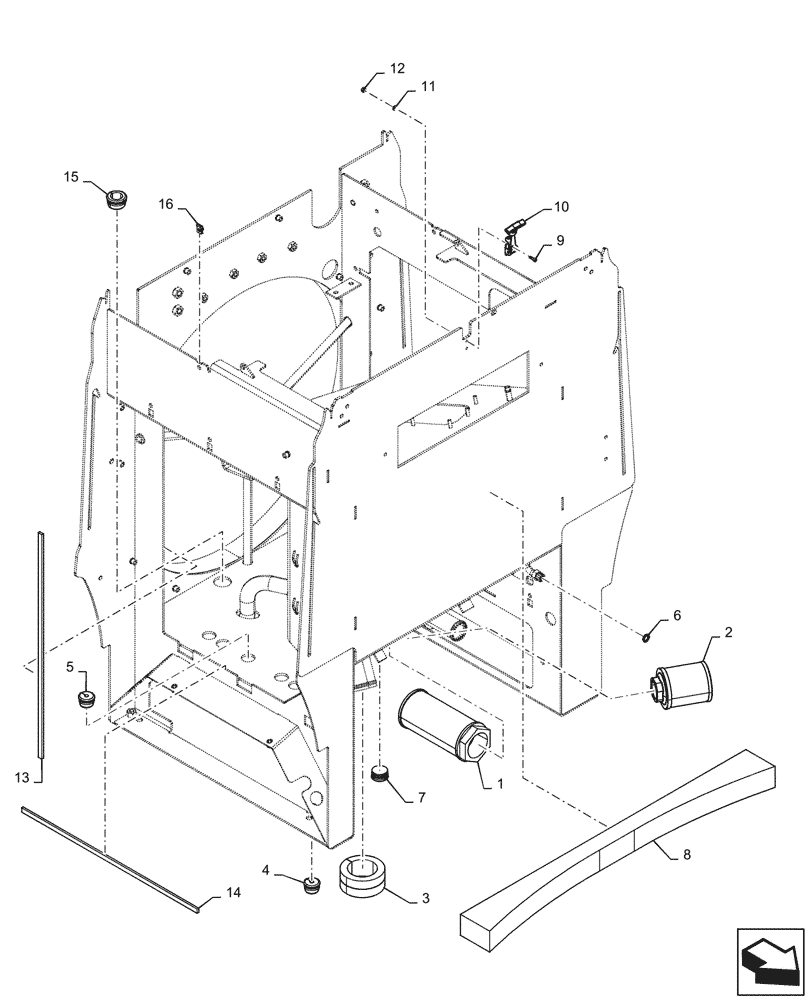

Запчасти Case 721G (35.300.020) - HYDRAULIC RESERVOIR FILTER (35) - HYDRAULIC SYSTEMS

1

L128515

STRAINER ELEMENT

Hydraulic Tank

2шт.

2

47575681

FILTER STRAINER

Hydraulic Tank

1шт.

3

8500167

SEAL

Charge Air Tubes

1шт.

4

198825C1

GROMMET,15.88mm ID x 41.1mm OD x 26.9mm Thk

1шт.

5

8500186

GROMMET

1шт.

6

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

Face Seal

1шт.

7

217-445

PLUG,Hex Soc, 1-1/4" - 11-1/2 NPTF

1шт.

8

47684473

SEAL

Foam

1шт.

9

864-5016

HEX SOC SCREW,M5 x 16mm, Cl 8.8

2шт.

10

384774A1

LATCH

Flexible

1шт.

11

895-11005

WASHER,5.5mm ID x 10mm OD x 1mm Thk

2шт.

12

824-1405

NUT,M5, Cl 5

2шт.

13

8500133

OIL SEAL

Side

2шт.

14

87312068

OIL SEAL

Header

4шт.

15

198823C1

GROMMET,9.53mm ID x 41.1mm OD x 26.9mm Thk

2шт.

16

84346910

SPRING NUT,M8

M8 x 1.25mm

10шт.
