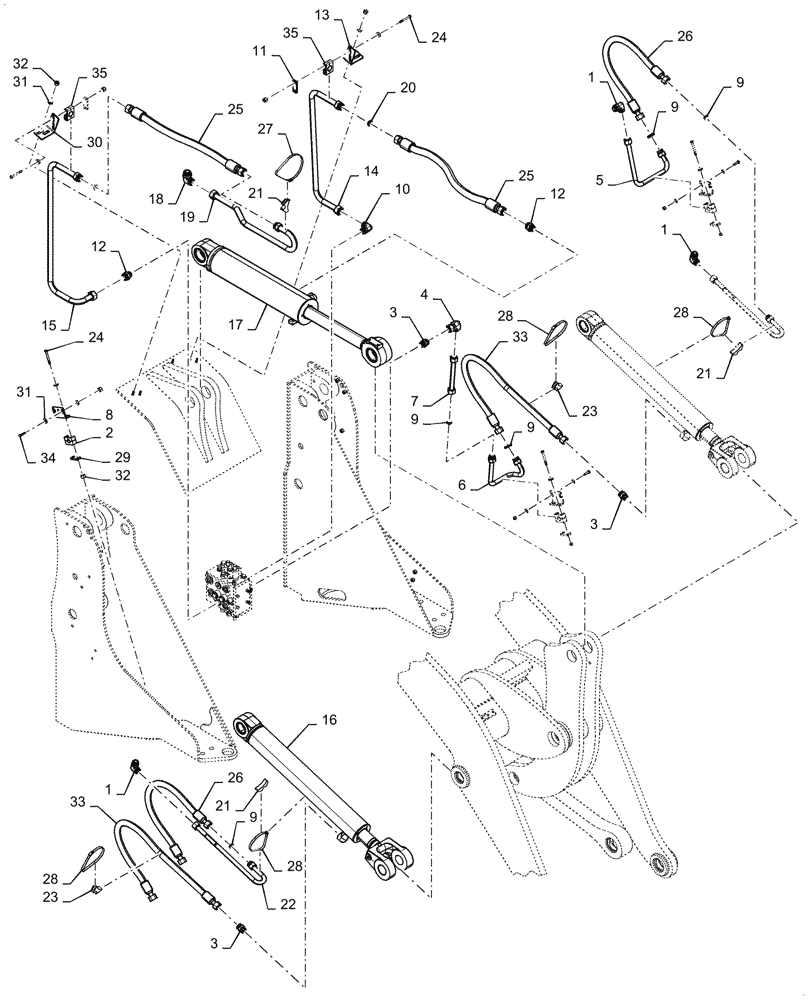

Запчасти Case 721G (35.100.010) - LIFT & TILT CYLINDER, Z-BAR / XR (35) - HYDRAULIC SYSTEMS

1

700-308

ELBOW,90 Degree Elbow, 1-7/16" - 12 Male ORFS x M33 x 2 Male ORB

3шт.

2

367489A1

BLOCK

Tub Mounting

4шт.

3

700-105

HYD CONNECTOR,1-7/16" - 12 Male ORFS x M33 x 2 Male ORB

3шт.

4

701-339

ELBOW,90 Degree Elbow, 1-7/16" - 12 Male ORFS x 1-7/16" - 16 Female ORFS

1шт.

5

8500519

HYD TUBE

Raise

1шт.

6

8501055

HYD TUBE

Lower, Formed

1шт.

7

8501057

HYD TUBE

Lower, Straight

1шт.

8

48082478

Lift Tube

BRACKET

4шт.

9

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

5шт.

10

700-335

ELBOW,90 Degree Elbow, 1-11/16" - 12 Male ORFS x M33 x 2 Male ORB

1шт.

11

8500858

PLATE

2шт.

12

700-134

HYD CONNECTOR,1-11/16" - 12 Male ORFS x M33 x 2 Male ORB

2шт.

13

47946428

BRACKET

LH Tilt Tube

1шт.

14

47850191

TUBE

Dump

1шт.

15

47850193

TUBE

Rollback

1шт.

16

87319194

LIFT CYLINDER,Double Acting, 76.2mm Rod, 828.1mm Stroke

2шт.

17

87318786

HYDRAULIC CYLINDER,Double Acting, 76.2mm Rod, 629.4mm Stroke

Tilt Cylinder, Z-Bar

1шт.

17

87691132

CYLINDER,Double Acting, 76.2mm Rod, 629.4mm Stroke

Tilt Cylinder, XR

1шт.

18

700-309

ELBOW,90 Degree Elbow, 1-11/16" - 12 Male ORFS x M42 x 2 Male ORB

1шт.

19

47728686

TUBE

Tilt Cylinder

1шт.

20

238-6025

O-RING,0.07" Thk x 1.176" ID, -25, Cl 6, 90 Duro

3шт.

21

391133A1

CLAMP

3шт.

22

8500547

HYD TUBE

Lift Cylinder

2шт.

23

8500550

BLOCK

2шт.

24

827-10090

BOLT,Hex, M10 x 1.5 x 90mm, Cl 10.9

12шт.

25

47728761

HOSE

Hose, Tilt

2шт.

25

47407593

HOSE,31.75mm ID x 988mm L, SAE 100R13

Tilt, WH

2шт.

26

87659635

HYDRAULIC HOSE,25.4mm ID x 1103mm L, SAE 100R12

Lift

2шт.

26

47407589

HOSE,25.4mm ID x 1103mm L, SAE 100R12

Lift, WH

2шт.

27

214-14136

HOSE CLAMP,#136, 8.12" - 9", Type F Worm

1шт.

28

214-14104

HOSE CLAMP,155.45mm - 177.8mm

4шт.

29

367658A1

PLATE

4шт.

30

47946447

BRACKET

RH Tilt Tube

1шт.

31

896-15010

WASHER,11mm ID x 24mm OD x 3mm Thk

32шт.

32

832-10410

NUT,M10 x 1.5, Cl 8

24шт.

33

87659631

HYDRAULIC HOSE,25.4mm ID x 1525mm L, SAE 100R12

Lift

2шт.

33

47407588

HOSE,25.4mm ID x 1525mm L, SAE 100R12

Lift, WH

2шт.

34

627-10040

BOLT,Hex, M10 x 1.5 x 40mm, Cl 10.9, Full Thd

8шт.

35

84240210

CLAMP,16mm ID

2шт.
