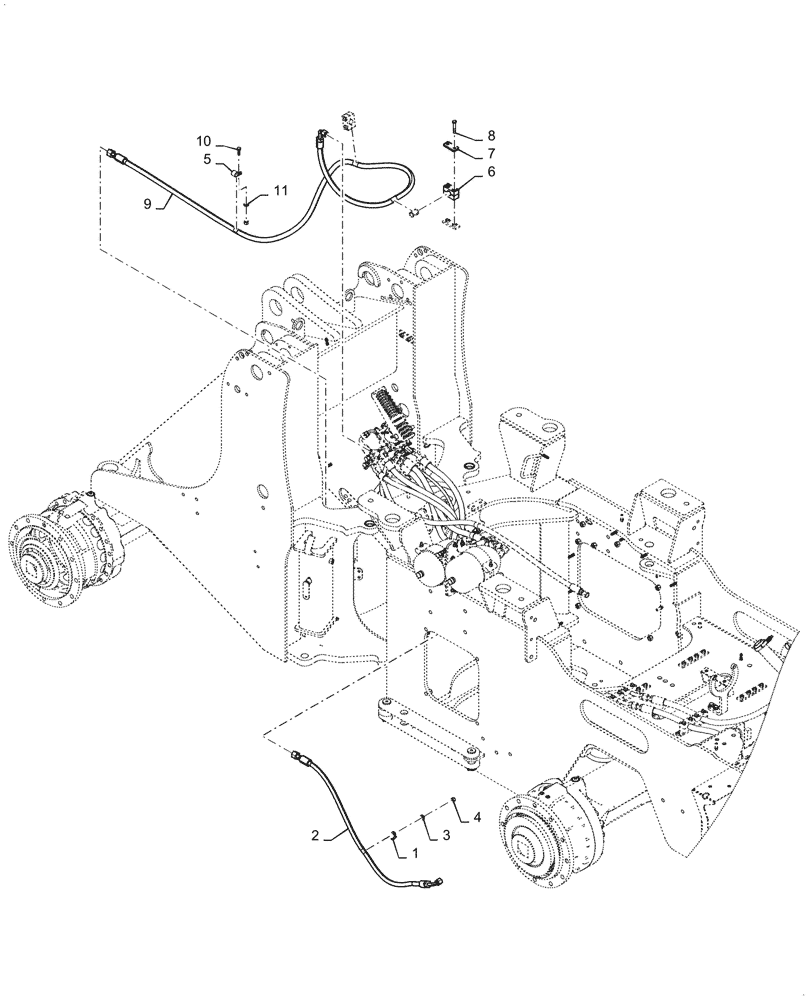

Запчасти Case 721G (33.202.020) - BRAKE LINE INSTALLATION, STANDARD (33) - BRAKES & CONTROLS

1

515-24238

CLAMP,15/16", Insul, 7/16" Bolt

1шт.

2

84240230

HOSE ASSY.

Rear Axle, Brake, 1087mm

1шт.

3

895-15010

WASHER,11mm ID x 24mm OD x 2mm Thk

1шт.

4

832-10410

NUT,M10 x 1.5, Cl 8

2шт.

5

515-24222

CLAMP,7/8", Insul, 7/16" Bolt

1шт.

6

367489A1

BLOCK

Tub Mounting

2шт.

7

367658A1

PLATE

Clamp Cover

1шт.

8

827-10060

BOLT,Hex, M10 x 1.5 x 60mm, Cl 10.9

2шт.

9

47865238

HOSE

Front Axle Brake, 2909mm

1шт.

10

614-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd

1шт.

11

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

1шт.
