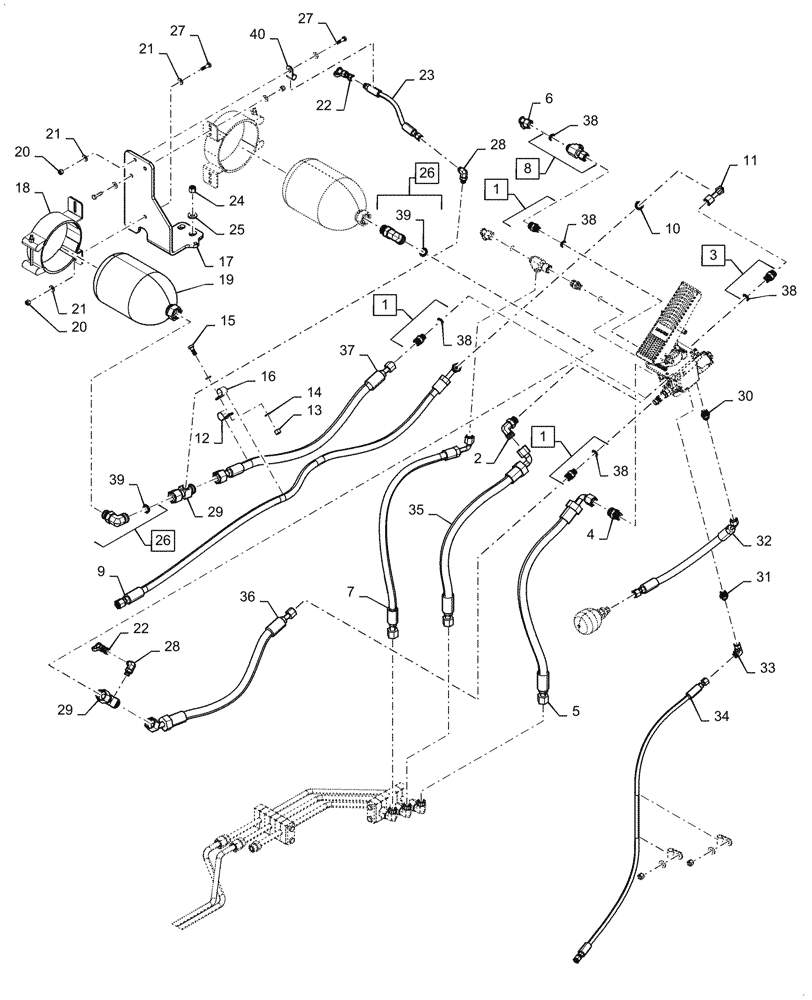

Запчасти Case 721G (33.202.010[03]) - MAIN HYDRAULIC BRAKE, ACCUMULATOR & LINES (33) - BRAKES & CONTROLS

1

700-169

HYD CONNECTOR,13/16" - 16 Male ORFS x M16 x 1.5 Male ORB

Incl 38

4шт.

2

700-306

ELBOW,90 Degree Elbow, 1" - 14 Male ORFS x M22 x 1.5 Male ORB

1шт.

3

700-102

HYD CONNECTOR,13/16" - 16 Male ORFS x M18 x 1.5 Male ORB

Incl 38

1шт.

4

700-103

HYD CONNECTOR,1" - 14 Male ORFS x M22 x 1.5 Male ORB

1шт.

5

47857574

HOSE

Brake Valve Discharge

1шт.

6

190316A1

COUPLING

2шт.

7

47857570

HOSE

Brake Rear Supply

1шт.

8

701-416

TEE,13/16" - 16 Male ORFS x 13/16" - 16 Male ORFS x 13/16" - 16 Female ORFS

Incl 38

2шт.

9

47857577

HOSE

Return Brake to Tank

1шт.

10

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

11

47672852

TUBE

Brake to Tank

1шт.

12

515-24238

CLAMP,15/16", Insul, 7/16" Bolt

1шт.

13

832-10410

NUT,M10 x 1.5, Cl 8

1шт.

14

895-18010

WASHER,10.5mm ID x 18mm OD x 1.6mm Thk

2шт.

15

627-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

1шт.

16

515-24206

CLAMP,13/16", Insul, 7/16" Bolt

1шт.

17

47857657

BRACKET

Brake Accumulator

1шт.

18

8501315

CLAMP,167mm - 175mm

2шт.

19

87728740

ACCUMULATOR

Service Brake

2шт.

20

832-10408

NUT,M8 x 1.25, Cl 8.8

5шт.

21

895-15008

WASHER,9mm ID x 20mm OD x 1.6mm Thk

10шт.

22

190117A1

COUPLING

2шт.

23

47884382

HOSE

Remote Test Port

1шт.

24

832-10412

NUT,M12 x 1.75, Cl 8

3шт.

25

896-15012

WASHER,13.5mm ID x 28mm OD x 4mm Thk

3шт.

26

700-307

ELBOW,90 Degree Elbow, 1-3/16" - 12 Male ORFS x M27 x 2 Male ORB

Incl 39

2шт.

27

627-8030

BOLT,Hex, M8 x 1.25 x 30mm, Cl 10.9, Full Thd

2шт.

28

700-378

ELBOW,90 Degree Elbow, 9/16" - 18 Male ORFS x M14 x 1.5 Male ORB

2шт.

29

372033A1

FITTING

2шт.

30

700-157

HYD CONNECTOR,11/16" - 16 Male ORFS x M16 x 1.5 Male ORB

1шт.

31

84294527

HYD CONNECTOR,M16 x 1.5 ORB x 9/16" - 18 ORFS

1шт.

32

47857576

HOSE

Parking Brake Accumulator

1шт.

33

701-329

ELBOW,90 Degree Elbow, 9/16" - 18 Male ORFS x 9/16" - 18 Female ORFS

1шт.

34

47670335

HOSE

Parking Brake

1шт.

35

47884137

HOSE

Brake Valve Inlet

1шт.

36

47857573

HOSE

Brake Front Acc

1шт.

37

47857575

HOSE

Brake Rear Acc

1шт.

38

70923841

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

39

70923843

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

1шт.

40

515-25159

CLAMP,5/8", Insul, 1/2" Bolt

1шт.
