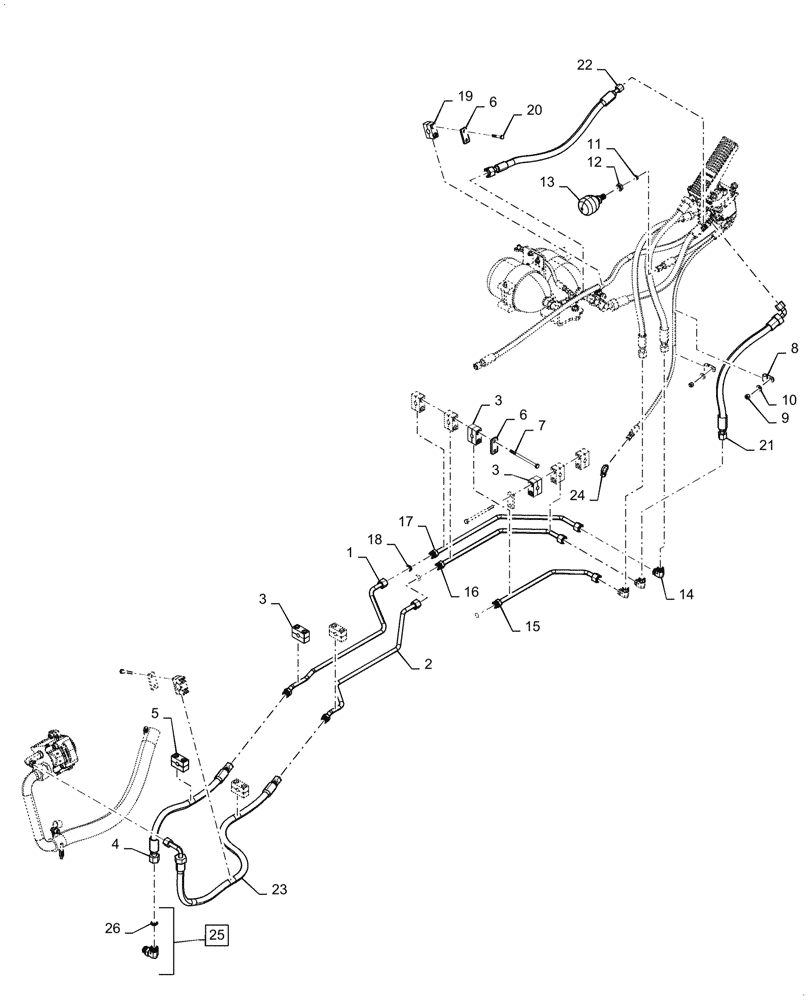

Запчасти Case 721G (33.202.010[02]) - MAIN HYDRAULIC BRAKE, LINES (33) - BRAKES & CONTROLS

1

84382796

HYD TUBE

Fan Control

1шт.

2

84382798

HYD TUBE

Pump Pressure

1шт.

3

8500210

CLAMP

8шт.

4

84421910

HOSE ASSY.,15.88mm ID x 667mm L, SAE 100R17

1шт.

5

367489A1

BLOCK

2шт.

6

367658A1

PLATE

3шт.

7

827-10150

BOLT,Hex, M10 x 1.5 x 150mm, Cl 10.9

4шт.

8

515-25159

CLAMP,5/8", Insul, 1/2" Bolt

2шт.

9

832-10410

NUT,M10 x 1.5, Cl 8

2шт.

10

895-15010

WASHER,11mm ID x 24mm OD x 2mm Thk

2шт.

11

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

12

701-909

NUT,11/16" - 16

1шт.

13

8500209

ACCUMULATOR

Parking Brake

1шт.

14

701-340

ELBOW,90 Degree Elbow, 1" - 14 Male ORFS x 1" - 14 Male ORFS

3шт.

15

47700926

TUBE

Rear Axle

1шт.

16

47763539

TUBE

Brake Supply

1шт.

17

47763460

TUBE

Fan Supply

1шт.

18

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

3шт.

19

8501052

SPECIAL CLAMP

1шт.

20

827-10060

BOLT,Hex, M10 x 1.5 x 60mm, Cl 10.9

2шт.

21

47884137

HOSE

Brake Valve Inlet

1шт.

22

47857575

HOSE

Brake Rear Acc

1шт.

23

47490120

HOSE

Brake Front Acc

1шт.

24

701-329

ELBOW,90 Degree Elbow, 9/16" - 18 Male ORFS x 9/16" - 18 Female ORFS

1шт.

25

700-307

ELBOW,90 Degree Elbow, 1-3/16" - 12 Male ORFS x M27 x 2 Male ORB

Incl, 26

1шт.

26

70923843

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

1шт.
