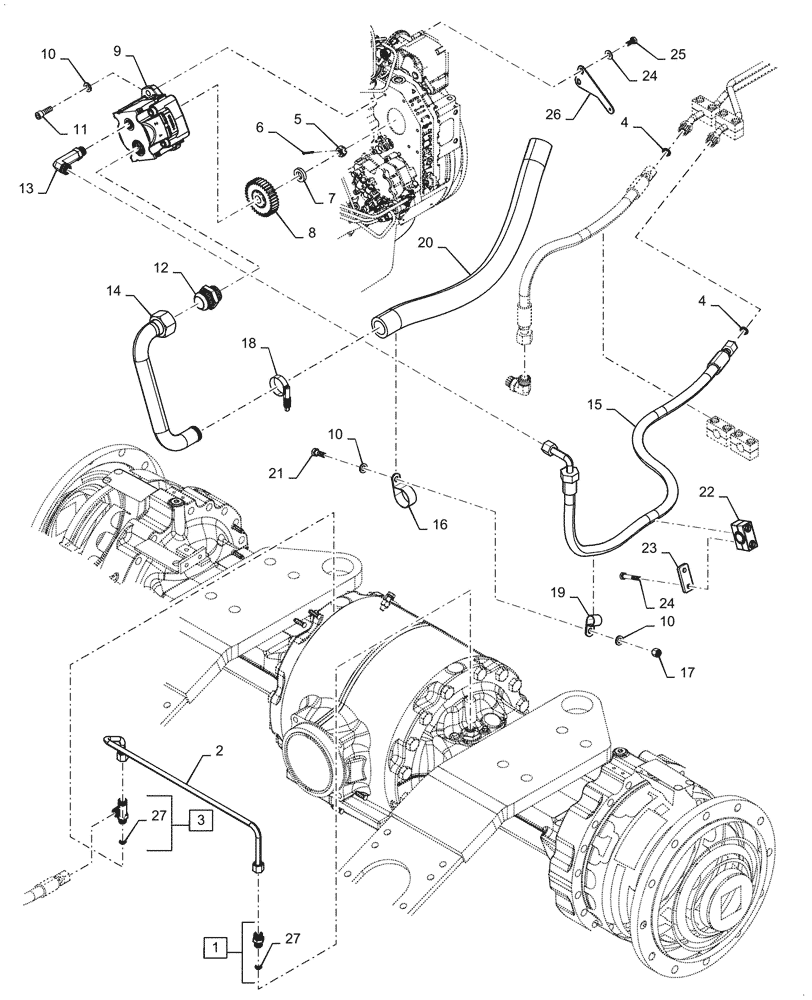

Запчасти Case 721G (33.202.010[01]) - MAIN HYDRAULIC BRAKE PUMP & LINES (33) - BRAKES & CONTROLS

1

700-102

HYD CONNECTOR,13/16" - 16 Male ORFS x M18 x 1.5 Male ORB

Incl, 27

1шт.

2

84304028

HYD TUBE

Front Axle

1шт.

3

700-412

TEE,13/16" - 16 Male ORFS x 13/16" - 16 Male ORFS x M18 x 1.5 Male ORB

Incl, 27

1шт.

4

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

2шт.

5

425-1310

SLOTTED NUT,5/8"-18, G5

1шт.

6

733-3232

COTTER PIN,M3.2 x 32

1шт.

7

87373112

WASHER,20mm ID x 36mm OD x 7.5mm Thk

1шт.

8

87389871

GEAR

Accessory Drive

1шт.

9

47526503

HYDRAULIC PUMP

25cc Gear

1шт.

10

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

4шт.

11

864-12035

HEX SOC SCREW,M12 x 35mm, Cl 8.8

2шт.

12

87555427

HYD CONNECTOR

1шт.

13

84129708

ELBOW

1шт.

14

87554993

RIGID TUBE,28 mm ID x 38 mm OD x 310, 105 mm L

1шт.

15

47490120

HOSE

Brake Pump Pressure

1шт.

16

515-25254

CLAMP,1", Insul, 1/2" Bolt

1шт.

17

832-10412

NUT,M12 x 1.75, Cl 8

1шт.

18

254026A1

HOSE CLAMP,44.45mm - 66.67mm

2шт.

19

515-25508

CLAMP,2", Insul, 1/2" Bolt

1шт.

20

84399712

FLEXIBLE HOSE

Brake Pump Suction

1шт.

21

627-12030

BOLT,Hex, M12 x 1.75 x 30mm, Cl 10.9, Full Thd

1шт.

22

372453A1

BLOCK

1шт.

23

367658A1

PLATE

1шт.

24

827-10060

BOLT,Hex, M10 x 1.5 x 60mm, Cl 10.9

4шт.

25

627-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 10.9, Full Thd

2шт.

26

47542869

PLATE

1шт.

27

70923841

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.
