Запчасти Case 621G (25.102.040) - VAR - 424235 - FRONT LOCKING DIFFERENTIAL HOSE INSTALLATION (25) - FRONT AXLE SYSTEM

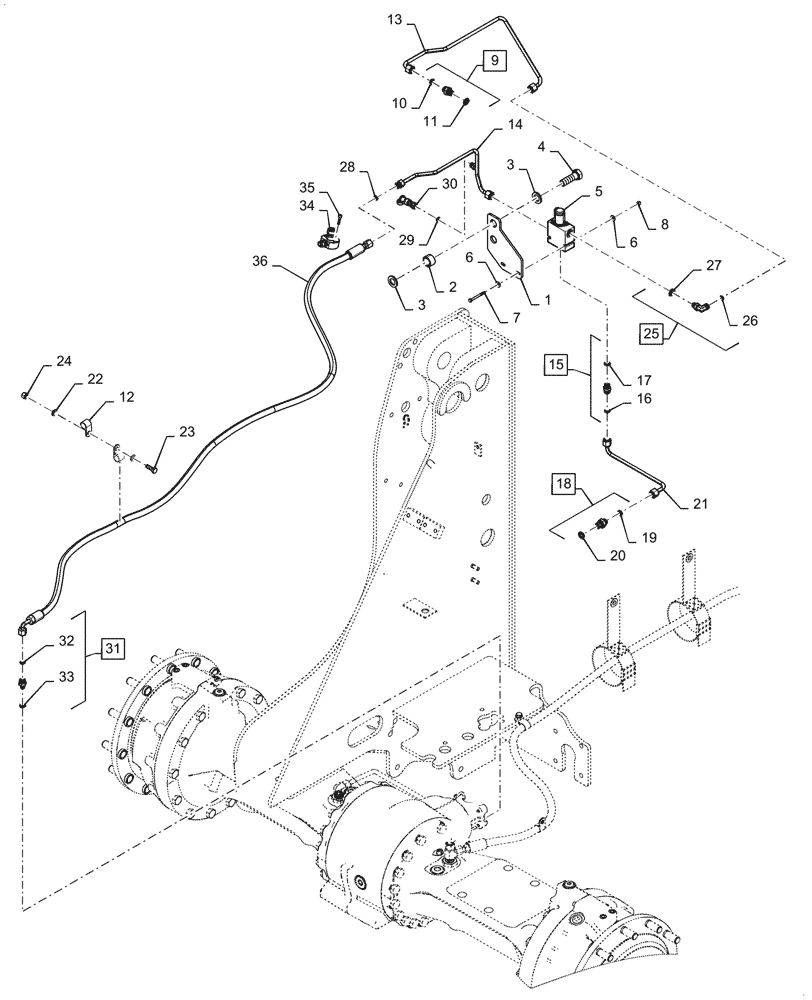

Схема запчастей Case 621G - (25.102.040) - VAR - 424235 - FRONT LOCKING DIFFERENTIAL HOSE INSTALLATION (25) - FRONT AXLE SYSTEM
27
29
33
28
4
21
35
24
6
1
23
8
18
19
26
31
25
16
14
34
7
36
17
30
3
20
10
12
6
2
9
3
13
15
5
11
32
22

Артикул

Название

Примечание

Количество

1

84415308

BRACKET

Differential Locking Valve

1шт.

2

87036419

SPACER,26.64mm ID x 33.4mm OD x 19.05mm L

2шт.

3

896-11020

WASHER,22mm ID x 37mm OD x 4mm Thk

4шт.

4

627-20060

BOLT,Hex, M20 x 2.5 x 60mm, Cl 10.9, Full Thd

2шт.

5

84300976

LOCK VALVE

Differential

1шт.

6

895-25006

WASHER,6.6mm ID x 18mm OD x 1.6mm Thk

4шт.

7

827-6060

BOLT,Hex, M6 x 60mm, Cl 10.9

2шт.

8

832-10406

NUT,M6 x 1, Cl 8

2шт.

9

700-157

HYD CONNECTOR,11/16" - 16 Male ORFS x M16 x 1.5 Male ORB

Incl 10, 11

1шт.

10

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

11

637-63113

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

1шт.

12

515-24222

CLAMP,7/8", Insul, 7/16" Bolt

2шт.

13

84414911

TUBE

Assy, Diff Lock Press

1шт.

14

84481260

RIGID TUBE

Assy, Diff Lock Axle Press

1шт.

15

700-101

HYD CONNECTOR,11/16" - 16 Male ORFS x M14 x 1.5 Male ORB

Incl 16, 17

2шт.

16

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

17

637-63113

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

1шт.

18

700-106

HYD CONNECTOR,11/16" - 16 Male ORFS x M18 x 1.5 Male ORB

Incl 19, 20

1шт.

19

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

20

637-63113

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

1шт.

21

84492784

TUBE

Diff Lock Return

1шт.

22

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

2шт.

23

627-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd

1шт.

24

832-10410

NUT,M10 x 1.5, Cl 8

1шт.

25

700-304

ELBOW,90 Degree Elbow, 11/16" - 16 Male ORFS x M14 x 1.5 Male ORB

Incl 26, 27

1шт.

26

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

27

637-63113

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

1шт.

28

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

29

238-6011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

1шт.

30

190117A1

COUPLING

Diagnostic

1шт.

31

700-165

HYD CONNECTOR,11/16" - 16 Male ORFS x M12 x 1.5 Male ORB

Incl 32, 33

1шт.

32

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

33

637-63093

O-RING,2.2mm Thk x 9.3mm ID, Cl 6, 90 Duro

1шт.

34

84313033

DIFF LOCK SWITCH

Switch, Foot

1шт.

35

864-6025

HEX SOC SCREW,M6 x 25mm, Cl 8.8

2шт.

36

84412663

HOSE

Diff Lock Axle Press

1шт.

Выбрано товаров: 36
