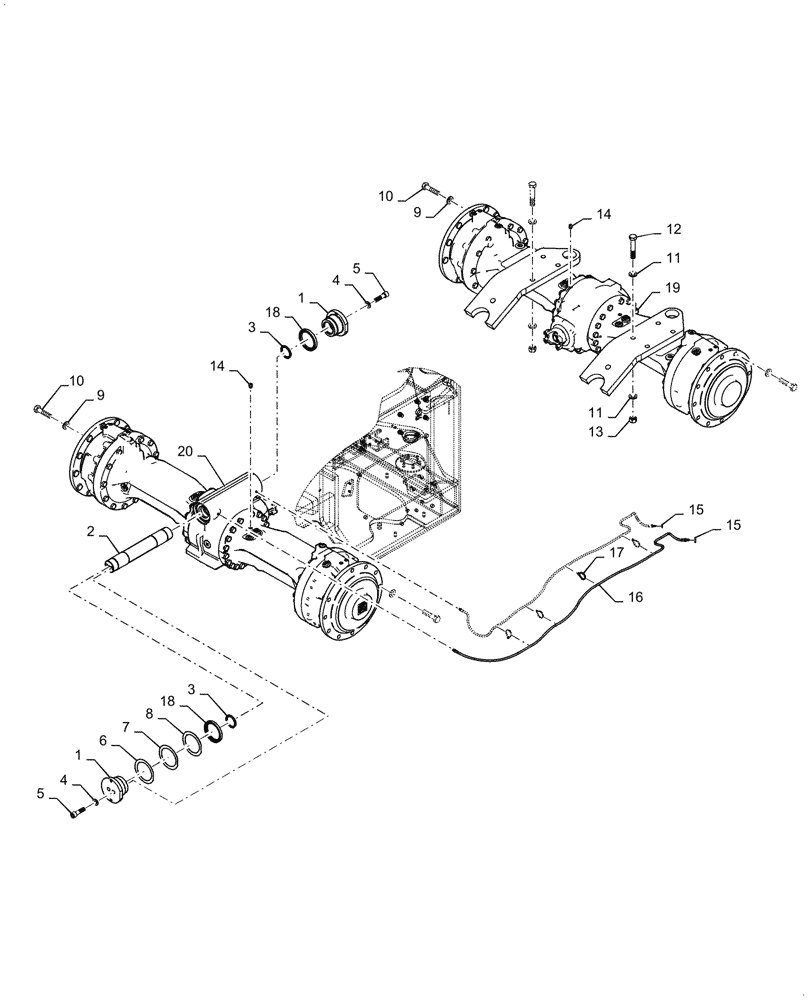

Запчасти Case 621G (25.102.020) - VAR - 782122 - STANDARD FRONT AND REAR AXLE INSTALLATION (25) - FRONT AXLE SYSTEM

1

87731989

PIVOT

End Cap

2шт.

2

47893482

PIN

Pivot

1шт.

3

238-5232

O-RING,0.139" Thk x 2.734" ID, -232, Cl 5, 75 Duro

2шт.

4

896-11020

WASHER,22mm ID x 37mm OD x 4mm Thk

4шт.

5

863-20070

HEX SOC SCREW,M20 x 70mm, 12.9

4шт.

6

8500053

SHIM,112.5mm ID x 147mm OD x 0.5mm Thk

1шт.

7

8500054

SHIM,112.5mm ID x 147mm OD x 1mm Thk

1шт.

8

8500055

SHIM,112.5mm ID x 147mm OD x 1.5mm Thk

1шт.

9

896-11022

WASHER,24mm ID x 44mm OD x 4mm Thk

48шт.

10

514-1315

BOLT,Hex, M22 x 1.5 x 50mm, Cl 10.9

48шт.

11

896-11024

WASHER,26mm ID x 44mm OD x 5mm Thk

16шт.

12

827-24130

BOLT,Hex, M24 x 3 x 130mm, Cl 10.9

8шт.

13

829-1424

NUT,M24, Cl 10

8шт.

14

47566244

BREATHER

Valve

2шт.

15

F53473

LOCK NUT,1/8-27 NPSM

2шт.

16

84367443

HOSE

Grease Axle Bushing

2шт.

17

L11541

CABLE TIE,203.2mm L, Nylon

Strap

2шт.

18

84477326

SEAL,99.4mm ID x 127.17mm OD x 14.5mm Thk

Grease

2шт.

19

84355949

FRONT AXLE

Assy - Lmt Slip Grey

1шт.

20

47893528

AXLE

Assy - Lmt Slip Grey

1шт.
