(25.102.010) - VAR - 782122 - DIFFERENTIAL ASSEMBLY, STANDARD

Запчасти Case 621G (25.102.010) - VAR - 782122 - DIFFERENTIAL ASSEMBLY, STANDARD (25) - FRONT AXLE SYSTEM

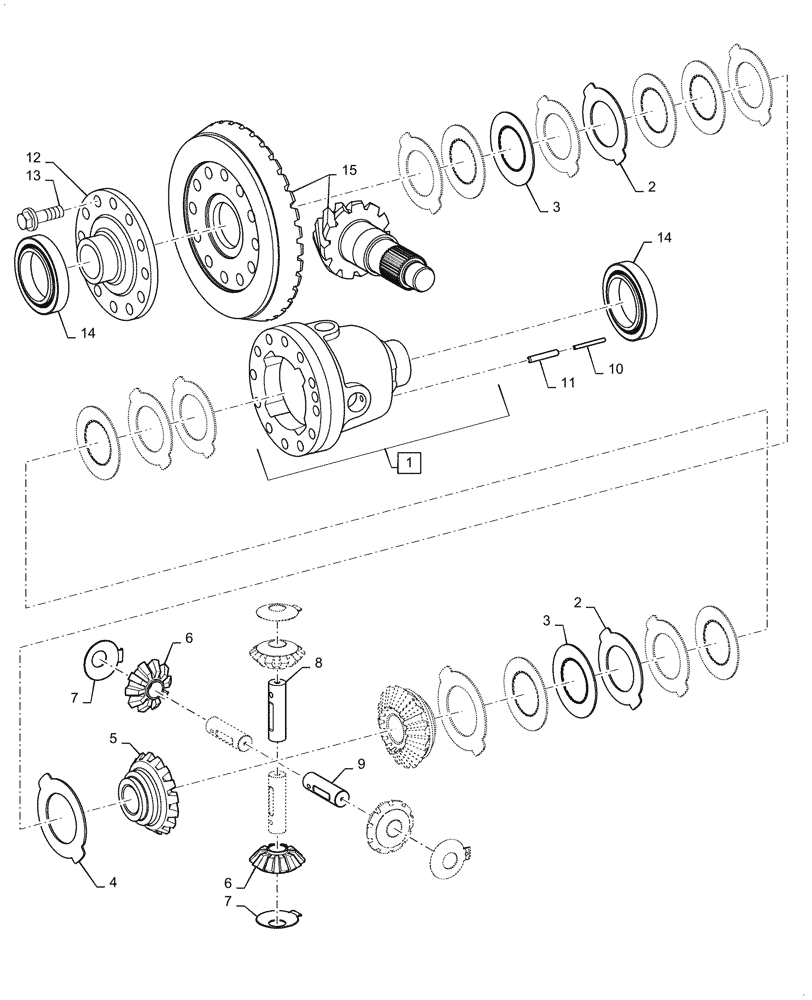

Схема запчастей Case 621G - (25.102.010) - VAR - 782122 - DIFFERENTIAL ASSEMBLY, STANDARD (25) - FRONT AXLE SYSTEM
7
14
3
11
10
9
13
5
15
2
2
14
7
12
8
1
6
3
4
6
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84496901

HOUSING

Differential Case

1шт.

2

87742939

CLUTCH PLATE

1.8mm Outer

1шт.

2

87742940

CLUTCH PLATE

1.9mm Outer

1шт.

2

87742941

DISC,Axle, Friction

2.0mm Outer

1шт.

3

87742942

CLUTCH DISC

Inner

8шт.

4

87742943

THRUST WASHER

Gear

2шт.

5

84496911

GEAR

Bevel Axle

2шт.

6

84496902

GEAR

Bevel Diff

4шт.

7

84496904

WASHER

Thrust

4шт.

8

84496905

SHAFT

Gear

1шт.

9

84496906

SHAFT

Short Pin

2шт.

10

84024216

LOCK PIN,5mm OD x 50mm L, Slotted

Differential Case Housing

2шт.

11

87742960

PIN

Differential Case Housing

2шт.

12

87742961

COVER

Housing

1шт.

13

184716A1

SCREW

Differential Housing

12шт.

14

8603222

ROLLER BEARING,65mm ID x 140mm OD x 36mm W

2шт.

15

84395480

BEVEL GEAR

Gear and Pinion, Serviced as a Set

1шт.
