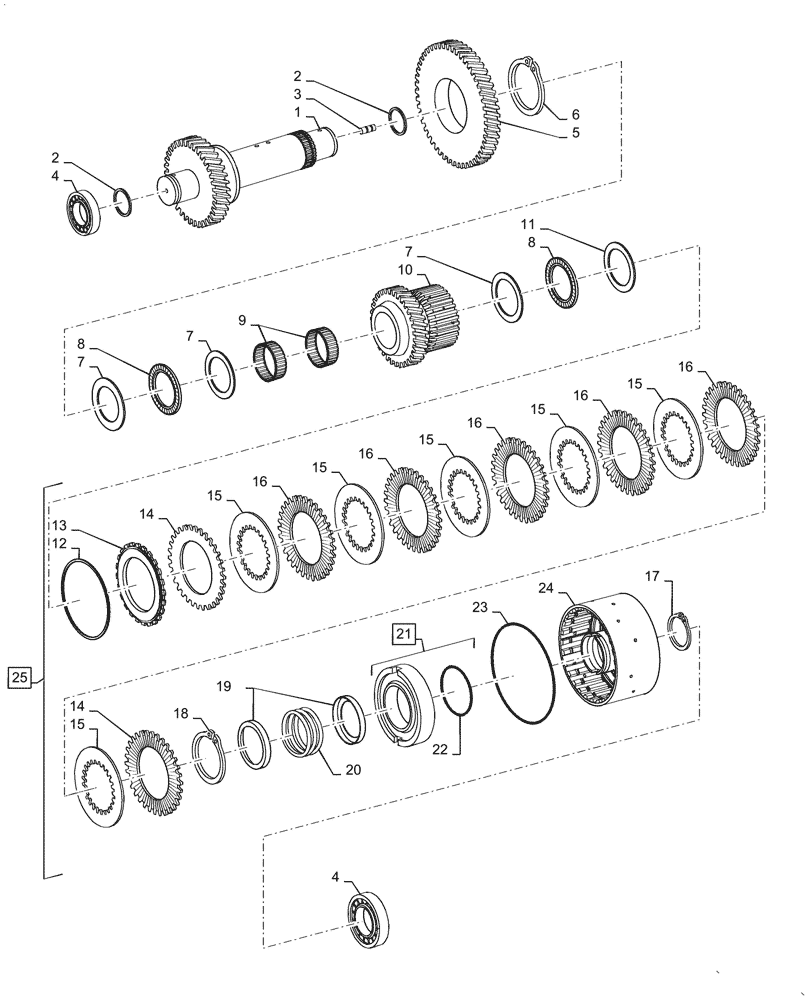

Запчасти Case 621G (21.155.010[07]) - VAR - 424224 - 4TH GEAR CLUTCH ASSEMBLY (21) - TRANSMISSION

1

84395235

SHAFT

Shaft, 4th Gear

1шт.

2

8603436

PISTON RING

Shaft Gear

2шт.

3

8603407

STUD

Shaft Gear

1шт.

4

84395186

ROLLER BEARING

Cup and Cone, Shaft Gear

2шт.

5

8603446

GEAR

Shaft RIng

1шт.

6

P0236317R

SNAP RING

Retaining

1шт.

7

8603440

THRUST WASHER

Shaft Gear

3шт.

8

8603439

THRUST BEARING

Shat Gear

2шт.

9

8603441

NEEDLE BEARING CAGE

Assembly, Shaft Gear

2шт.

10

8603447

IDLER GEAR

Clutch Assembly

1шт.

11

8603438

DISC

Idler Gear

1шт.

12

185446A1

RING, SNAP

2.1mm

1шт.

12

185439A1

RING, SNAP

2.25mm

1шт.

12

185442A1

RING, SNAP

2.4mm

1шт.

12

331424A1

SHIM

2.55mm

1шт.

12

331425A1

SHIM

2.7mm

1шт.

12

331426A1

SHIM

2.85mm

1шт.

12

331427A1

SHIM

3.0mm

1шт.

12

331428A1

SHIM

3.15mm

1шт.

12

331429A1

SHIM

3.3mm

1шт.

12

331430A1

SHIM,3.45mm Thk

1шт.

12

331431A1

SHIM

3.75mm

1шт.

12

331432A1

SHIM,3.75mm Thk

1шт.

12

331433A1

SHIM,3.9mm Thk

1шт.

13

331423A1

SHIM

End Cap, Clutch Plate

1шт.

14

331420A1

CLUTCH PLATE

End Cap

2шт.

15

331422A1

CLUTCH DISC

Inner

6шт.

16

331421A1

CLUTCH PLATE

Outer

5шт.

17

8603209

SNAP RING

Retaining

1шт.

18

933944R1

RING,52.88mm

1шт.

19

73142965

GUIDE

Spring Housing

2шт.

20

73142964

SPRING

Compression

1шт.

21

331417A1

JACK PISTON

Housing Pack, Incl 22, 23

1шт.

22

331418A1

O-RING

Housing Pack

1шт.

23

8479611

O-RING

Large, Housing Pack

1шт.

24

87712662

CARRIER

Clutch Housing

1шт.

25

87712657

COUPLING

Clutch Assembly, Incl 12 - 24

1шт.
