(21.155.010[03]) - DRIVE SHAFT, FRONT

Запчасти Case 621G (21.155.010[03]) - DRIVE SHAFT, FRONT (21) - TRANSMISSION

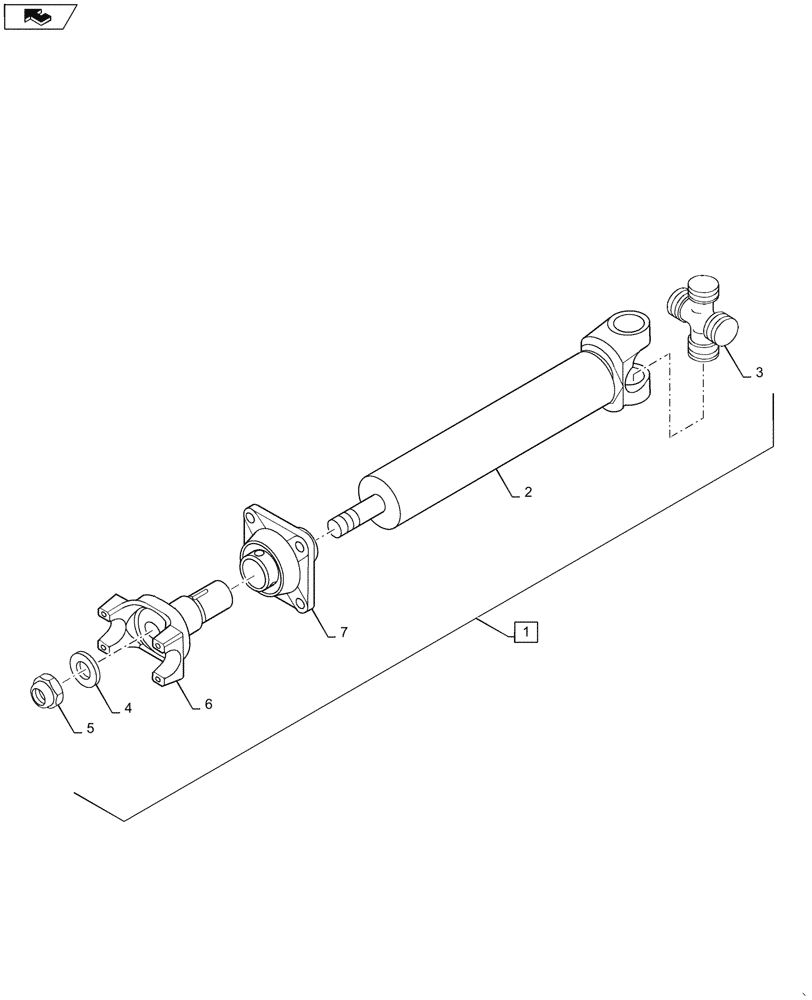

Схема запчастей Case 621G - (21.155.010[03]) - DRIVE SHAFT, FRONT (21) - TRANSMISSION
1
5
6
7
4
2
3
home
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87553865

DRIVE SHAFT

Front, Incl 2 - 7

1шт.

2

NSS

NOT SOLD SEPARAT

Tube, Driveshaft, Incl in 1

1шт.

3

8604675

BEARING ASSY

U-Joint Spider

1шт.

4

86637954

WASHER,1.06" ID x 2" OD x 0.21" Thk

1шт.

5

8604270

LOCK NUT

Yoke to Driveshaft

1шт.

6

87756354

YOKE

Front Driveshaft

1шт.

7

L106070

FLANGED BEARING

Front Driveshaft

1шт.

Выбрано товаров: 7
