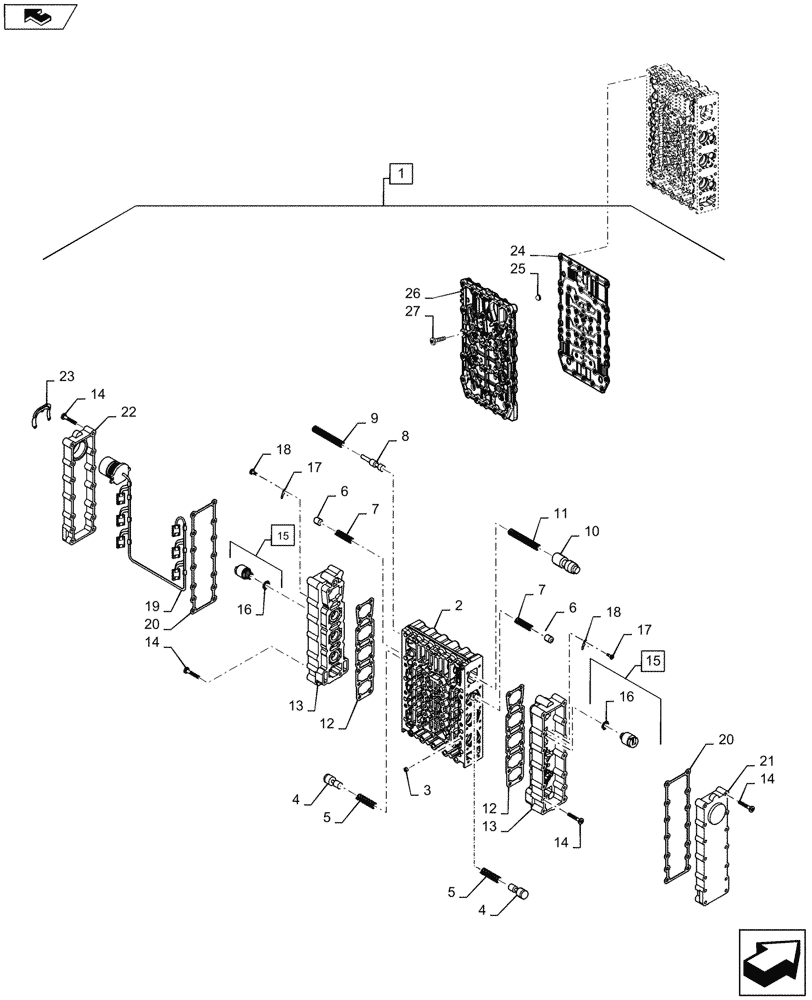

Запчасти Case 621G (21.135.010[01]) - TRANSMISSION CONTROL VALVE (21) - TRANSMISSION

1

87712671

CONTROL VALVE

Trasnmission Valve Block Assy, Incl 2 - 27

1шт.

2

87712666

BLOCK

Main Valve Body

1шт.

3

8603367

ORIFICE

Block Insert

6шт.

4

8603368

PLUNGER

Valve Control Insert

6шт.

5

8603369

SPRING

Compression, Valve Control

6шт.

6

8603370

PISTON

Valve Control Insert

6шт.

7

8603371

SPRING

Compression, Valve Control

6шт.

8

8603372

PISTON

Valve Control Insert

1шт.

9

8603374

SPRING

Compression, Valve Control

1шт.

10

8603623

PLUNGER

Valve Control Insert

1шт.

11

8603375

SPRING

Compression, Valve Control

1шт.

12

8603786

GASKET

Main Body to Side Cover Housing

2шт.

13

8603376

HOUSING

Side Cover

2шт.

14

47587050

SCREW

Captured

64шт.

15

8603624

REGULATING SYSTEM

Pressure Switch Assembly, Incl 16

6шт.

16

8603538

O-RING,13.5mm ID x 2mm Width

6шт.

17

8603218

PLATE

Fixing, Main Valve Body

6шт.

18

8603359

SCREW

Main Valve Body

6шт.

19

8603625

WIRE HARNESS

Transmission Valve Assembly

1шт.

20

87453965

GASKET

Side Cover to Side Housing

2шт.

21

8603360

COVER

Side Housing

1шт.

22

8603361

COVER

Side Housing

1шт.

23

8603362

CLAMP

Retaining

1шт.

24

87712667

PLATE

Valve housing

1шт.

25

8603363

SCREEN

Valve Plate Insert

6шт.

26

8603628

PLATE

Main Valve Housing

1шт.

27

47587054

SCREW

Mounting Hardware for Main Valve Housing Plate

18шт.
