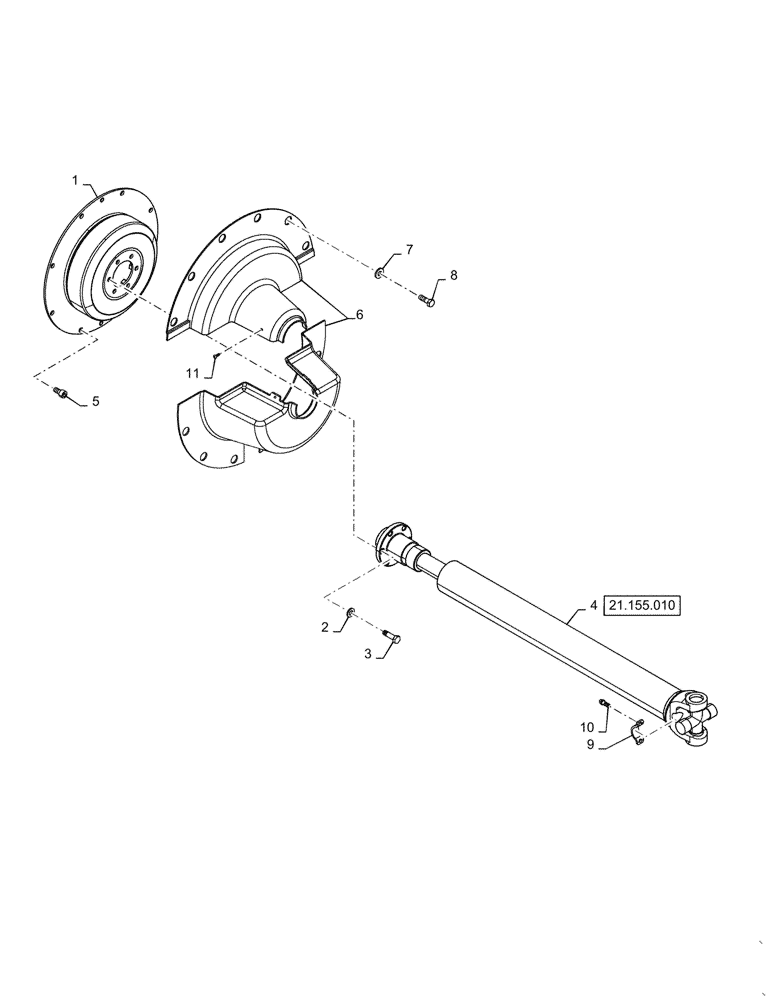

Запчасти Case 621G (21.113.010[01]) - INPUT SHAFT INSTALLATION (21) - TRANSMISSION

1

87553867

COUPLING

Flywheel to Driveshaft

1шт.

2

896-11010

WASHER,11mm ID x 21mm OD x 2.5mm Thk

6шт.

3

84349423

LOCK BOLT,Hex, M10 x 35mm, Cl 10.9

6шт.

4

87475345

DRIVE SHAFT

Input

1шт.

5

863-10020

HEX SOC SCREW,M10 x 20mm, Cl 12.9

8шт.

6

87522101

COVER

Dust, Set, Upper and Lower

1шт.

7

896-15010

WASHER,11mm ID x 24mm OD x 3mm Thk

11шт.

8

806-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9

11шт.

9

D137626

CLAMP,30.175mm D Clamping Pipe

Input Shaft Installation

2шт.

10

D137627

BOLT,Hex Flg, 5/16" - 24 x 19.05mm

4шт.

11

760-14113

SELF-TAP SCREW,Pan Hd, M3.5 x 13

2шт.
