Запчасти Case 621G (10.500.010[01]) - DEF/ADBLUE LINES (10) - ENGINE

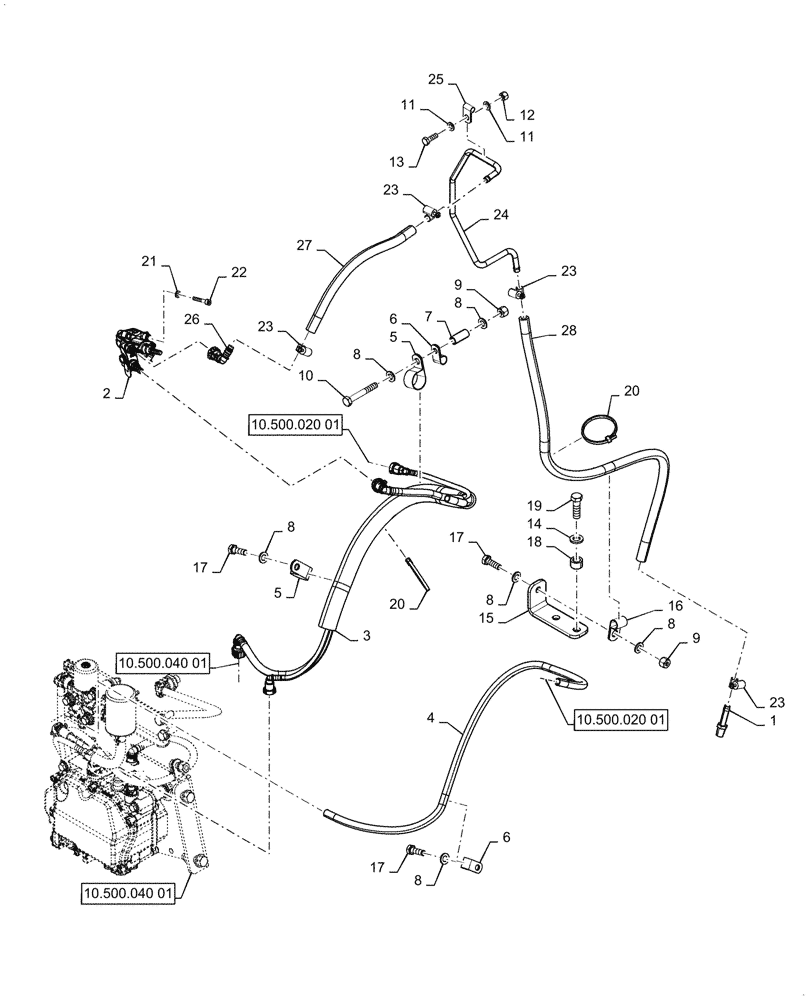

Схема запчастей Case 621G - (10.500.010[01]) - DEF/ADBLUE LINES (10) - ENGINE
10.500.040 01
28
23
11
15
8
24
23
11
19
5
8
20
23
17
17
14
6
26
5
9
23
21
7
16
10
9
6
18
8
17
2
22
8
8
13
12
3
8
4
1
25
20
27
10.500.020 01
10.500.020 01
10.500.040 01

Артикул

Название

Примечание

Количество

1

217-151

FITTING,3/8" Hose Barb x 1/4" Male NPTF

1шт.

2

47506932

INJECTOR, EMISSIONS

DEF

1шт.

3

47581990

HOSE

DEF Bundle, Supply Module to Dosing Module

1шт.

4

84606228

HOSE

Coolant Valve to Dosing Module, 856mm Lg

1шт.

5

515-24317

CLAMP,1 1/4", Insul, 7/16" Bolt

2шт.

6

515-23143

CLAMP,9/16", Insul, 3/8" Bolt

2шт.

7

L126936

SPACER

11mm x 14.6mm OD x 34mm, Plated

1шт.

8

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

6шт.

9

832-10410

NUT,M10 x 1.5, Cl 8

2шт.

10

827-10070

BOLT,Hex, M10 x 1.5 x 70mm, Cl 10.9

1шт.

11

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

4шт.

12

832-10408

NUT,M8 x 1.25, Cl 8.8

2шт.

13

627-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd

2шт.

14

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

2шт.

15

84606040

BRACKET

Coolant Hose Routing

1шт.

16

515-25159

CLAMP,5/8", Insul, 1/2" Bolt

1шт.

17

627-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd

3шт.

18

D44696

BUSHING

1/2" Pipe x 1/2" Lg

2шт.

19

627-12040

BOLT,Hex, M12 x 1.75 x 40mm, Cl 10.9, Full Thd

2шт.

20

L11541

CABLE TIE,203.2mm L, Nylon

2шт.

21

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

3шт.

22

120162

HEX SOC SCREW,M6 x 35mm, Cl 8.8

3шт.

23

214-1406

HOSE CLAMP,#06, 0.44" - 0.78", Type F Worm

4шт.

24

47542925

TUBE

Coolant Return

1шт.

25

515-2395

CLAMP,3/8", Insul, 3/8" Bolt

2шт.

26

47405903

FITTING

Coolant Hose

1шт.

27

47601712

HOSE

Coolant Return, 320mm Lg

1шт.

28

47601714

HOSE

Coolant Return, 991mm Lg

1шт.

Выбрано товаров: 28
