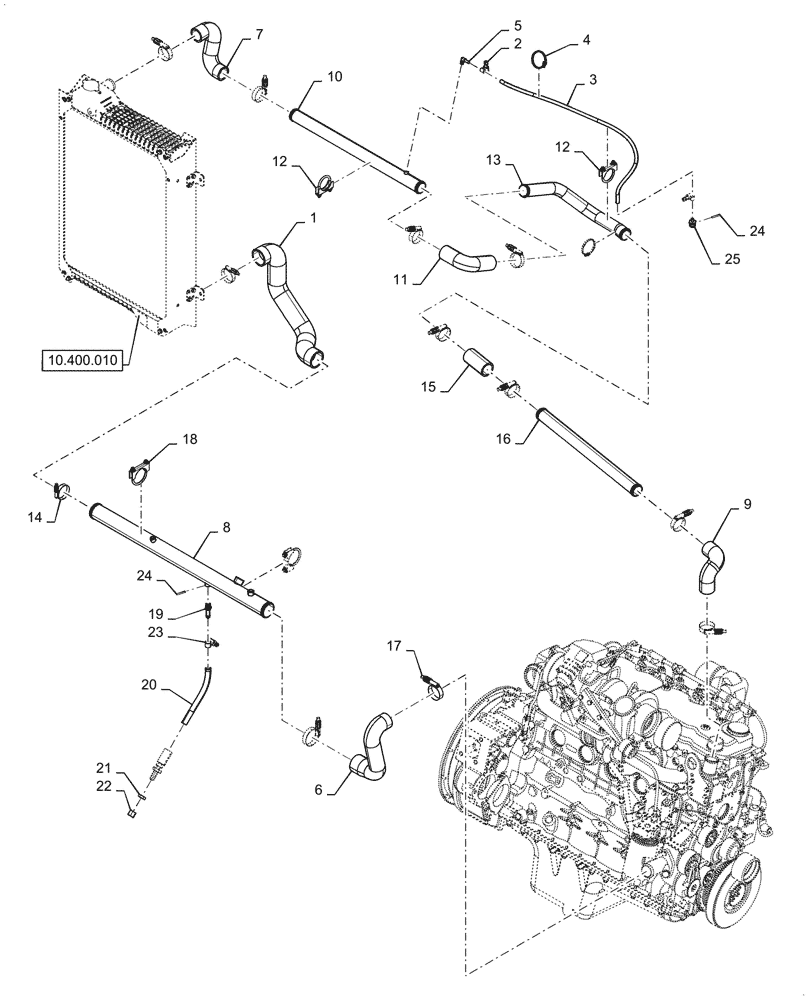

Запчасти Case 621G (10.400.040[01]) - COOLING SYSTEM LINE INSTALLATION (10) - ENGINE

1

87552485

HOSE

Radiator, Bottom

1шт.

2

214-1704

HOSE CLAMP,#04, 0.25" - 0.62", Type M Worm

2шт.

3

87552499

HOSE,6.40 mm ID x 1150.00 mm

Breather

1шт.

4

L11541

CABLE TIE,203.2mm L, Nylon

2шт.

5

217-292

FITTING,90 Degree Elbow, 1/4" Hose Barb x 1/8" Male NPTF

1шт.

6

8500084

HOSE,48.00 mm ID, 57.20 mm ID x 235.00 mm, SAE 20R4 Class D1

Engine, Bottom

1шт.

7

8500083

RADIATOR HOSE,44.50 mm ID x 165,105,79,61 mm, SAE 20R4 CLASS D1

Radiator, Top

1шт.

8

47803571

TUBE

Bottom, Coolant, 57.2mm x 908mm

1шт.

9

84596599

RADIATOR HOSE

Engine to Top Coolant

1шт.

10

84293052

TUBE

Top, Coolant, SD, 44.5mm x 668mm

1шт.

10

84293050

TUBE

Top, Coolant, HD, 44.5mm x 738mm

1шт.

11

84293049

HOSE

Elbow, 90 Degree

1шт.

12

382189A1

CLAMP

U-Bolt

2шт.

13

47377570

TUBE

Top, Coolant, 44.5mm

1шт.

14

L115548

CLAMP,57.15mm - 79.38mm

3шт.

15

8501025

FLEXIBLE HOSE,44.50 mm ID x 110.00 mm, SAE 20R4 Class D1

Coolant Split

1шт.

16

87617019

HYD TUBE,41.2 mm ID x 44.5 mm OD x 513 mm L

Top, Coolant

1шт.

17

254026A1

HOSE CLAMP,44.45mm - 66.67mm

9шт.

18

393632A1

CLAMP

U-Bolt

2шт.

19

217-152

FITTING,1/2" Hose Barb x 3/8" Male NPTF

1шт.

20

87536091

HOSE ASSY.

Coolant Drain, 30.00mm x 330.00mm

1шт.

21

218-1255

BHD LOCK NUT,Blkhd, 3/4"-16

1шт.

22

218-755

CAP,37 Degree, 3/4"-16

1шт.

23

214-1410

HOSE CLAMP,#10, 0.56" - 1.06", Type F Worm

1шт.

24

345-87

SEALANT

Loctite 592

1шт.

25

87635840

VALVE

Check Valve, Venting

1шт.
