Запчасти Case 621G (90.120.010[01]) - VAR - 734062, 734072 - SEAT, MECHANICAL SUSPENSION SERVICE PARTS (90) - PLATFORM, CAB, BODYWORK AND DECALS

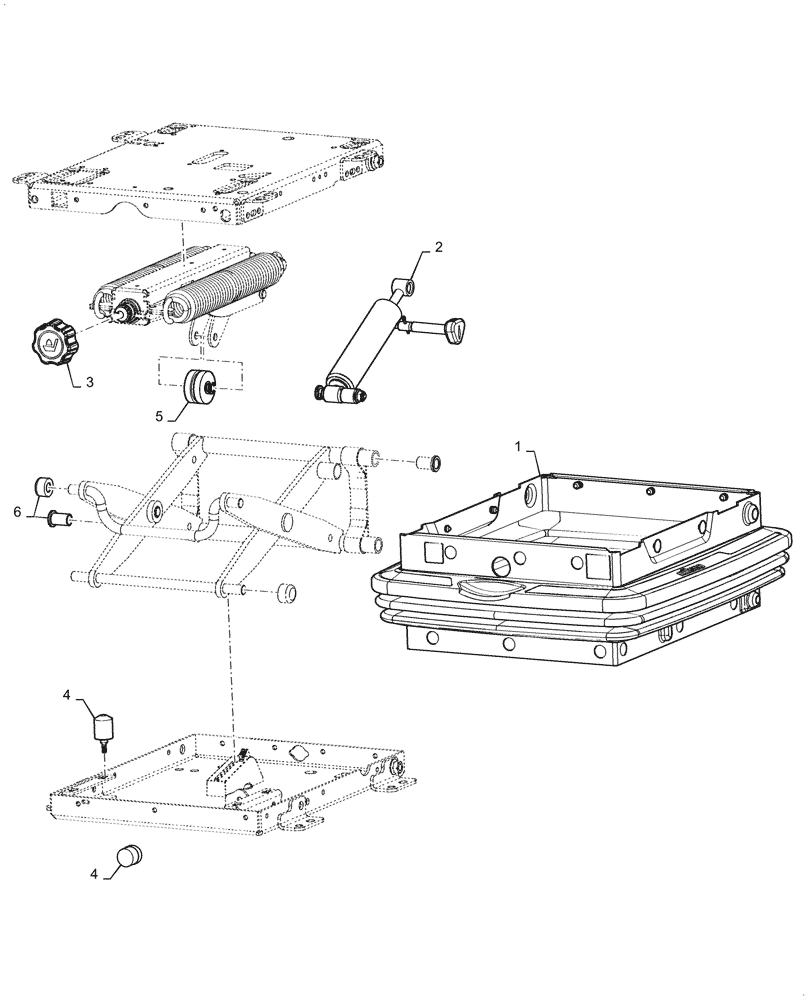

Схема запчастей Case 621G - (90.120.010[01]) - VAR - 734062, 734072 - SEAT, MECHANICAL SUSPENSION SERVICE PARTS (90) - PLATFORM, CAB, BODYWORK AND DECALS
1
4
5
6
4
2
3

Артикул

Название

Примечание

Количество

1

48046583

Service Kit, Boot Service

KIT

1шт.

1

NSS

NOT SOLD SEPARAT

Boot, Incl in Service Kit 1

1шт.

1

NSS

NOT SOLD SEPARAT

Christmas Tree Clip, Incl in Service Kit 1

21шт.

1

NSS

NOT SOLD SEPARAT

Christmas Tree Clip, Small, Incl in Service Kit 1

2шт.

2

48046584

Service Kit, Damper Service

KIT

1шт.

2

NSS

NOT SOLD SEPARAT

Damper, Variable, Incl in Service Kit 2

1шт.

2

NSS

NOT SOLD SEPARAT

Shaft, Damper Extension, Incl in Service Kit 2

1шт.

2

NSS

NOT SOLD SEPARAT

Knob, Damper, Incl in Service Kit 2

1шт.

2

NSS

NOT SOLD SEPARAT

Cotter Pin, Incl in Service Kit 2

1шт.

2

NSS

NOT SOLD SEPARAT

Main Damper Bearing, Incl in Service Kit 2

1шт.

2

NSS

NOT SOLD SEPARAT

Main Damper Bearing, Bottom, Incl in Service Kit 2

1шт.

2

NSS

NOT SOLD SEPARAT

Flange Nut M8 x 1.25, Incl in Service Kit 2

1шт.

2

NSS

NOT SOLD SEPARAT

Retaining Ring, Incl in Service Kit 2

1шт.

2

NSS

NOT SOLD SEPARAT

Christmas Tree Clip, Incl in Service Kit 2

21шт.

2

NSS

NOT SOLD SEPARAT

Christmas Tree Clip, Small, Incl in Service Kit 2

2шт.

3

48046585

Service Kit, Knob Service

KIT

1шт.

3

NSS

NOT SOLD SEPARAT

Weight Adjust Knob, Incl in Service Kit 3

1шт.

3

NSS

NOT SOLD SEPARAT

Slotted Spring Pin, Incl in Service Kit 3

1шт.

4

48046586

Service Kit, Bumper Service

KIT

1шт.

4

NSS

NOT SOLD SEPARAT

Bumper, Incl in Service Kit 4

2шт.

4

NSS

NOT SOLD SEPARAT

Bumper Threaded, Incl in Service Kit 4

1шт.

4

NSS

NOT SOLD SEPARAT

Hex Nut, M6 x 1, Incl in Service Kit 4

1шт.

4

NSS

NOT SOLD SEPARAT

Christmas Tree Clip, Incl in Service Kit 4

21шт.

4

NSS

NOT SOLD SEPARAT

Christmas Tree Clip, Small, Incl in Service Kit 4

2шт.

5

48046587

Service Kit, Roller Service

KIT

1шт.

5

NSS

NOT SOLD SEPARAT

Roller, Incl in Service Kit 5

1шт.

5

NSS

NOT SOLD SEPARAT

Roller Pin, Incl in Service Kit 5

1шт.

5

NSS

NOT SOLD SEPARAT

Retaining Ring, Incl in Service Kit 5

1шт.

5

NSS

NOT SOLD SEPARAT

Christmas Tree Clip, Incl in Service Kit 5

21шт.

5

NSS

NOT SOLD SEPARAT

Christmas Tree Clip, Small, Incl in Service Kit 5

2шт.

6

48046588

Service Kit, Roller Brush Service.

KIT

1шт.

6

NSS

NOT SOLD SEPARAT

Roller, Incl in Service Kit 6

4шт.

6

NSS

NOT SOLD SEPARAT

Flange Bearing, Incl in Service Kit 6

4шт.

6

NSS

NOT SOLD SEPARAT

Christmas Tree Clip, Incl in Service Kit 6

21шт.

6

NSS

NOT SOLD SEPARAT

Christmas Tree Clip, Small, Incl in Service Kit 6

2шт.

Выбрано товаров: 35
