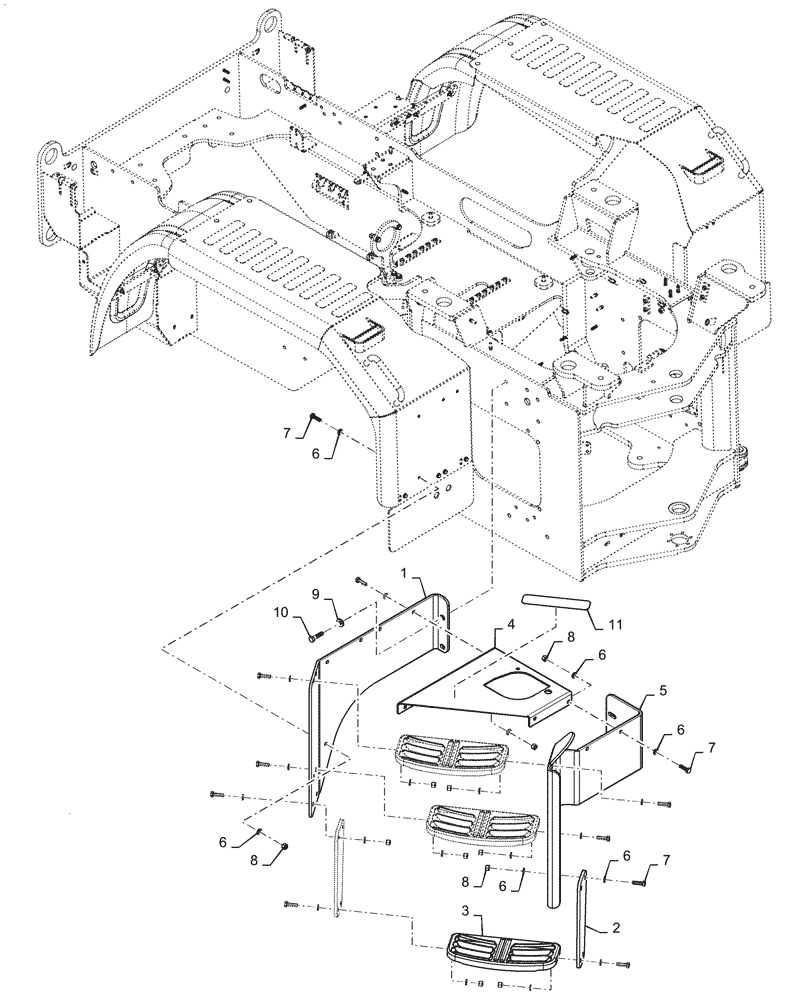

Запчасти Case 621G (90.118.020) - RIGHT SIDE STEP INSTALLATION (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

47900888

SUPPORT

Rear Step

1шт.

2

47894712

STRAP

Bottom Step

2шт.

3

47639539

STEP

3шт.

4

47901287

PLATFORM

Steps

1шт.

5

47900898

SUPPORT

Front Step

1шт.

6

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

46шт.

7

627-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 10.9, Full Thd

23шт.

8

832-10410

NUT,M10 x 1.5, Cl 8

23шт.

9

896-15012

WASHER,13.5mm ID x 28mm OD x 4mm Thk

4шт.

10

627-12045

BOLT,Hex, M12 x 1.75 x 45mm, Cl 10.9, Full Thd

4шт.

11

D55216

PAD,2" x 9"

Non-Slip

1шт.
