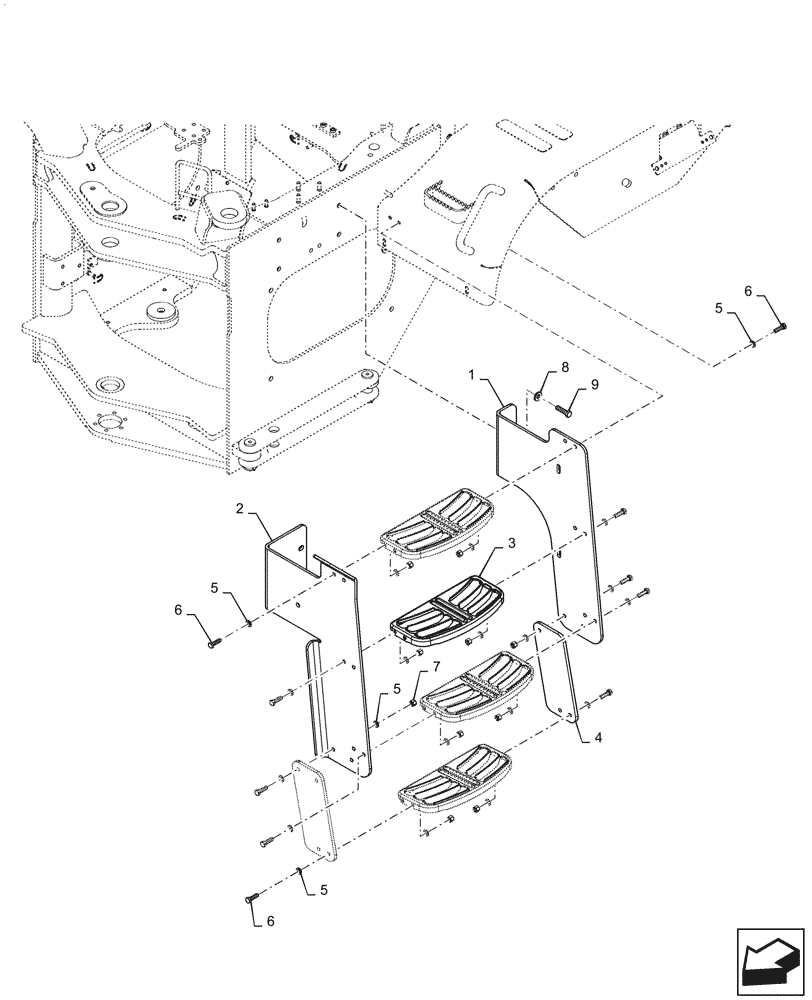

Запчасти Case 621G (90.118.010) - VAR - 782509, 782510, 782511 - STEP, LEFT SIDE (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

84191114

BRACKET, SUPPORTING

Front, CE Gray, LH Step

1шт.

2

87749267

BRACKET

Rear, CE Gray, LH Step

1шт.

3

47639539

STEP

Assembly, CE Gray

4шт.

4

87749270

STRAP

Lower Entry

2шт.

5

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

40шт.

6

627-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 10.9, Full Thd

20шт.

7

832-10410

NUT,M10 x 1.5, Cl 8

20шт.

8

896-15012

WASHER,13.5mm ID x 28mm OD x 4mm Thk

4шт.

9

627-12045

BOLT,Hex, M12 x 1.75 x 45mm, Cl 10.9, Full Thd

4шт.
