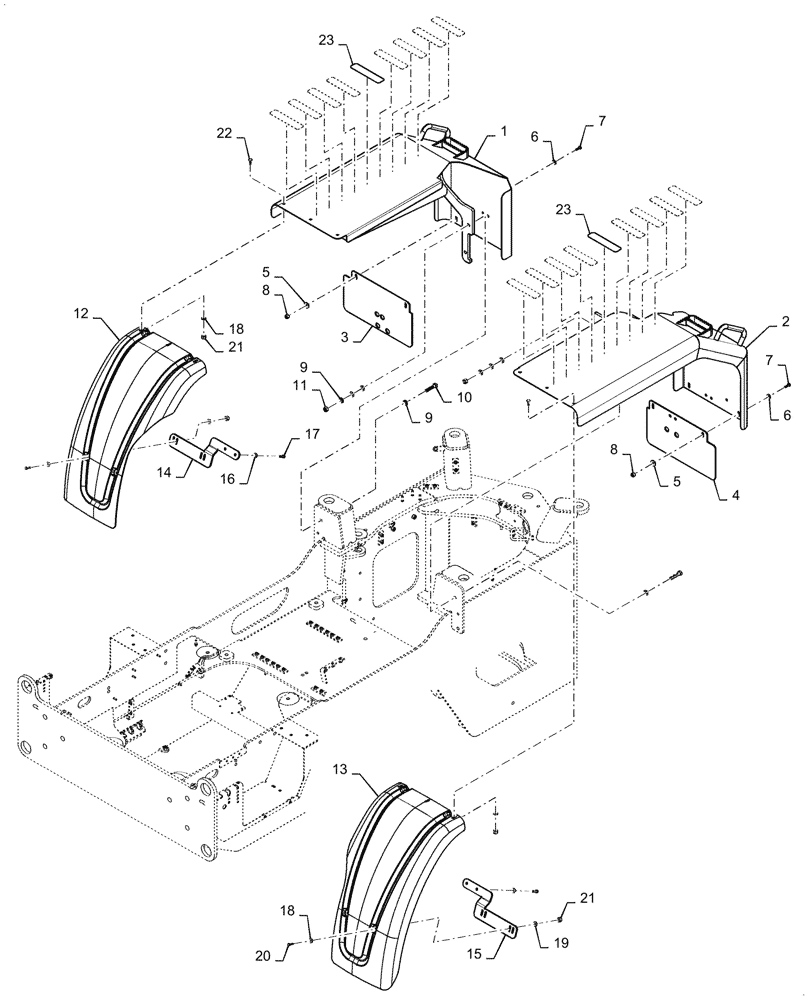

Запчасти Case 621G (90.116.110) - REAR FENDER WIDE (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

47902616

SUPPORT

LH Platform

1шт.

2

47901910

SUPPORT

RHPlatform

1шт.

3

87754710

MUDFLAP

Rear

1шт.

4

87559792

MUDFLAP

Rear

1шт.

5

39519

WASHER,10.31mm ID x 34.9mm OD x 3.57mm Thk

6шт.

6

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

6шт.

7

627-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd

6шт.

8

832-10410

NUT,M10 x 1.5, Cl 8

6шт.

9

896-11016

WASHER,17.5mm ID x 30mm OD x 4mm Thk

16шт.

10

827-16070

BOLT,Hex, M16 x 2 x 70mm, Cl 10.9

4шт.

11

829-1416

NUT,M16, Cl 10

4шт.

12

87559793

REAR FENDER

Wide Left

1шт.

13

87559794

REAR FENDER

Wide Right

1шт.

14

84349969

BRACKET, SUPPORTING

Fender, LH

1шт.

15

84349966

BRACKET, SUPPORTING

Fender, RH

1шт.

16

896-11010

WASHER,11mm ID x 21mm OD x 2.5mm Thk

4шт.

17

627-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 10.9, Full Thd

4шт.

18

895-25008

WASHER,9mm ID x 24mm OD x 2mm Thk

10шт.

19

895-25008

WASHER,9mm ID x 24mm OD x 2mm Thk

4шт.

20

627-8030

BOLT,Hex, M8 x 1.25 x 30mm, Cl 10.9, Full Thd

4шт.

21

832-10408

NUT,M8 x 1.25, Cl 8.8

10шт.

22

612-6

CARRIAGE BOLT,M8 x 30mm, Class 4.6

6шт.

23

D55216

PAD,2" x 9"

18шт.
