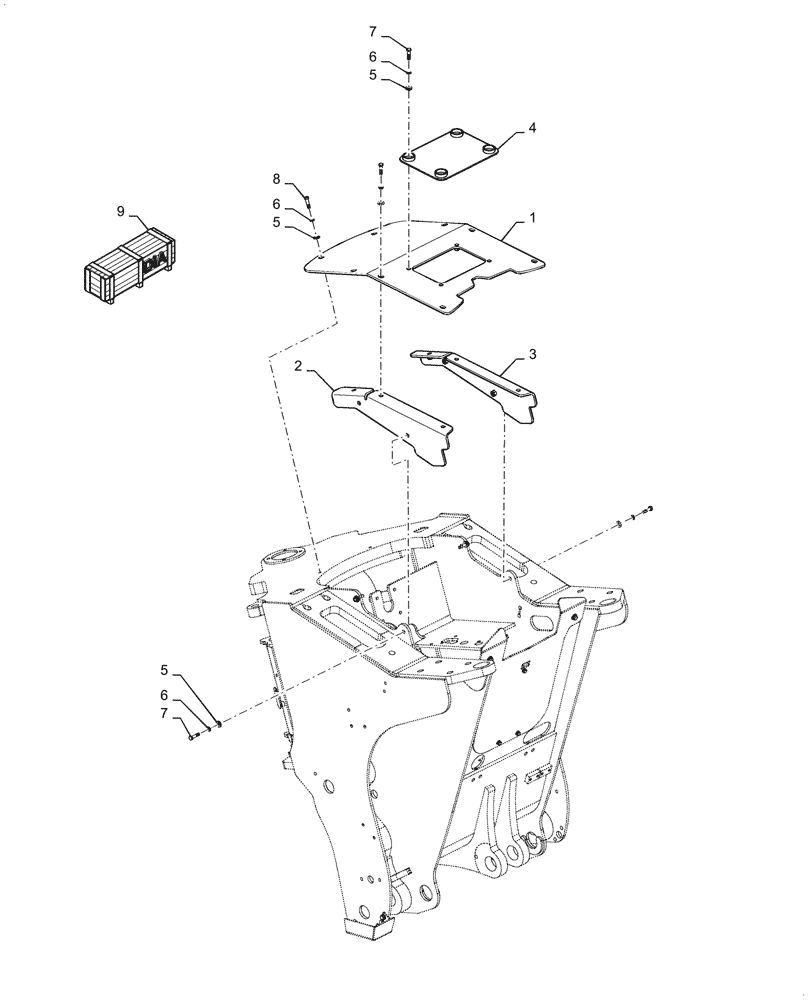

Запчасти Case 621G (90.116.080[01]) - FRONT CHASSIS GUARD (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

47839022

PLATE

Front Skid, CE Gray

1шт.

2

47400180

GUARD

Belly, LH, CE Gray

1шт.

3

47400184

GUARD

Belly, RH, CE Gray

1шт.

4

47400206

GUARD

Access, CE Gray

1шт.

5

896-15012

WASHER,13.5mm ID x 28mm OD x 4mm Thk

16шт.

6

892-11012

LOCK WASHER,M12

16шт.

7

627-12045

BOLT,Hex, M12 x 1.75 x 45mm, Cl 10.9, Full Thd

14шт.

8

827-12060

BOLT,Hex, M12 x 1.75 x 60mm, Cl 10.9

2шт.

9

47844070

DIA KIT, Skid & Fuel Tank Guards, Incl 1 - 8 Inst Sheet 47844082

KIT

1шт.
