(90.116.070[01]) - TRANSMISSION GUARD

Запчасти Case 621G (90.116.070[01]) - TRANSMISSION GUARD (90) - PLATFORM, CAB, BODYWORK AND DECALS

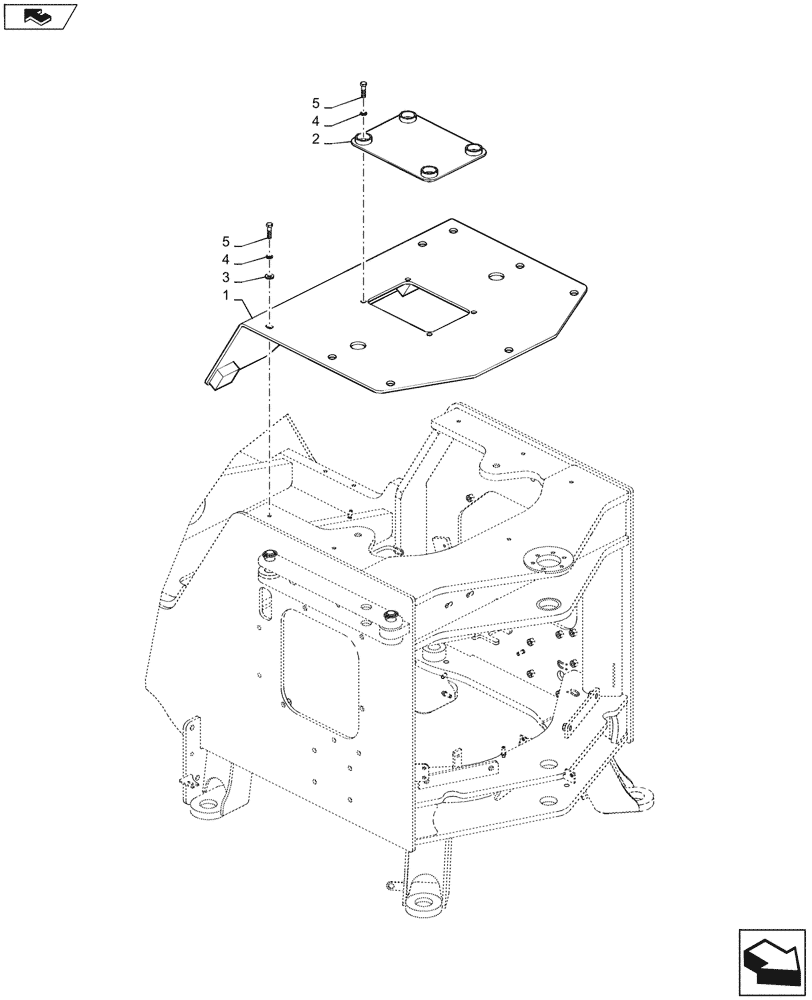

Схема запчастей Case 621G - (90.116.070[01]) - TRANSMISSION GUARD (90) - PLATFORM, CAB, BODYWORK AND DECALS
home
4
5
3
4
1
5
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

48028903

PLATE

Trans, Skid, CE Gray

1шт.

2

47400206

GUARD

Access, CE Gray

1шт.

3

896-15012

WASHER,13.5mm ID x 28mm OD x 4mm Thk

7шт.

4

892-11012

LOCK WASHER,M12

1шт.

5

627-12045

BOLT,Hex, M12 x 1.75 x 45mm, Cl 10.9, Full Thd

1шт.
