(90.116.060) - REAR SKID PLATE

Запчасти Case 621G (90.116.060) - REAR SKID PLATE (90) - PLATFORM, CAB, BODYWORK AND DECALS

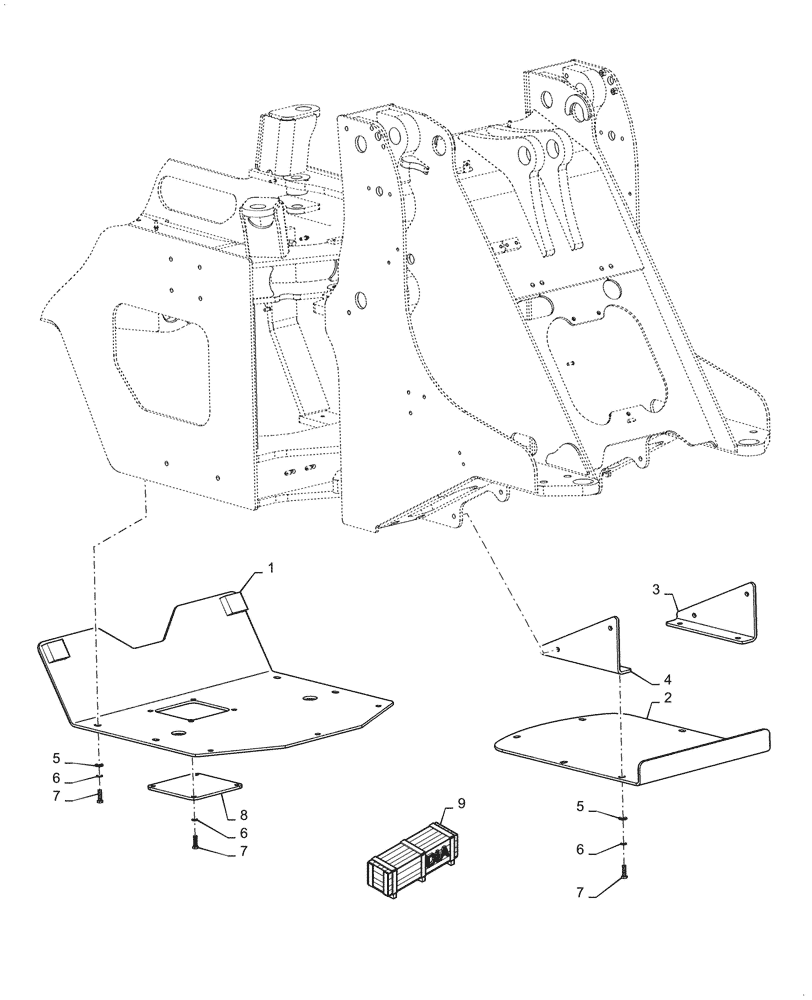

Схема запчастей Case 621G - (90.116.060) - REAR SKID PLATE (90) - PLATFORM, CAB, BODYWORK AND DECALS
5
4
7
6
6
1
5
2
7
6
8
3
9
7
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87598264

SKID PLATE

Rear

1шт.

2

47857561

PLATE

Front

1шт.

3

87597597

SKID PLATE

LH, Front

1шт.

4

87597598

SKID PLATE

RH, Front

1шт.

5

896-15012

WASHER,13.5mm ID x 28mm OD x 4mm Thk

17шт.

6

892-11012

LOCK WASHER,M12

21шт.

7

627-12045

BOLT,Hex, M12 x 1.75 x 45mm, Cl 10.9, Full Thd

21шт.

8

87598267

COVER

Transmission Drain

1шт.

9

47857702

DIA KIT, Skid Plate, Incl, 1 - 8, Inst Sheet 47857710

KIT

1шт.
